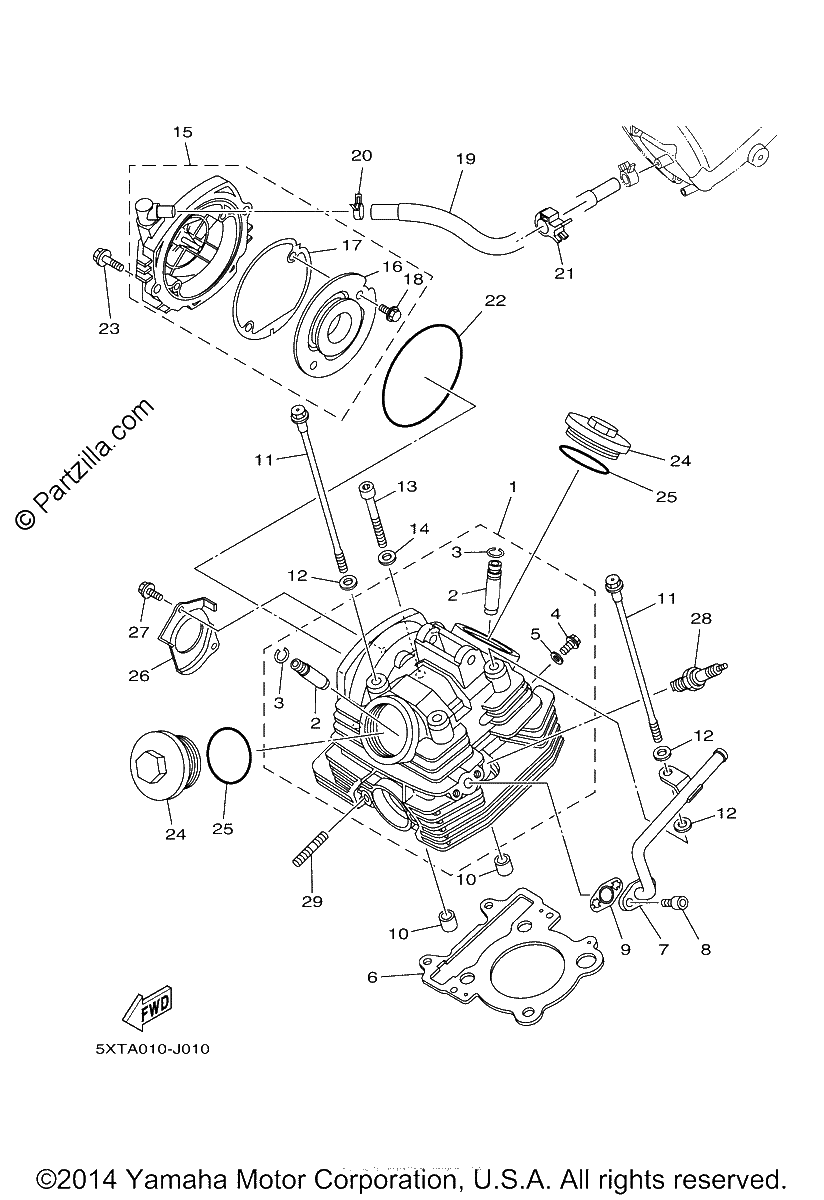

CYLINDER HEAD
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CYLINDER HEAD ASSY
$585.04¢292 520
#2
GUIDE, VALVE 1
$67.76¢33 879
#3
CIRCLIP
$6.75¢3 375
#4
SCREW, HEXAGON
$6.89¢3 444
#5
GASKET
$7.59¢3 795
#6
GASKET, CYLINDER HEAD 1
$44.37¢22 184
#7
PIPE 1
$64.87¢32 436
#8
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
#9
GASKET
$5.21¢2 605
#10
PIN, DOWEL
$3.51¢1 754
#11
BOLT, FLANGE
$8.14¢4 071
#12
WASHER, PLATE
$3.75¢1 874
#13
BOLT, HEXAGON SOCKET HEAD
$7.45¢3 726
#14
WASHER, PLATE
$4.09¢2 047
#15
COVER, CYLINDER HEAD 1
$97.98¢48 990
#16
PLATE, BREATHER
$9.80¢4 899
#17
GASKET, CYLINDER HEAD SIDE
$7.28¢3 640
#18
BOLT, FLANGE
$5.97¢2 984
#19
PIPE, BREATHER 1
$53.35¢26 674
#20
CLIP,SCISSOR (replaces 90467-12053-00)
$5.75¢2 875
#21
CLAMP
$6.75¢3 375
#22
O-RING
$12.74¢6 371
#23
BOLT, FLANGE (SMALL HEAD)
$4.91¢2 455
#24
COVER, CYLINDER HEAD SIDE 2
$43.49¢21 746
#25
O-RING
$6.22¢3 111
#26
PLATE
$19.83¢9 913
#27
BOLT, FLANGE
$3.29¢1 644
#28
PLUG, SPARK (NGK DR7EA) | WITH RESISTER
$4.43¢2 214
#29
BOLT, STUD
$5.30¢2 651
