CRANKSHAFT PISTON

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

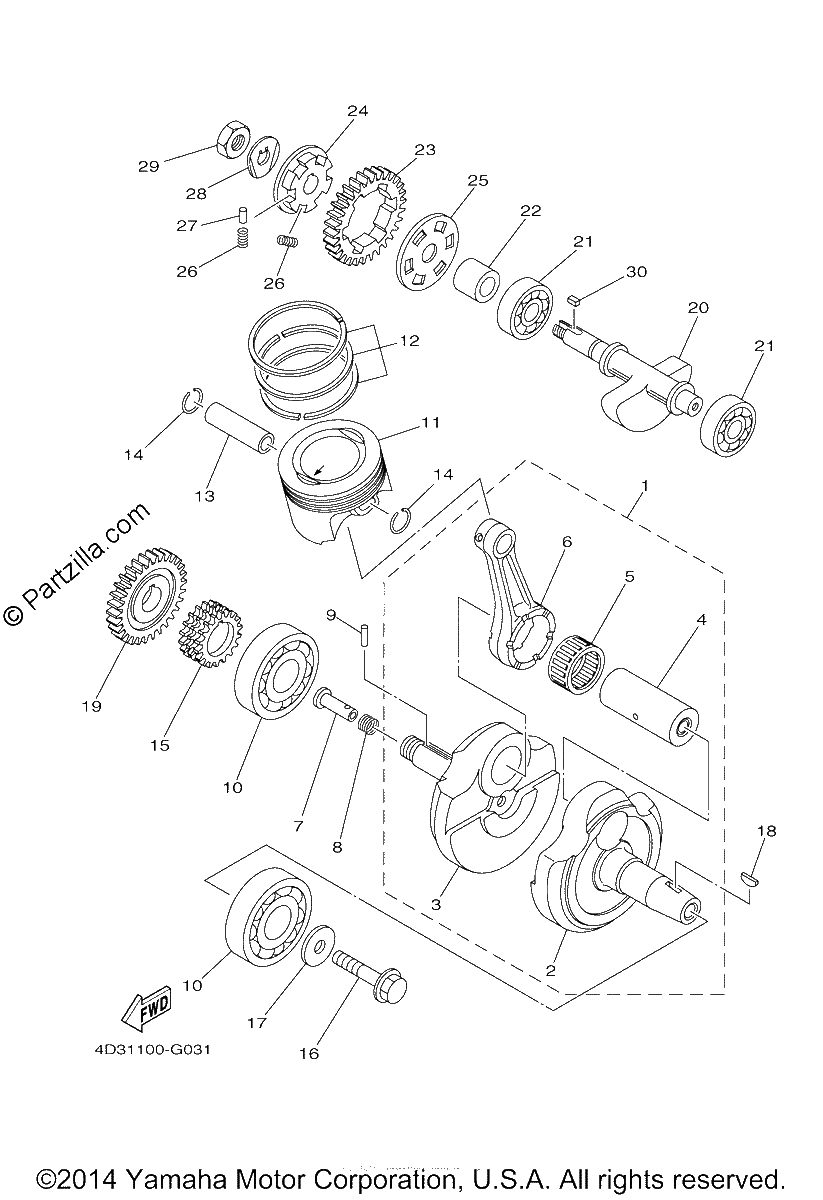

Diagrama de CRANKSHAFT PISTON

Repuestos

#1
4D3-11400-00-00
Crankshaft Assy
$580.95¢290 473
1
#2
4D3-11412-00-00
CRANK 1
$192.85¢96 427
1
#3
4D3-11422-00-00
CRANK 2
$202.42¢101 212
1
#4
1S4-11681-00-00
PIN, CRANK 1
$75.29¢37 645
1
#5
93310-63239-00
BEARING
$96.98¢48 490
1
#6
1S4-11651-00-00
ROD, CONNECTING
$80.40¢40 198
1
#7
90240-07105-00
PIN,CLEVIS
$15.64¢7 820
1
#8
90501-07629-00
SPRING,COMPRESSION
$7.77¢3 887
1
#9
93602-13177-00
PIN,DOWEL
$2.40¢1 202
1
#10
93306-37814-00
BEARING
$94.85¢47 426
1
#11
1S4-11631-10-A0
PISTON (Std)
$88.54¢44 269
1
#12
4XV-11603-00-00
PISTON RING SET (S
$40.88¢20 441
1
#13
4XV-11633-00-00
Pin, Piston
$27.83¢13 915
1
#14
90468-12069-00
Clip
$7.30¢3 651
1
#15
5BP-11549-00-00
SPROCKET, CAM CHAIN
$79.17¢39 583
1
#16
90105-10430-00
BOLT,WASHER BASED
$9.58¢4 790
1
#17
90201-105A2-00
WASHER,PLATE (replaces 90201-102R1-00)
$7.57¢3 783
1
#18
90280-05001-00
KEY, WOODRUFF (replaces 90280-05048-00)
$12.91¢6 457
1
#19
1S4-11536-10-00
GEAR, DRIVE
$105.73¢52 866
1
#20
5XT-11454-00-00
WEIGHT 1
$76.00¢38 002
1
#21
93306-30214-00
BEARING
$45.63¢22 816
1
#22
5XT-11478-00-00
Collar
$11.64¢5 819
1
#23
1S4-11531-10-00
GEAR, BALANCE WEIGHT
$105.02¢52 509
1
#24
5XT-11496-00-00
BOSS, BUFFER
$67.47¢33 735
1
#25
5XT-11533-00-00
PLATE, ABSORBER
$14.17¢7 084
1
#26
90501-22721-00
SPRING,COMPRESSION
$8.79¢4 393
1
#27
93605-10090-00
PIN,DOWEL
$6.09¢3 048
1
#28
90215-12272-00
WASHER,LOCK
$11.38¢5 693
1
#29
90170-12370-00
NUT,HEXAGON
$19.41¢9 706
1
#30
90282-05065-00
KEY,STRAIGHT (replaces 90282-05013-00)
$8.20¢4 100
1
