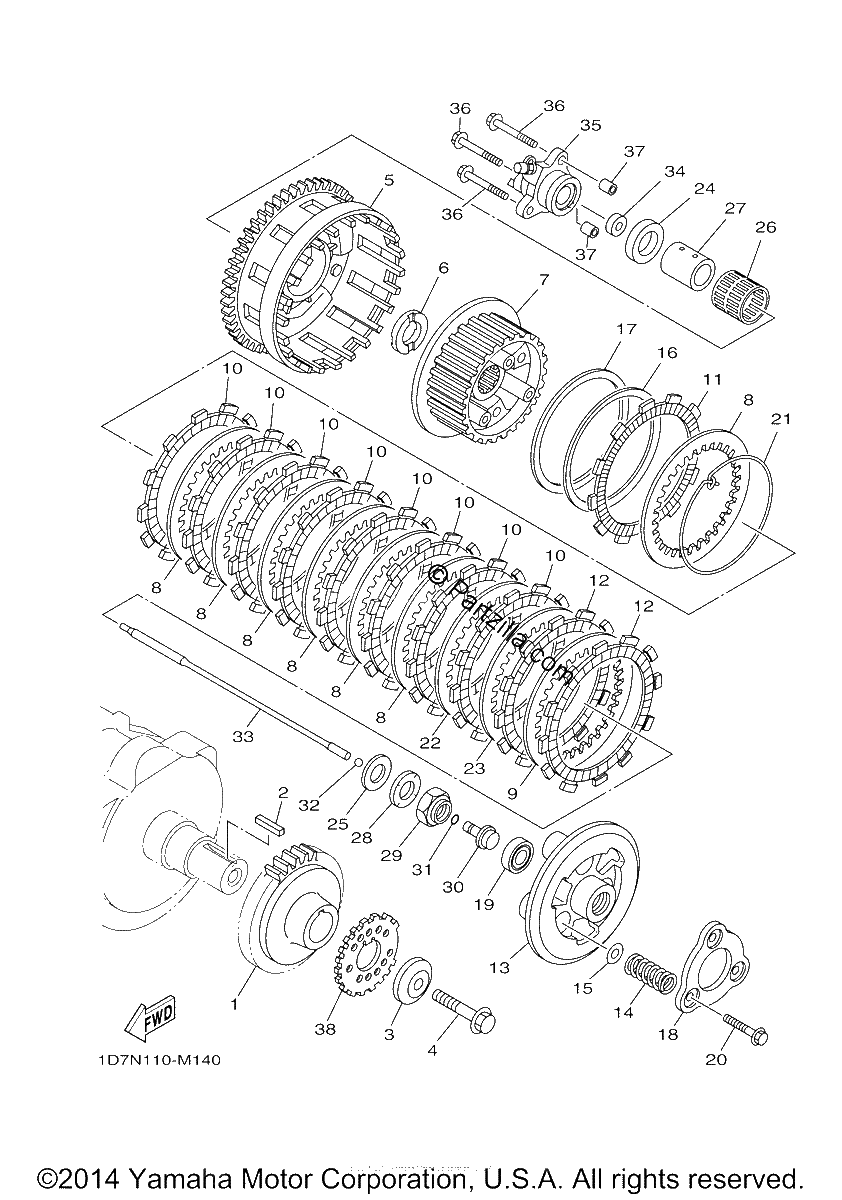

CLUTCH
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
PLATE,CLUTCH 1
$24.04¢12 019
#0
PLATE, CLUTCH 2
$13.54¢6 769
#0
PLATE, CLUTCH 1
$28.94¢14 469
#1
GEAR, PRIMARY DRIVE
$271.55¢135 775
#2
KEY, FEATHER
$8.30¢4 150
#3
SPACER 1
$34.81¢17 406
#4
BOLT, FLANGE
$22.01¢11 006
#5
PRIMARY DRIVEN GEAR COMP.
$631.24¢315 619
#6
PLATE, THRUST 1
$37.81¢18 906
#7
BOSS, CLUTCH
$176.76¢88 381
#8
PLATE, CLUTCH 2
$13.54¢6 769
#9
PLATE, CLUTCH 2
$17.18¢8 588
#10
PLATE, FRICTION
$24.74¢12 369
#11
PLATE, FRICTION 2
$25.46¢12 731
#12
PLATE, FRICTION 2
$27.96¢13 981
#13
PLATE, PRESSURE 1
$171.08¢85 538
#14
SPRING, COMPRESSION
$13.77¢6 887
#15
PLATE, SEAT
$5.54¢2 769
#16
SPRING.,CUSHION
$69.39¢34 694
#17
PLATE, SEAT
$27.07¢13 538
#18
PLATE, PRESSURE 2
$17.48¢8 738
#19
BEARING
$33.26¢16 631
#20
SCREW, SPRING
$1.82¢913
#21
RING SET
$26.16¢13 081
#22
PLATE,CLUTCH 1
$24.04¢12 019
#23
PLATE, CLUTCH 1
$28.94¢14 469
#24
PLATE, THRUST 2
$19.64¢9 819
#25
WASHER, PLATE
$8.20¢4 100
#26
BEARING
$37.01¢18 506
#27
COLLAR
$41.33¢20 663
#28
WASHER, CONICAL SPRING
$12.21¢6 106
#29
NUT
$20.86¢10 431
#30
ROD,PUSH 1
$31.51¢15 756
#31
O-Ring
$7.94¢3 969
#32
BALL
$7.34¢3 669
#33
ROD, PUSH 2
$67.46¢33 731
#34
OIL SEAL
$6.76¢3 381
#35
PUSH LEVER COMP.
$273.34¢136 669
#36
BOLT, FLANGE
$3.36¢1 681
#37
PIN, DOWEL
$6.25¢3 125
#38
ROTOR
$14.74¢7 369
