FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

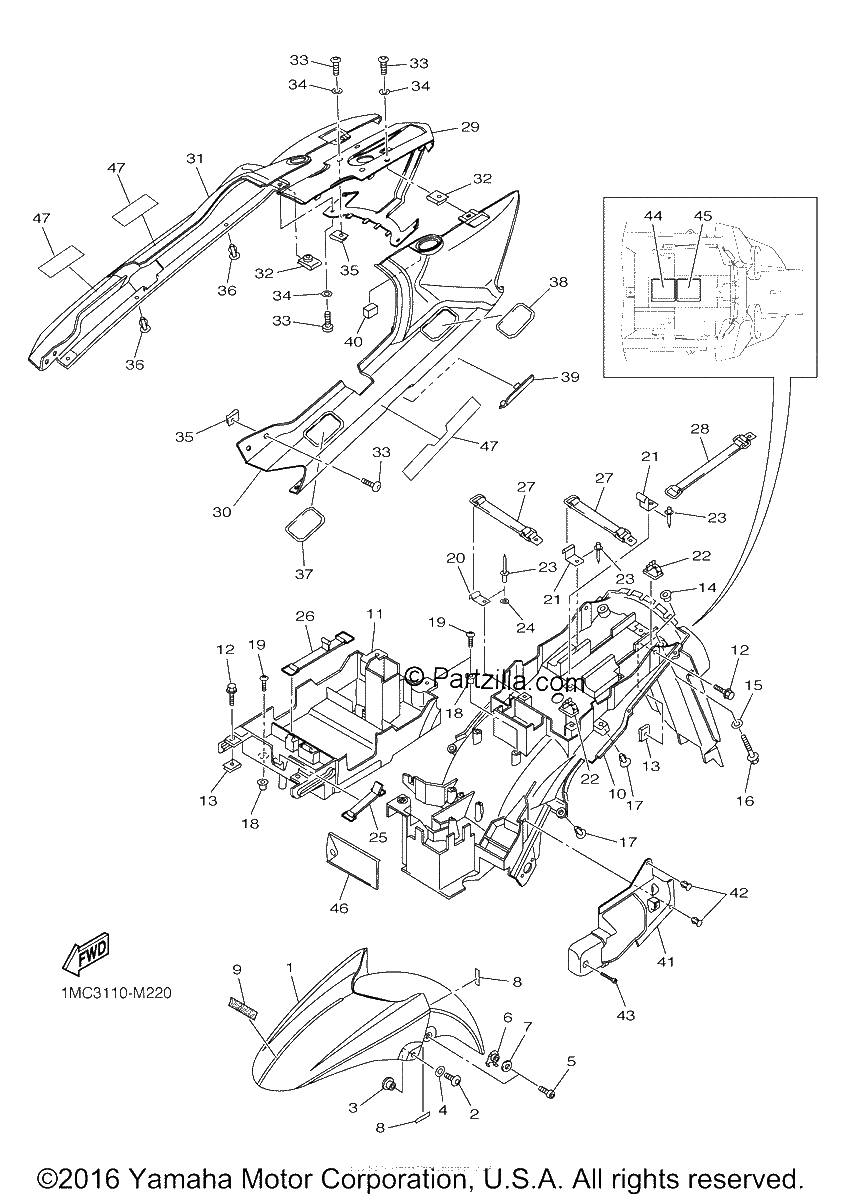

Diagrama de FENDER

Repuestos

#1
3P6-21511-00-PC
FENDER, FRONT | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$194.80¢97 399
1
#2
90110-06200-00
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
1
#3
90387-07006-00
COLLAR
$7.11¢3 553
1
#4
90202-06170-00
WASHER, PLATE
$2.02¢1 012
1
#5
92012-06020-00
BOLT, BUTTON HEAD
$6.88¢3 439
1
#6
3P6-21535-11-00
NUT 1
$22.06¢11 029
1
#7
3P6-21541-00-00
DAMPER 1
$6.51¢3 254
1
#8
5DM-28371-00-00
DAMPER
$5.93¢2 967
1
#9
3WF-2153E-70-00
EMBLEM, YAMAHA
$4.91¢2 455
1
#10
3P6-21611-10-00
FENDER, REAR
$203.99¢101 993
1
#11
3P6-2160E-00-00
BOX
$42.49¢21 246
1
#12
90119-06159-00
BOLT, WITH WASHER
$6.88¢3 439
1
#13
90183-060A7-00
NUT, SPRING
$7.11¢3 553
1
#14
90387-06231-00
COLLAR
$4.97¢2 484
1
#15
90201-07081-00
WASHER, PLATE
$7.77¢3 887
1
#16
95817-06040-00
BOLT,FLANGE (replaces 95812-06040-00)
$4.98¢2 490
1
#17
90269-06081-00
RIVET
$6.23¢3 117
1
#18
90338-08226-00
PLUG
$1.78¢891
1
#19
97702-60016-00
SCREW, TAPPING
$1.35¢673
1
#20
5PS-2162A-00-00
HOOK
$3.73¢1 863
1
#21
4HM-2162A-00-00
HOOK
$4.15¢2 076
1
#22
90464-13185-00
CLAMP
$4.22¢2 110
1
#23
90267-40076-00
RIVET, BLIND
$6.75¢3 375
1
#24
92990-04200-00
WASHER, PLAIN
$1.24¢621
1
#25
36X-2811G-00-00
BAND
$5.51¢2 754
1
#26
4J2-82131-01-00
BAND, BATTERY
$26.46¢13 231
1
#27
5JW-21647-01-00
BAND
$11.40¢5 698
1
#28
3P6-21647-00-00
BAND
$8.69¢4 347
1
#29
3P6-21651-00-P8
COVER, REAR FENDER | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$97.61¢48 806
1
#30
3P6-2471K-00-P8
COVER, TAIL 1 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$188.27¢94 133
1
#31
3P6-2472K-00-P8
COVER, TAIL 2 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$264.60¢132 302
1
#32
90183-051A0-00
NUT, SPRING
$2.92¢1 461
1
#33
90111-05044-00
BOLT, HEX. SOCKET BUTTON
$7.11¢3 553
1
#34
90202-05180-00
WASHER, PLATE
$7.05¢3 525
1
#35
90183-050A0-00
NUT, SPRING
$4.88¢2 438
1
#36
90269-06081-00
RIVET
$6.23¢3 117
1
#37
3P6-2163E-01-P7
COVER, REAR FENDER 2 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$26.15¢13 075
1
#38
3P6-2163E-11-P7
COVER, REAR FENDER 2 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$38.77¢19 383
1
#39
3P6-2163F-01-P7
COVER, REAR FENDER 3 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$26.01¢13 006
1
#40
3P6-21649-00-00
DAMPER
$7.23¢3 617
1
#41
1MC-2163A-00-00
COVER, REAR FENDER 1
$14.55¢7 274
1
#42
90269-06081-00
RIVET
$6.23¢3 117
1
#43
97780-50125-00
SCREW, TAPPING
$2.23¢1 116
1
#44
13S-21684-10-00
PLATE, ROUTING | FOR CALIFORNIA
$9.37¢4 686
1
#45
1MC-21686-00-00
PLATE, ROUTING 2 | FOR CALIFORNIA
$9.91¢4 956
1
#46
1MC-28100-00-00
TOOL KIT
$84.97¢42 487
1
#47
5JW-W9390-00-00
FJR PROTECT STICKER SET
No Disponible
1
