TAILLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

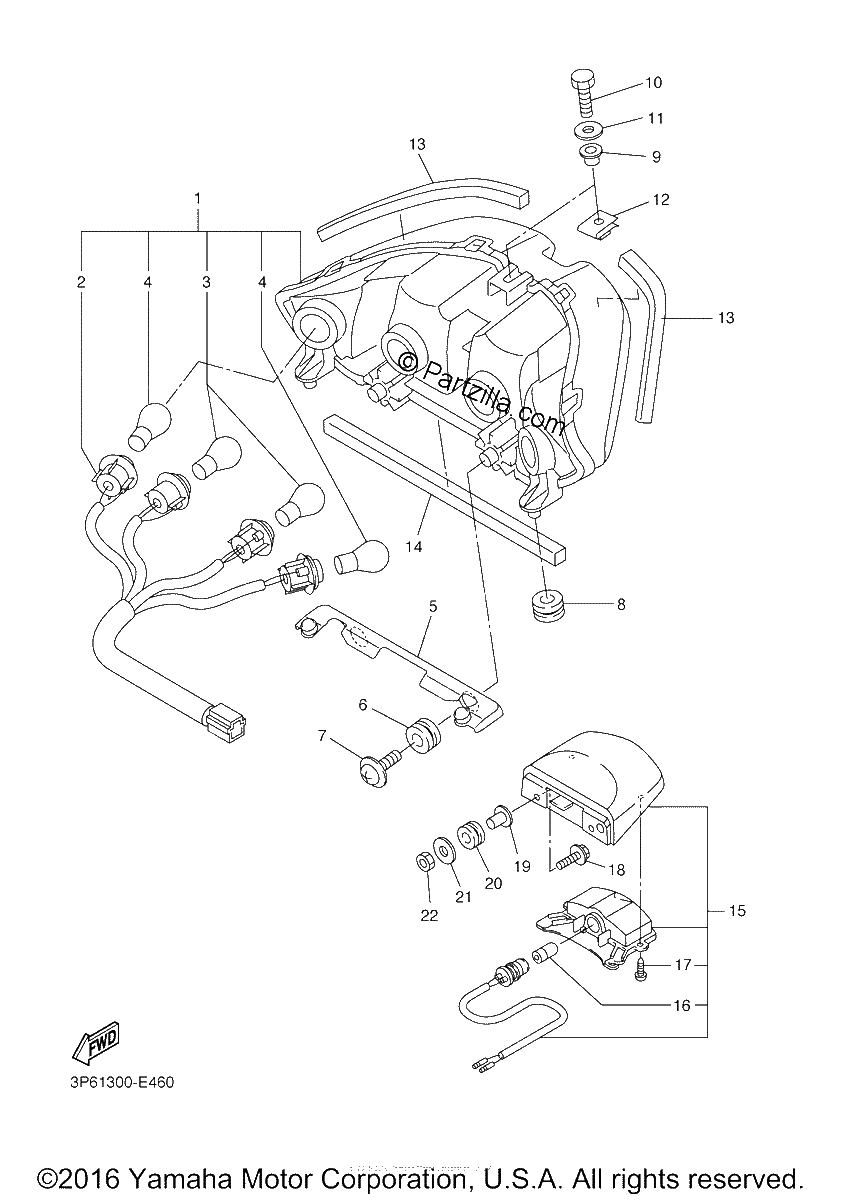

Diagrama de TAILLIGHT

Repuestos

#1
1MC-84710-00-00
TAILLIGHT UNIT ASSY
$351.81¢175 906
1
#2
3P6-84735-00-00
SOCKET CORD ASSY
$68.15¢34 075
1
#3
1A2-84714-50-00
BULB (12V-21/5W)
$14.50¢7 250
1
#4
3P6-83331-00-00
BULB, FLASHER (12V-21W)
$8.92¢4 462
1
#5
3P6-2117E-00-00
BRACKET, TAILLIGHT
$45.44¢22 719
1
#6
90480-18276-00
GROMMET
$7.94¢3 969
1
#7
90164-05001-00
SCREW, TAPPING
$7.48¢3 738
1
#8
4XV-83513-00-00
DAMPER
$7.63¢3 813
1
#9
90387-07391-00
COLLAR
$9.22¢4 613
1
#10
97017-06025-00
BOLT,HEXAGON (replaces 97007-06025-00)
$3.55¢1 775
1
#11
92990-06600-00
WASHER, PLATE
$3.40¢1 700
1
#12
90183-060A7-00
NUT, SPRING
$7.72¢3 863
1
#13
4FU-21747-00-00
DAMPER
$7.08¢3 538
1
#14
2D1-24737-00-00
DAMPER, SEAT
$4.55¢2 275
1
#15
2D1-84745-00-00
LICENSE LIGHT UNIT ASSY
$147.71¢73 856
1
#16
4SV-84347-00-00
BULB (12V-5W)
$7.65¢3 825
1
#17
97707-40012-00
SCREW, TAPPING
$7.95¢3 975
1
#18
90159-05035-00
SCREW, WITH WASHER
$7.41¢3 706
1
#19
90387-05003-00
COLLAR
$5.53¢2 763
1
#20
90480-11008-00
GROMMET
$5.41¢2 706
1
#21
90201-05043-00
WASHER, PLATE
$6.47¢3 238
1
#22
95617-05100-00
NUT, U
$7.94¢3 969
1
