WATER PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

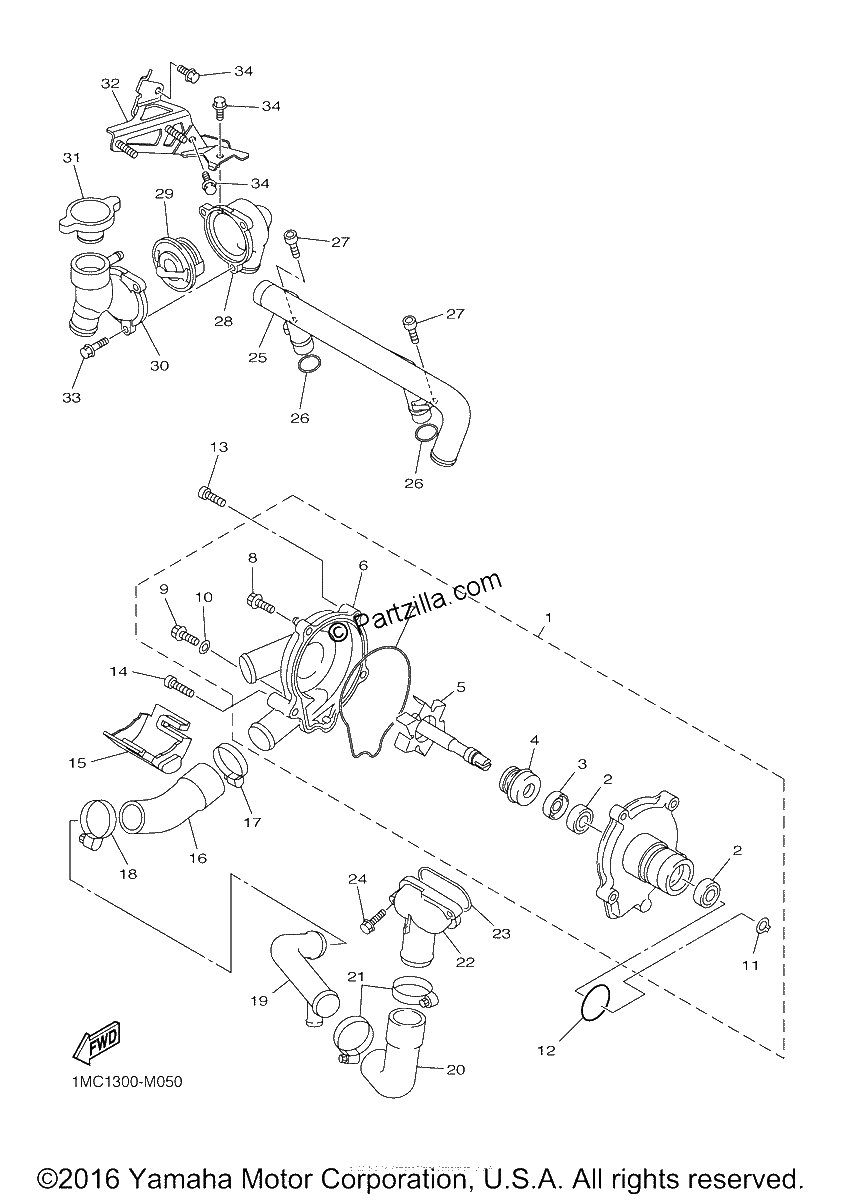

Diagrama de WATER PUMP

Repuestos

#1
1MC-12420-01-00
WATER PUMP ASSY
$346.97¢173 487
1
#2
93306-00105-00
BEARING
$30.26¢15 131
1
#3
93102-12372-00
OIL SEAL
$11.68¢5 838
1
#4
5VK-12438-00-00
SEAL, MECHANICAL
$63.35¢31 675
1
#5
5JW-12450-00-00
IMPELLER SHAFT ASSY
$86.39¢43 194
1
#6
1MC-12422-00-00
COVER, HOUSING
$142.03¢71 013
1
#7
5JW-12439-00-00
O-RING
$12.82¢6 413
1
#8
90105-06065-00
BOLT, FLANGE
$4.44¢2 219
1
#9
95024-06025-00
Bolt, Flange
$3.06¢1 531
1
#10
90430-06014-00
GASKET
$8.25¢4 125
1
#11
99009-12400-00
CIRCLIP
$3.66¢1 831
1
#12
93210-33133-00
O-RING
$3.59¢1 794
1
#13
90110-06336-00
BOLT, HEXAGON SOCKET HEAD
$3.06¢1 531
1
#14
90110-06337-00
BOLT, HEXAGON SOCKET HEAD
$4.04¢2 019
1
#15
1MC-12437-00-00
STOPPER
$14.59¢7 294
1
#16
5JW-12576-00-00
HOSE 1
$28.13¢14 063
1
#17
90450-38003-00
HOSE CLAMP ASSY
$17.75¢8 875
1
#18
90450-38040-00
HOSE CLAMP ASSY
$18.77¢9 388
1
#19
3P6-12581-00-00
JOINT, HOSE 1
$88.19¢44 094
1
#20
5JW-12577-00-00
HOSE 2
$30.72¢15 362
1
#21
90450-38040-00
HOSE CLAMP ASSY
$18.77¢9 388
1
#22
5JW-12469-00-00
JOINT 1
$41.46¢20 731
1
#23
93210-47675-00
O-RING
$6.60¢3 300
1
#24
95022-06020-00
BOLT, FLANGE
$3.96¢1 981
1
#25
1MC-12481-00-00
PIPE 1
$164.56¢82 281
1
#26
93210-18417-00
O-RING
$5.78¢2 888
1
#27
91312-06016-00
BOLT
$5.84¢2 919
1
#28
3P6-12417-00-00
HOUSING, THERMOSTAT
$40.81¢20 406
1
#29
4FM-12410-00-00
THERMOSTAT ASSY
$42.39¢21 194
1
#30
3P6-12591-00-00
SUPPORT, FILLER NECK
$66.80¢33 400
1
#31
1B3-12462-00-00
CAP, RADIATOR
$72.66¢36 331
1
#32
1MC-1244E-00-00
BRACKET 1
$29.55¢14 775
1
#33
95022-06020-00
BOLT, FLANGE
$3.96¢1 981
1
#34
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
