STARTER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

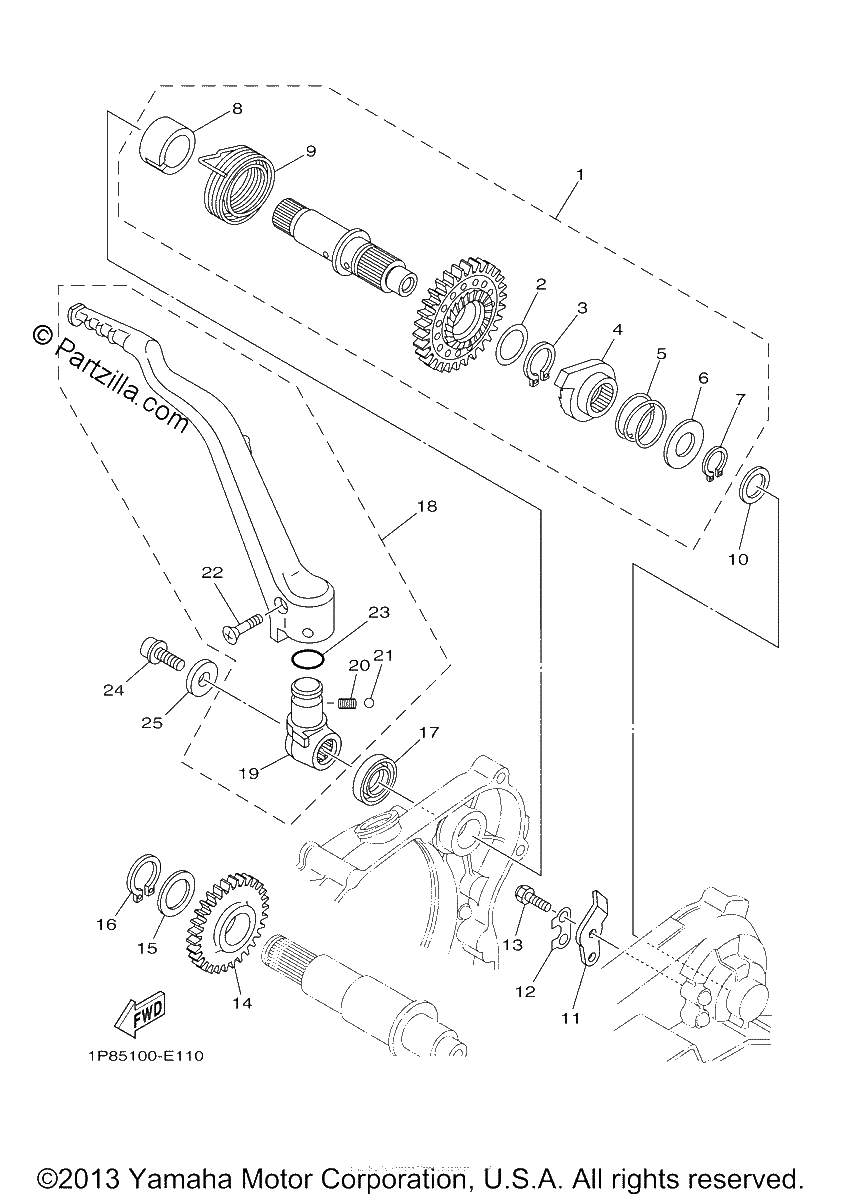

Diagrama de STARTER

Repuestos

#1
5NX-15601-10-00
KICK SHAFT ASSY
$281.99¢140 996
1
#2
90201-20685-00
WASHER,PLATE
$6.45¢3 226
1
#3
93410-20038-00
CIRCLIP
$2.86¢1 432
1
#4
4GY-15671-00-00
WHEEL, RATCHET
$95.36¢47 679
1
#5
90501-16016-00
Spring, Compression
$5.21¢2 605
1
#6
90201-167P7-00
WASHER, plate
$9.20¢4 600
1
#7
99009-16400-00
CIRCLIP,S-TYPE
$5.65¢2 823
1
#8
5NL-15664-00-00
Guide, Spring
$13.40¢6 699
1
#9
90508-30743-00
SPRING,TORSION
$18.26¢9 131
1
#10
90201-162H4-00
WASHER,PLATE
$8.69¢4 347
1
#11
2NX-15674-00-00
GUIDE,RATCHET WHL (replaces 214-15674-00-00)
$9.87¢4 934
1
#12
214-15686-00-00
WASHER,LOCK
$6.99¢3 496
1
#13
97095-06016-00
BOLT
$2.08¢1 041
1
#14
5CU-15651-00-00
GEAR, KICK IDLE
$137.67¢68 833
1
#15
90201-20276-00
WASHER, PLATE (T=1.0)
$7.19¢3 594
1
#16
99009-20400-00
Circlip
$6.75¢3 375
1
#17
93102-18278-00
OIL SEAL,SD-TYPE
$11.43¢5 716
1
#18
5NX-15620-20-00
Kick Crank Assy
$210.60¢105 300
1
#19
5NX-15621-10-00
BOSS, KICK CRANK
$83.88¢41 940
1
#20
90501-147A5-00
Spring, Compression
$6.75¢3 375
1
#21
93507-32031-00
BALL
$4.28¢2 139
1
#22
90151-06045-00
SCREW, COUNTERSUNK
$6.75¢3 375
1
#23
93210-17570-00
O-Ring
$6.43¢3 214
1
#24
90110-08052-00
BOLT, HEXAGON SOCKET HEAD (replaces 90110-08051-00)
$6.87¢3 433
1
#25
90201-08048-00
WASHER, PLATE
$6.30¢3 151
1
