STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

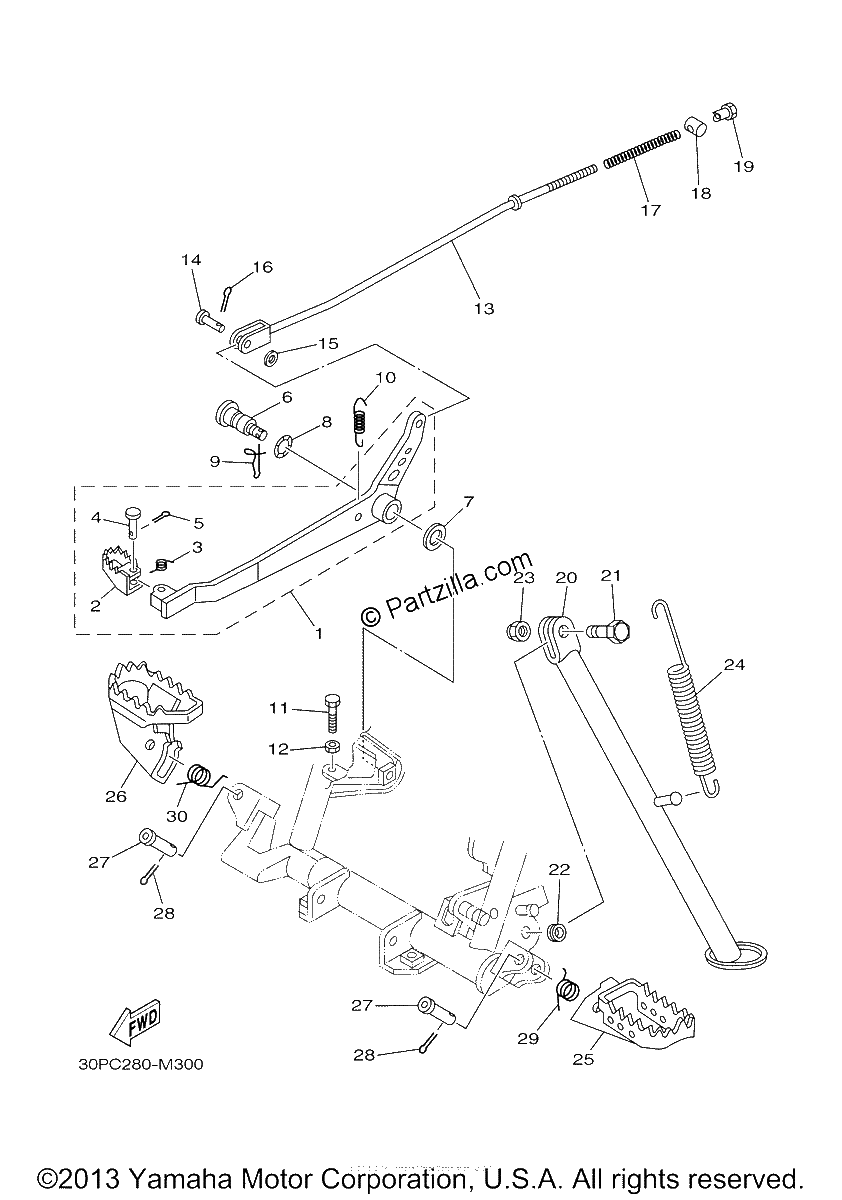

Diagrama de STAND FOOTREST

Repuestos

#1
1B2-F7200-00-00
PEDAL, BRAKE
$78.15¢39 075
1
#2
55V-27242-00-00
PEDAL, BRAKE
$24.45¢12 225
1
#3
90508-14352-00
SPRING, TORSION
$8.21¢4 106
1
#4
91701-06022-00
PIN
$2.16¢1 081
1
#5
91401-20012-00
PIN, COTTER
$2.20¢1 100
1
#6
2CC-F7261-00-00
SHAFT (replaces 5RM-F7261-00-00)
$12.89¢6 444
1
#7
90201-105J4-00
WASHER, PLATE
$8.18¢4 088
1
#8
90206-14001-00
WASHER, WAVE
$8.76¢4 381
1
#9
90468-20196-00
Clip
$0.64¢319
1
#10
90506-16372-00
SPRING,TENSION
$8.92¢4 462
1
#11
97017-06016-00
BOLT
$7.35¢3 675
1
#12
95317-06700-00
NUT(JN5)
$7.95¢3 975
1
#13
1B2-F7231-10-00
Rod, Brake
$8.64¢4 319
1
#14
90240-06804-00
Pin, Clevis
$0.44¢219
1
#15
92990-06200-00
WASHER, PLAIN
$0.96¢481
1
#16
91401-20012-00
PIN, COTTER
$2.20¢1 100
1
#17
90501-10245-00
SPRING, COMPRESSION
$7.34¢3 669
1
#18
90249-12008-00
PIN
$7.34¢3 669
1
#19
90179-06W21-00
Nut
$1.68¢838
1
#20
1B2-F7311-10-00
STAND, SIDE
$52.13¢26 063
1
#21
90101-10003-00
bolt
$8.16¢4 081
1
#22
90387-10003-00
Collar
$25.39¢12 694
1
#23
90185-10037-00
NUT,SELF-LOCKING
$7.94¢3 969
1
#24
90506-35809-00
Spring, Tension
$9.47¢4 738
1
#25
1B2-F7411-00-00
FOOTREST 1
$36.54¢18 269
1
#26
1B2-F7421-00-00
FOOTREST 2
$36.54¢18 269
1
#27
90240-10117-00
PIN,CLEVIS
$13.64¢6 819
1
#28
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.61¢1 806
1
#29
90508-28777-00
SPRING,TORSION
$6.76¢3 381
1
#30
90508-284A7-00
Spring, Torsion
$6.47¢3 238
1
