FENDER

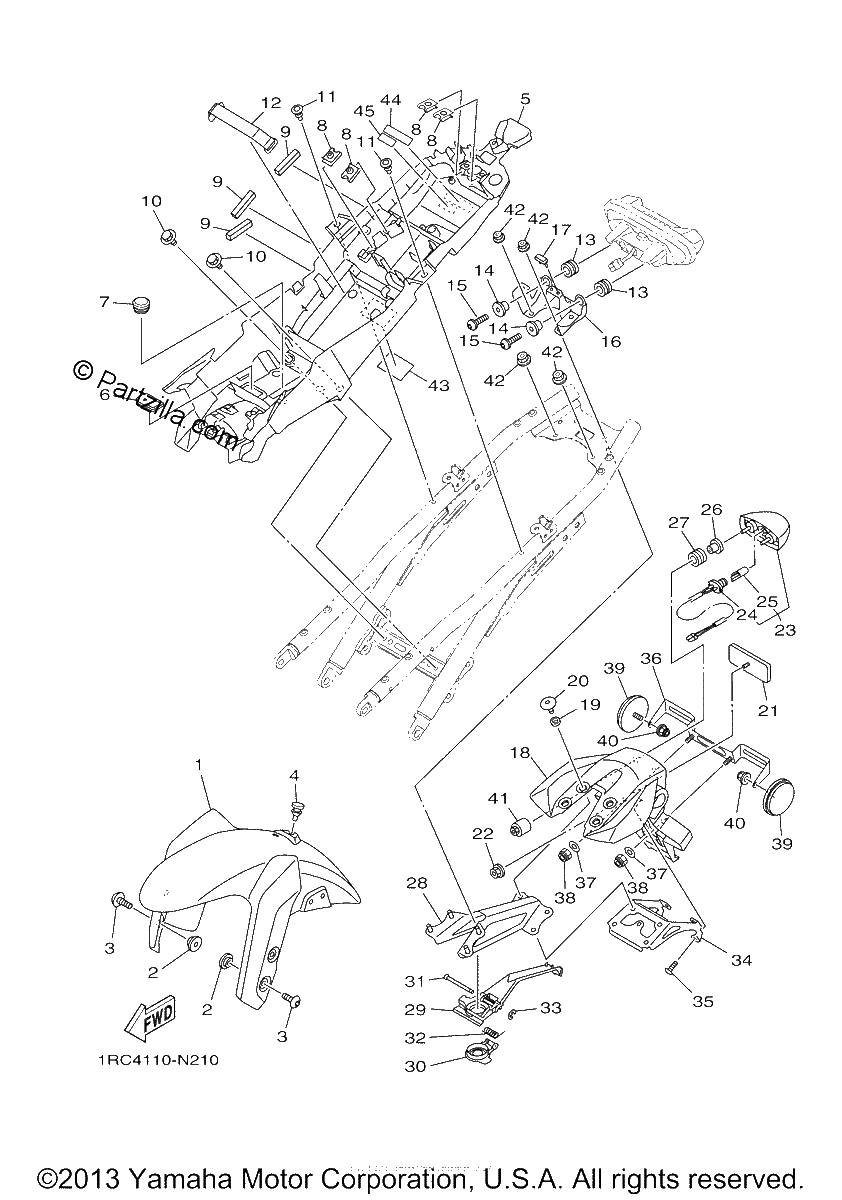

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
FENDER, FRONT
$233.59¢116 794
#1
FENDER, FRONT | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$269.26¢134 631
#2
COLLAR
$6.85¢3 425
#3
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
#4
GROMMET
$5.05¢2 525
#5
BOX, BATTERY 1
$112.86¢56 431
#6
PLUG, BLIND
$4.40¢2 200
#7
GROMMET
$7.69¢3 844
#8
NUT, SPRING
$7.26¢3 631
#9
DAMPER
$0.93¢463
#10
BOLT
$3.24¢1 619
#11
RIVET
$4.00¢2 000
#12
BAND, BATTERY
$7.88¢3 938
#13
GROMMET
$5.22¢2 613
#14
COLLAR
$3.69¢1 844
#15
BOLT, BUTTON HEAD
$7.48¢3 738
#16
BRACKET, TAILLIGHT
$53.90¢26 950
#17
STOPPER, UPPER MOUNT
$3.02¢1 513
#18
GUARD, MUD
$39.40¢19 700
#19
COLLAR
$6.45¢3 225
#20
BOLT, HEX. SOCKET BUTTON
$7.46¢3 731
#21
Rear Reflector
$27.07¢13 538
#22
NUT,U FLANGE (replaces 95602-05200-00)
$8.16¢4 081
#23
LICENSE LIGHT ASSY
$33.15¢16 575
#24
CORD, LICENSE LIGHT
$14.44¢7 219
#25
BULB (12V-5W)
$7.08¢3 538
#26
COLLAR
$5.69¢2 844
#27
GROMMET
$0.96¢481
#28
STAY 1
$53.43¢26 713
#29
COVER, REAR FENDER 2
$6.25¢3 125
#30
CAP, ROTOR
$4.68¢2 338
#31
PIN
$5.38¢2 688
#32
SPRING, TORSION
$2.23¢1 113
#33
CIRCLIP
$7.95¢3 975
#34
STAY, PLATE
$39.71¢19 856
#35
SCREW, ROUND TAPPING
$7.46¢3 731
#36
BRACKET, LICENSE
$47.46¢23 731
#37
WASHER, PLATE
$3.40¢1 700
#38
NUT,U (replaces 95602-06100-00)
$2.86¢1 431
#39
REFLECTOR, REAR 1
$30.67¢15 337
#40
NUT, FLANGE
$7.35¢3 675
#41
WEIGHT
$7.76¢3 881
#42
NUT-U (replaces 95602-06200-00)
$2.80¢1 400
#43
LABEL, TIRE
$3.61¢1 806
#44
LABEL, CAUTION
$4.94¢2 469
#45
LABEL, CAUTION
$5.32¢2 662
