FUEL

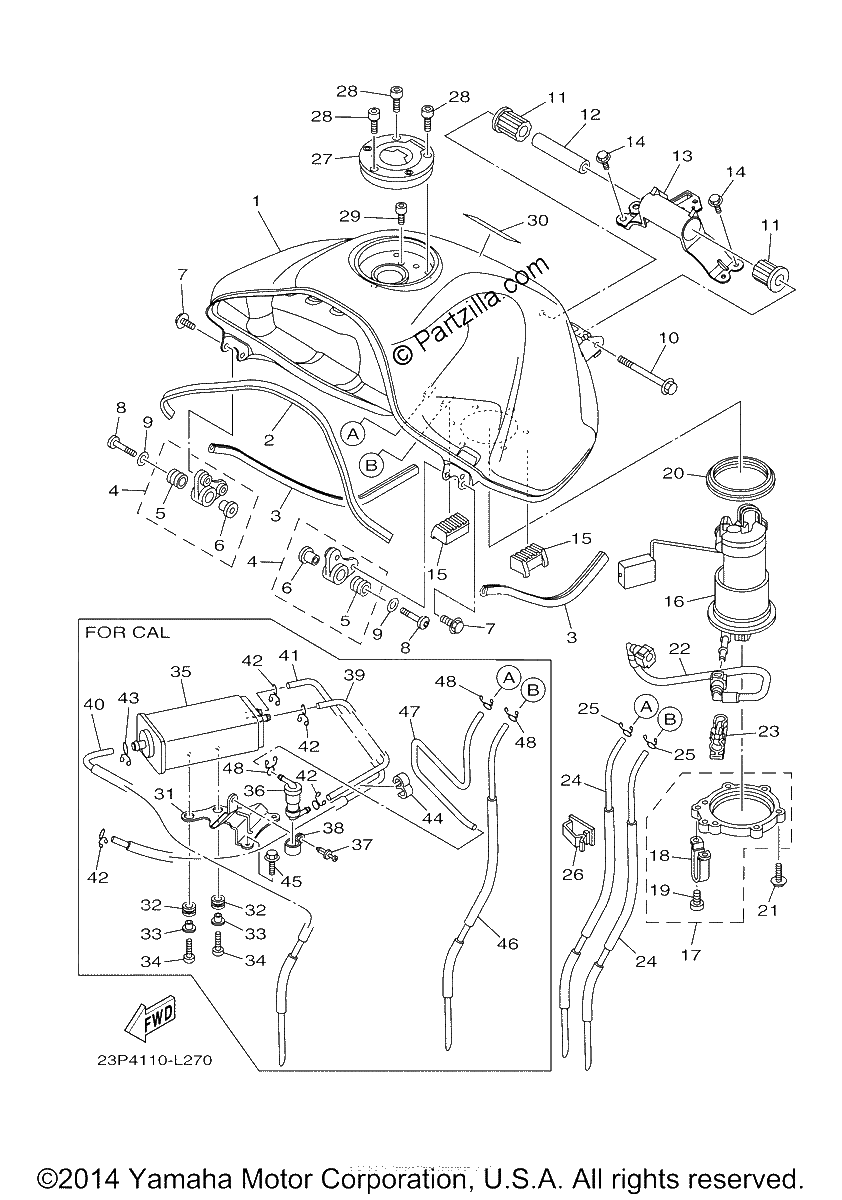

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FUEL TANK COMP. | UR FOR MNM3
$786.59¢393 294
#2
MOLD, FUEL TANK
$30.72¢15 358
#3
MOLD, FUEL TANK
$30.18¢15 088
#4
TANK BRACKET ASSY (replaces 23P-24104-01-00)
$55.90¢27 951
#5
GROMMET
$3.48¢1 742
#6
COLLAR
$4.30¢2 151
#7
BOLT, WITH WASHER
$6.88¢3 439
#8
SCREW
$4.70¢2 352
#9
WASHER, PLATE
$7.01¢3 507
#10
BOLT, FLANGE (replaces 95812-08110-00)
$6.42¢3 209
#11
DAMPER, LOCATING 3
$4.22¢2 110
#12
COLLAR
$9.37¢4 686
#13
BRACKET, TANK FITTING
$69.30¢34 649
#14
BOLT, FLANGE (replaces 95802-06020-00)
$3.05¢1 524
#15
DAMPER, LOCATING 1
$10.02¢5 008
#16
FUEL PUMP COMP.
$738.29¢369 144
#17
TANK BRACKET ASSY 2
$50.43¢25 214
#18
BRACKET, FUEL TANK 2
$12.45¢6 227
#19
SCREW, BIND
$1.35¢673
#20
O-RING
$40.92¢20 458
#21
BOLT, HEXAGON SOCKET HEAD
$6.88¢3 439
#22
PIPE, FUEL 1
$63.01¢31 504
#23
CLAMP
$11.73¢5 865
#24
PIPE, OVERFLOW | FOR CAL
$31.05¢15 525
#25
Clip
$2.74¢1 368
#26
CLAMP
$5.30¢2 651
#27
CAP ASSY
$248.96¢124 482
#28
BOLT, HEXAGON SOCKET HEAD
$8.20¢4 100
#29
BOLT
$5.39¢2 697
#30
LABEL, CAUTION
$7.22¢3 611
#31
BRACKET, CANISTOR | FOR CAL
$65.46¢32 729
#32
GROMMET
$6.83¢3 415
#33
COLLAR | FOR CALIFORNIA
$6.22¢3 111
#34
BOLT, BUTTON HEAD
$6.82¢3 410
#35
CANISTER ASSY | FOR CALIFORNIA
$325.59¢162 794
#36
ROLL OVER VALVE ASSY | FOR CAL
$56.99¢28 497
#37
RIVET
$2.50¢1 248
#38
Clamp
$2.16¢1 081
#39
PIPE 4 | FOR CAL
$20.90¢10 448
#40
PIPE 5 | FOR CAL
$41.94¢20 970
#41
PIPE 6 | FOR CAL
$40.02¢20 010
#42
Clip
$2.74¢1 368
#43
CLIP | FOR CALIFORNIA
$6.99¢3 496
#44
CLAMP
$6.77¢3 387
#45
BOLT, FLANGE (replaces 95827-06012-00)
$1.64¢822
#46
PIPE, OVERFLOW | FOR CAL
$31.05¢15 525
#47
PIPE 3 | FOR CAL
$47.29¢23 644
#48
Clip
$2.74¢1 368
