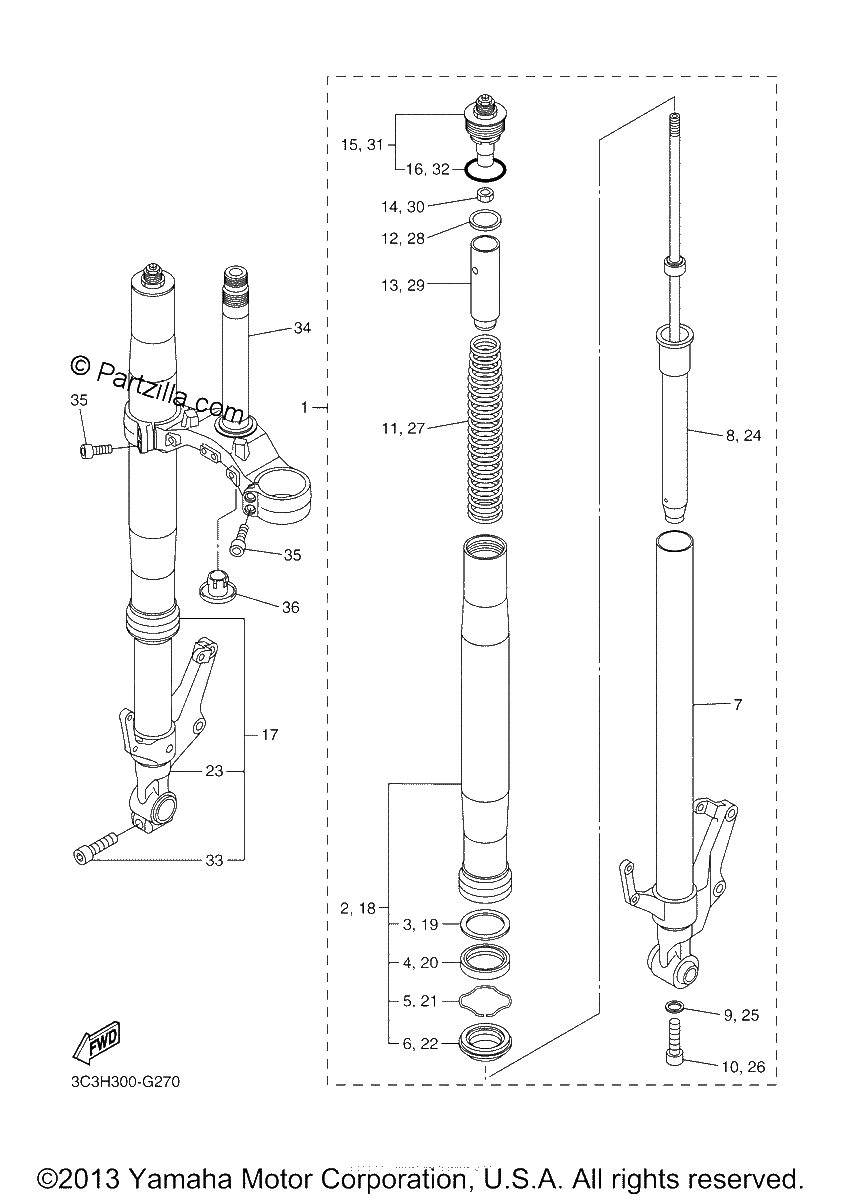

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$974.99¢487 494
#2
TUBE, OUTER
$752.49¢376 244
#3
WASHER, OIL SEAL | (KYB)
$7.08¢3 538
#4
OIL SEAL
$24.99¢12 494
#5
RING, SNAP | (KYB)
$10.31¢5 156
#6
SEAL, DUST
$24.02¢12 013
#7
INNER TUBE COMP.1
$612.39¢306 194
#8
CYLINDER COMP., FRONT FORK
No Disponible
#9
GASKET | (KYB)
$17.09¢8 544
#10
BOLT, HEXAGON SOCKET HEAD
$9.10¢4 550
#11
SPRING, FRONT FORK
No Disponible
#12
WASHER
$12.75¢6 375
#13
SPACER
$64.85¢32 425
#14
NUT
$7.91¢3 956
#15
BOLT, CAP
$335.32¢167 663
#16
O-RING
$8.03¢4 013
#17
FRONT FORK ASSY (R.H)
$935.34¢467 669
#18
TUBE, OUTER
$752.49¢376 244
#19
WASHER, OIL SEAL | (KYB)
$7.08¢3 538
#20
OIL SEAL
$24.99¢12 494
#21
RING, SNAP | (KYB)
$10.31¢5 156
#22
SEAL, DUST
$24.02¢12 013
#23
INNER TUBE COMP.2
$612.39¢306 194
#24
CYLINDER COMP., FRONT FORK
$589.79¢294 894
#25
GASKET | (KYB)
$17.09¢8 544
#26
BOLT, HEXAGON SOCKET HEAD
$9.10¢4 550
#27
SPRING, FRONT FORK
No Disponible
#28
WASHER
$12.75¢6 375
#29
SPACER
$64.85¢32 425
#30
NUT
$7.91¢3 956
#31
BOLT, CAP
$335.32¢167 663
#32
O-RING
$8.03¢4 013
#33
BOLT (3JP)
$6.25¢3 125
#34
UNDER BRACKET COMP.
$616.21¢308 106
#35
BOLT
$7.34¢3 669
#36
COVER, UNDER 1
$14.65¢7 325
