FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

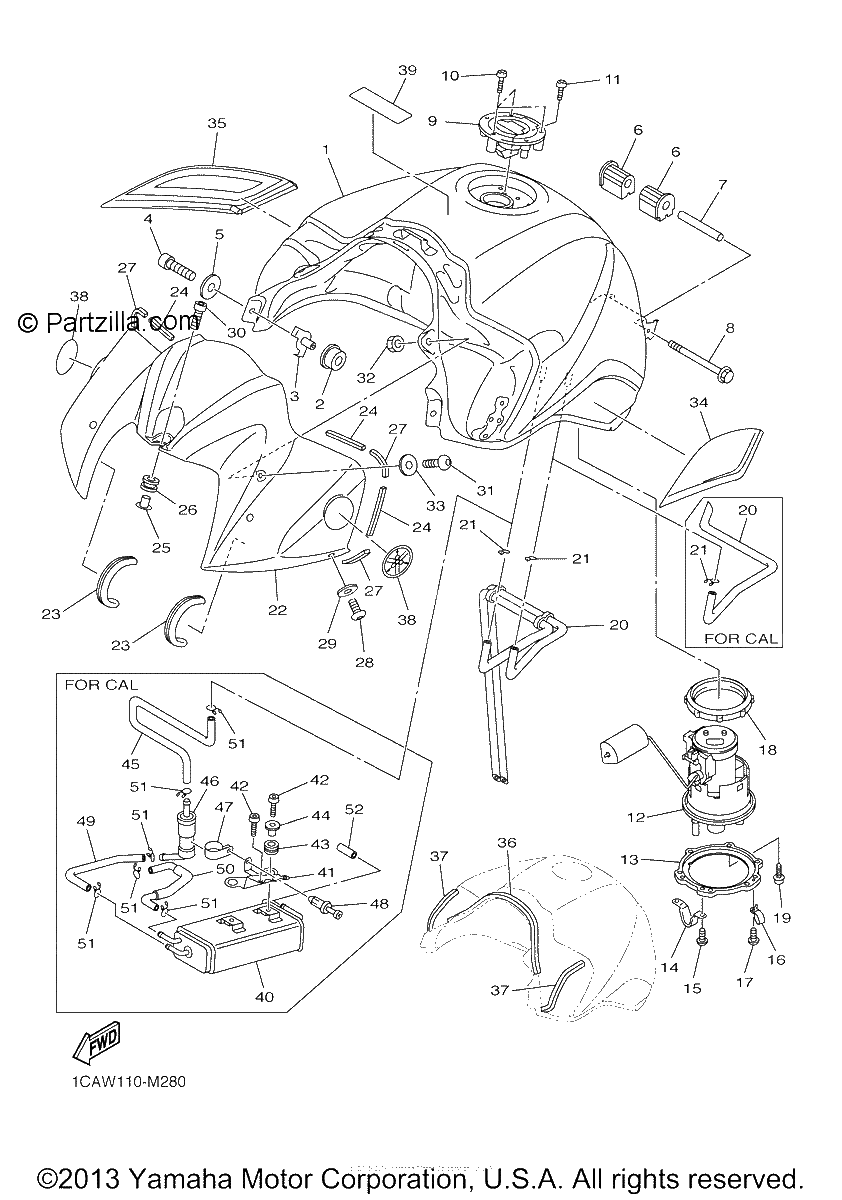

Diagrama de FUEL TANK

Repuestos

#0
2D1-24317-10-00
PIPE 7
$79.05¢39 525
1
#1
2D1-YK241-00-P9
FUEL TANK COMP. | Use for Color BLUISH WHITE COCKTAIL 1 ( BWC1 / 0390 )
$1129.99¢564 994
1
#2
5VY-24181-00-00
DAMPER, LOCATING 1
$7.65¢3 825
1
#3
2D1-2412G-00-00
COLLAR
$27.56¢13 781
1
#4
91312-06016-00
BOLT
$5.84¢2 919
1
#5
90201-06086-00
WASHER, PLATE
$6.99¢3 494
1
#6
5VX-24181-00-00
DAMPER, LOCATING 1
$15.08¢7 538
1
#7
90387-061W6-00
COLLAR
$8.09¢4 044
1
#8
91314-06090-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#9
39P-24602-00-00
CAP ASSY
$270.61¢135 306
1
#10
90110-05112-00
BOLT, HEXAGON SOCKET HEAD
$8.91¢4 456
1
#11
91312-05010-00
BOLT
$5.86¢2 931
1
#12
2D1-13907-02-00
FUEL PUMP COMP.
$742.05¢371 025
1
#13
1EC-24491-00-00
BRACKET, FUEL PUMP
$48.49¢24 244
1
#14
2D1-24192-00-00
BRACKET, FUEL TANK 2
$13.54¢6 769
1
#15
98902-05008-00
SCREW, BIND
$1.46¢731
1
#16
90461-10010-00
CLAMP
$5.49¢2 744
1
#17
98902-05008-00
SCREW, BIND
$1.46¢731
1
#18
19B-24486-01-00
O-RING
$44.47¢22 237
1
#19
90110-05028-00
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
1
#20
3C3-24317-00-00
PIPE 7 | FOR CALIFORNIA
$55.36¢27 681
1
#21
90467-090A2-00
Clip
$2.97¢1 487
1
#22
3C3-2171A-00-P5
COVER, TOP | Use for Color BLUISH WHITE COCKTAIL 1 ( BWC1 / 0390 )
$130.61¢65 306
1
#23
2D1-28345-01-00
MOLE 1
$5.91¢2 956
1
#24
4XV-2834E-00-00
DAMPER 3
$3.23¢1 613
1
#25
90387-06222-00
COLLAR
$6.57¢3 287
1
#26
90480-12497-00
GROMMET
$3.38¢1 688
1
#27
2D1-24181-00-00
DAMPER, LOCATING 1
$7.95¢3 975
1
#28
90111-05019-00
BOLT, HEX. SOCKET BUTTON
$7.52¢3 762
1
#29
90202-05224-00
WASHER, PLATE
$7.43¢3 713
1
#30
90110-06233-00
BOLT, HEXAGON SOCKET HEAD
$7.43¢3 713
1
#31
90111-05024-00
BOLT, HEX. SOCKET BUTTON
$4.25¢2 125
1
#32
90179-05003-00
NUT
$5.84¢2 919
1
#33
90202-05088-00
WASHER, PLATE
$7.29¢3 644
1
#34
2D1-24106-01-00
TANK SIDE COVER ASSY 1
$32.31¢16 156
1
#35
2D1-24108-01-00
TANK SIDE COVER ASSY 2
$32.31¢16 156
1
#36
2D1-2414P-00-00
DAMPER, PLATE 5
$10.30¢5 150
1
#37
2D1-2414R-00-00
DAMPER, PLATE 6
$7.91¢3 956
1
#38
5SL-2413B-00-00
EMBLEM
$26.51¢13 256
1
#39
5GK-2118K-00-00
LABEL, CAUTION
$5.84¢2 919
1
#40
3C3-24170-00-00
CANISTER ASSY | FOR CALIFORNIA
$472.75¢236 375
1
#41
3C3-24216-00-00
STAY | FOR CALIFORNIA
$196.63¢98 313
1
#42
92012-06016-00
BOLT, BUTTON HEAD
$7.41¢3 706
1
#43
90480-13018-00
GROMMET
$7.43¢3 713
1
#44
90387-062L2-00
COLLAR | FOR CALIFORNIA
$6.76¢3 381
1
#45
3C3-24313-00-00
PIPE 3 | FOR CALIFORNIA
$52.09¢26 044
1
#46
5RB-24180-00-00
ROLL OVER VALVE ASSY
$122.94¢61 469
1
#47
90464-15014-00
Clamp
$2.35¢1 175
1
#48
90269-05001-00
RIVET
$2.71¢1 356
1
#49
3C3-24314-00-00
PIPE 4 | FOR CALIFORNIA
$37.98¢18 988
1
#50
3C3-1443J-01-00
PIPE | FOR CALIFORNIA
$41.25¢20 625
1
#51
90467-090A2-00
Clip
$2.97¢1 487
1
#52
90445-112E0-00
HOSE (L70)
$6.94¢3 469
1
