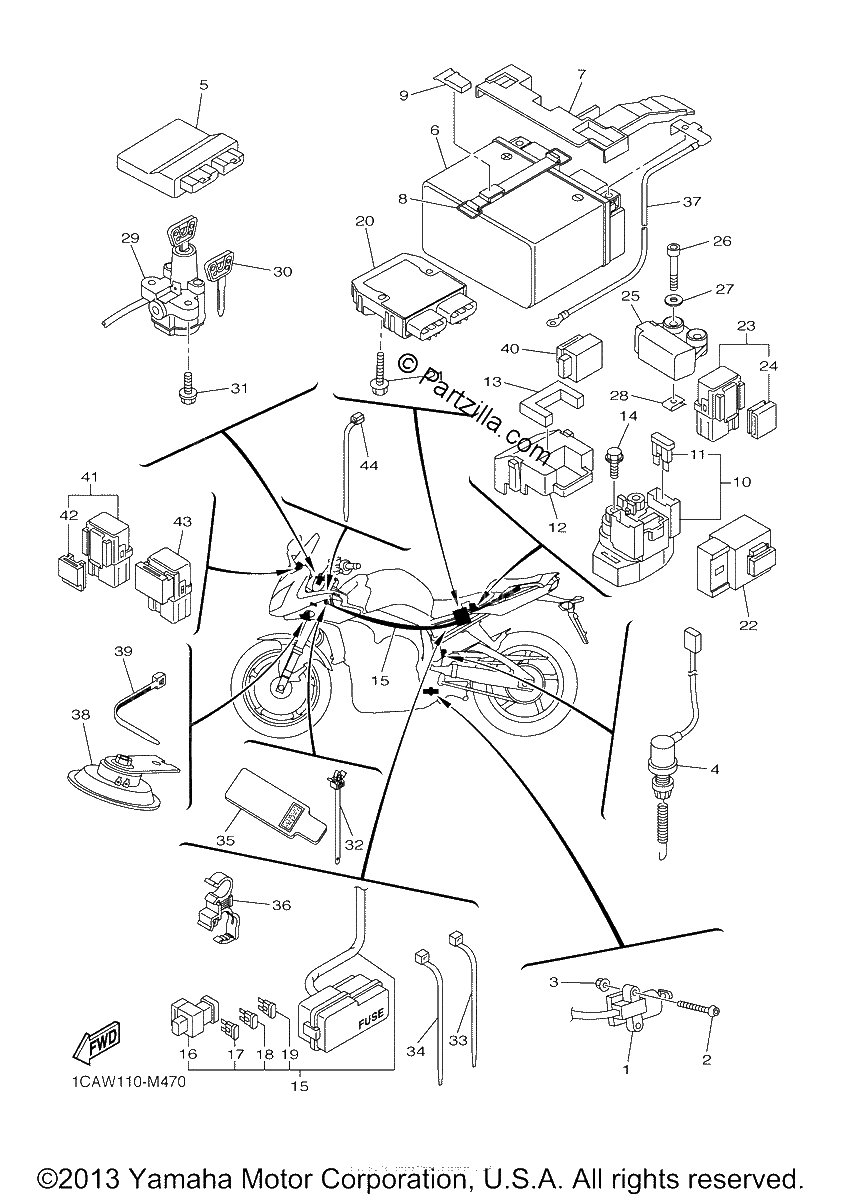

ELECTRICAL 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SWITCH, SIDE STAND
$84.25¢42 125
#2
BOLT, BUTTON HEAD
$5.69¢2 846
#3
NUT,U FLANGE (replaces 95602-05200-00)
$7.51¢3 755
#4
STOP SWITCH ASSY
$69.14¢34 569
#5
ENGINE CONTROL UNIT ASSY
$1276.49¢638 244
#6
YTZ14S YUASA BATTER (replaces 2D1-82100-00-00)
$312.28¢156 141
#7
COVER, BATTERY
$12.56¢6 279
#8
BAND, BATTERY
$6.53¢3 266
#9
HOOK
$7.77¢3 887
#10
STARTER RELAY ASSY
$147.04¢73 520
#11
Fuse (15 Amp)
$4.45¢2 225
#12
COVER, LEAD WIRE
$4.45¢2 225
#13
DAMPER
$2.16¢1 081
#14
BOLT, FLANGE
$6.87¢3 433
#15
WIRE HARNESS ASSY
$681.94¢340 969
#16
FUSE (50A)
$15.65¢7 826
#17
FUSE (20A-BL)
$7.01¢3 507
#18
FUSE (15A)
$4.08¢2 041
#19
FUSE (10A)
$7.13¢3 565
#20
RECTIFIER REGULATOR ASSY
$308.43¢154 215
#21
BOLT,FLANGE (replaces 90105-06125-00)
$1.61¢805
#22
RELAY ASSY (5VK-40)
$65.04¢32 522
#23
RELAY ASSY (1ST-00)
$16.38¢8 188
#24
HOLDER, RELAY
$8.71¢4 353
#25
SENSOR, LEAN ANGLE
$87.63¢43 815
#26
BOLT
$1.69¢845
#27
WASHER, PLATE
$1.66¢828
#28
NUT, SPRING
$6.46¢3 231
#29
MAIN SWITCH STEERING LOCK
$265.36¢132 681
#30
BLANK KEY | AP
$26.78¢13 392
#31
BOLT
$6.76¢3 381
#32
CLAMP
$6.76¢3 381
#33
BAND
$4.52¢2 260
#34
CLAMP
$3.04¢1 518
#35
PROTECTER, WIRE HARNESS
$10.63¢5 313
#36
CLAMP
$3.09¢1 547
#37
WIRE, MINUS LEAD
$28.30¢14 151
#38
HORN
$87.57¢43 786
#39
BAND
$6.95¢3 473
#40
FLASHER RELAY ASSY
$51.50¢25 749
#41
RELAY ASSY (1TP-00)
$14.34¢7 170
#42
HOLDER, RELAY
$7.38¢3 691
#43
RELAY ASSY (G8HN-1C4T-DJ-Y52)
$27.11¢13 553
#44
CLAMP
$7.30¢3 651
