SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

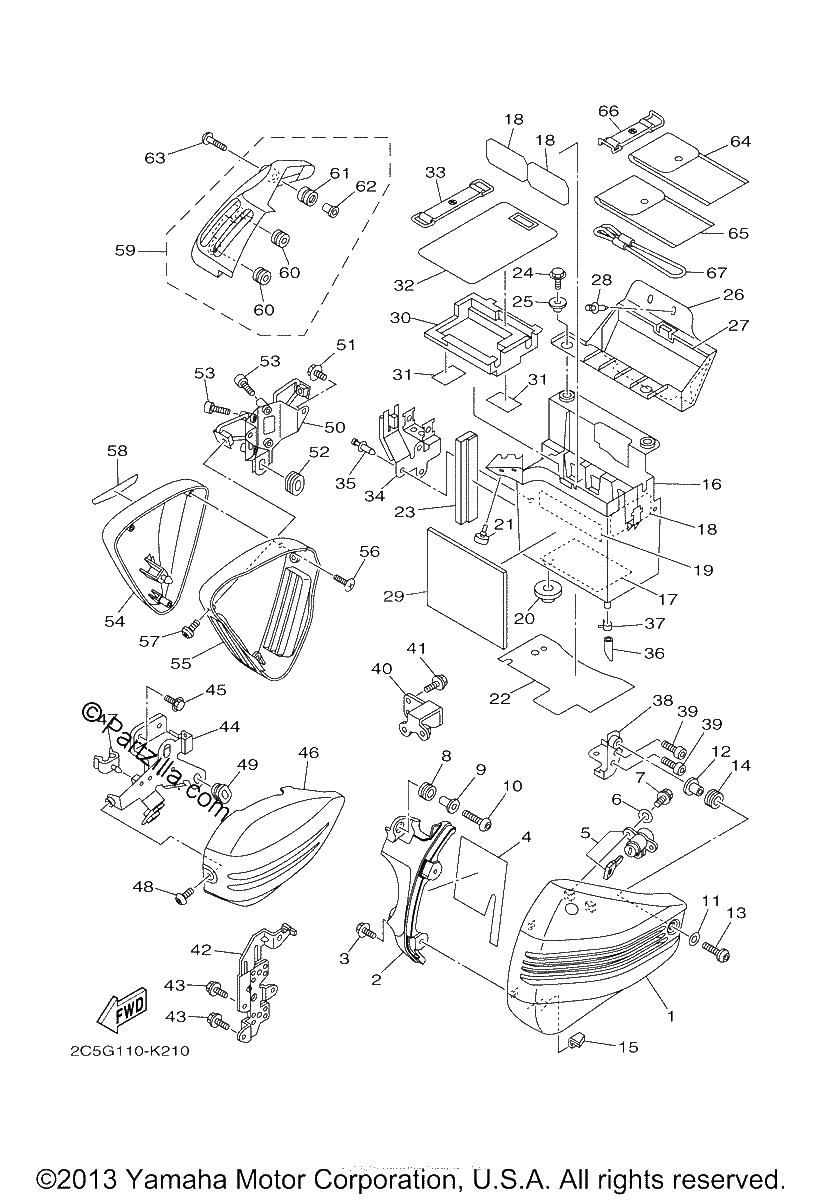

Diagrama de SIDE COVER

Repuestos

#1
1D7-21711-00-PD
COVER, SIDE 1 | UR FOR DPBMX
$248.89¢124 444
1
#2
1D7-2117X-00-00
COVER 9
$22.05¢11 025
1
#3
95817-06014-00
BOLT, FLANGE (replaces 95802-06014-00)
$2.65¢1 325
1
#4
1D7-21746-00-00
DAMPER
$31.27¢15 638
1
#5
5PX-W2470-00-00
ROTOR SET
$148.15¢74 075
1
#6
90201-06034-00
WASHER, PLATE
$7.75¢3 875
1
#7
95024-06016-00
BOLT, WASHER BASED
$7.94¢3 969
1
#8
90480-14329-00
GROMMET
$7.94¢3 969
1
#9
90387-066Y6-00
COLLAR
$8.31¢4 156
1
#10
92014-06020-00
BOLT, BUTTON HEAD
$8.24¢4 119
1
#11
90201-06M01-00
WASHER, PLATE
$7.79¢3 894
1
#12
90560-06201-00
SPACER
$14.52¢7 262
1
#13
90149-06023-00
SCREW
$5.50¢2 750
1
#14
90480-12007-00
GROMMET
$7.43¢3 713
1
#15
5PX-2171H-00-00
GUIDE
$10.99¢5 494
1
#16
1D7-2177G-02-00
BOX, BATTERY
No Disponible
1
#17
5PX-21779-00-00
DAMPER, LOCATING 2
$4.60¢2 300
1
#18
5PX-21652-00-00
PROTECTOR
$9.19¢4 594
1
#19
5PX-21778-00-00
DAMPER, LOCATING 1
$2.71¢1 356
1
#20
90480-20384-00
GROMMET
$5.17¢2 588
1
#21
1D7-2174X-00-00
DAMPER
$6.63¢3 313
1
#22
1D7-2177N-01-00
DAMPER, LOCATING 4
$30.36¢15 181
1
#23
1D7-21778-00-00
DAMPER, LOCATING 1
$40.32¢20 162
1
#24
95022-06020-00
BOLT, FLANGE
$3.96¢1 981
1
#25
90387-06267-00
COLLAR
$6.44¢3 219
1
#26
1D7-28173-00-00
BOX, TOOL
$34.85¢17 425
1
#27
5PX-2174Y-01-00
DAMPER
$17.44¢8 719
1
#28
90269-07077-00
RIVET
$8.25¢4 125
1
#29
1D7-21732-00-00
SEAL 1
$22.68¢11 338
1
#30
5PX-82129-00-00
COVER, BATTERY
$33.50¢16 750
1
#31
5JW-2139X-00-00
DAMPER
$3.73¢1 863
1
#32
5VN-8412H-00-00
STAY SETTING
$25.85¢12 925
1
#33
7H3-82131-00-00
BAND,BATTERY (replaces 18G-82131-00-00)
$19.11¢9 556
1
#34
1D7-2172K-00-00
BRACKET 1
$26.88¢13 438
1
#35
90269-07077-00
RIVET
$8.25¢4 125
1
#36
90445-11027-00
HOSE
$0.93¢463
1
#37
90467-10135-00
CLIP
$8.24¢4 119
1
#38
1D7-2175T-00-00
BRACKET 1
$30.72¢15 362
1
#39
90110-06114-00
BOLT, HEXAGON SOCKET HEAD
$8.39¢4 194
1
#39
92012-06016-00
BOLT, BUTTON HEAD
$7.41¢3 706
1
#40
1D7-2172N-01-00
BRACKET 4
$27.73¢13 863
1
#41
95817-06014-00
BOLT, FLANGE (replaces 95802-06014-00)
$2.65¢1 325
1
#42
5PX-2174E-01-00
STAY, SIDE COVER 2
$32.27¢16 138
1
#43
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
#44
1D7-2175V-00-00
BRACKET 3
$82.58¢41 288
1
#45
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
1
#46
1D7-21731-01-00
COVER, SIDE 3
$163.01¢81 506
1
#47
90464-09130-00
CLAMP
$1.56¢781
1
#48
90149-05299-00
SCREW
$4.24¢2 119
1
#49
90480-01558-00
Grommet
$4.69¢2 344
1
#50
1D7-2175W-00-00
BRACKET 4
$130.65¢65 325
1
#51
95022-06010-00
BOLT, FLANGE
$6.49¢3 244
1
#52
90480-01558-00
Grommet
$4.69¢2 344
1
#54
1D7-21741-01-00
COVER, SIDE 4
$120.59¢60 294
1
#55
1D7-2171D-00-00
BODY
$44.07¢22 037
1
#56
90167-05077-00
SCREW, TAPPING
$2.86¢1 431
1
#57
90149-06302-00
SCREW
$5.11¢2 556
1
#58
1D7-2173D-00-00
EMBLEM 3D
$45.51¢22 756
1
#59
1D7-17471-00-PE
PLATE, COVER | UR FOR DPBMX
No Disponible
1
#60
90480-13007-00
GROMMET
$5.44¢2 719
1
#61
90480-13006-00
GROMMET
No Disponible
1
#62
90387-07007-00
COLLAR
$7.43¢3 713
1
#63
90110-06202-00
BOLT, HEXAGON SOCKET HEAD
$6.76¢3 381
1
#64
1D7-28100-00-00
TOOL KIT
$87.16¢43 581
1
#65
1D7-28110-00-00
TOOL KIT, 2
$51.06¢25 531
1
#66
116-82131-00-00
BAND, BATTERY
$31.50¢15 750
1
#67
4HC-21398-00-00
HANGER, HELMET
$34.74¢17 369
1
