CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

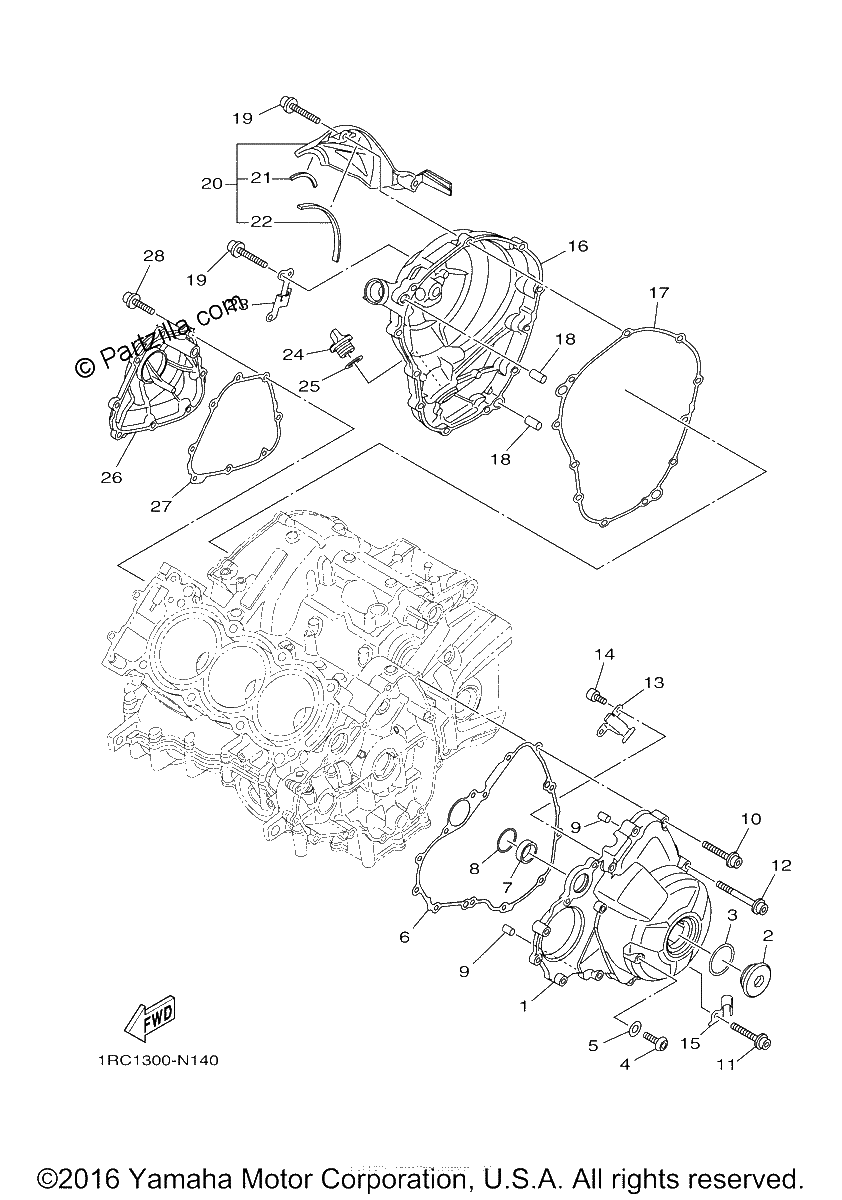

Diagrama de CRANKCASE COVER 1

Repuestos

#1
1RC-15411-00-00
COVER, CRANKCASE 1
$127.60¢63 802
1
#2
90340-36005-00
PLUG, STRAIGHT SCREW
$28.34¢14 168
1
#3
93210-357A3-00
O-RING
$0.54¢270
1
#4
92017-08012-00
BOLT, BUTTON HEAD
$6.76¢3 381
1
#5
90430-08143-00
GASKET
$3.38¢1 691
1
#6
1RC-15451-00-00
GASKET, CRANKCASE COVER 1
$17.99¢8 993
1
#7
1RC-12564-00-00
PIPE, WATER
$6.51¢3 254
1
#8
93210-28543-00
O-RING
$3.10¢1 553
1
#9
99530-08012-00
PIN, DOWEL
$5.75¢2 875
1
#10
90110-06388-00
BOLT, HEXAGON SOCKET HEAD
$5.37¢2 685
1
#11
90110-06388-00
BOLT, HEXAGON SOCKET HEAD
$5.37¢2 685
1
#12
90110-06394-00
BOLT, HEXAGON SOCKET HEAD
$1.94¢972
1
#13
1RC-15484-00-00
CLAMP 2
$5.07¢2 536
1
#14
91312-06014-00
bolt
$5.20¢2 599
1
#15
1RC-15199-00-00
BRACKET
$4.74¢2 369
1
#16
1RC-15421-00-00
COVER, CRANKCASE 2
$112.23¢56 114
1
#17
1RC-15461-00-00
GASKET, CRANKCASE COVER 2
$26.15¢13 075
1
#18
93610-20189-00
PIN, DOWEL
$3.79¢1 897
1
#19
90110-06388-00
BOLT, HEXAGON SOCKET HEAD
$5.37¢2 685
1
#20
1RC-15490-00-00
COVER ASSY
$39.58¢19 792
1
#21
1RC-15789-00-00
DAMPER
$3.21¢1 604
1
#22
90520-03014-00
DAMPER, PLATE
$4.57¢2 283
1
#23
1RC-15191-00-00
PLATE
$5.07¢2 536
1
#24
5GJ-15363-10-00
PLUG, OIL
$20.00¢9 999
1
#25
93210-19123-00
O-Ring
$7.58¢3 789
1
#26
1RC-15416-00-00
COVER, OIL PUMP
$77.43¢38 715
1
#27
1RC-15456-00-00
GASKET, OIL PUMP COVER 1
$11.10¢5 549
1
#28
90110-06396-00
BOLT, HEXAGON SOCKET HEAD
$2.74¢1 368
1
