GEAR CHANGE MECHANISM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

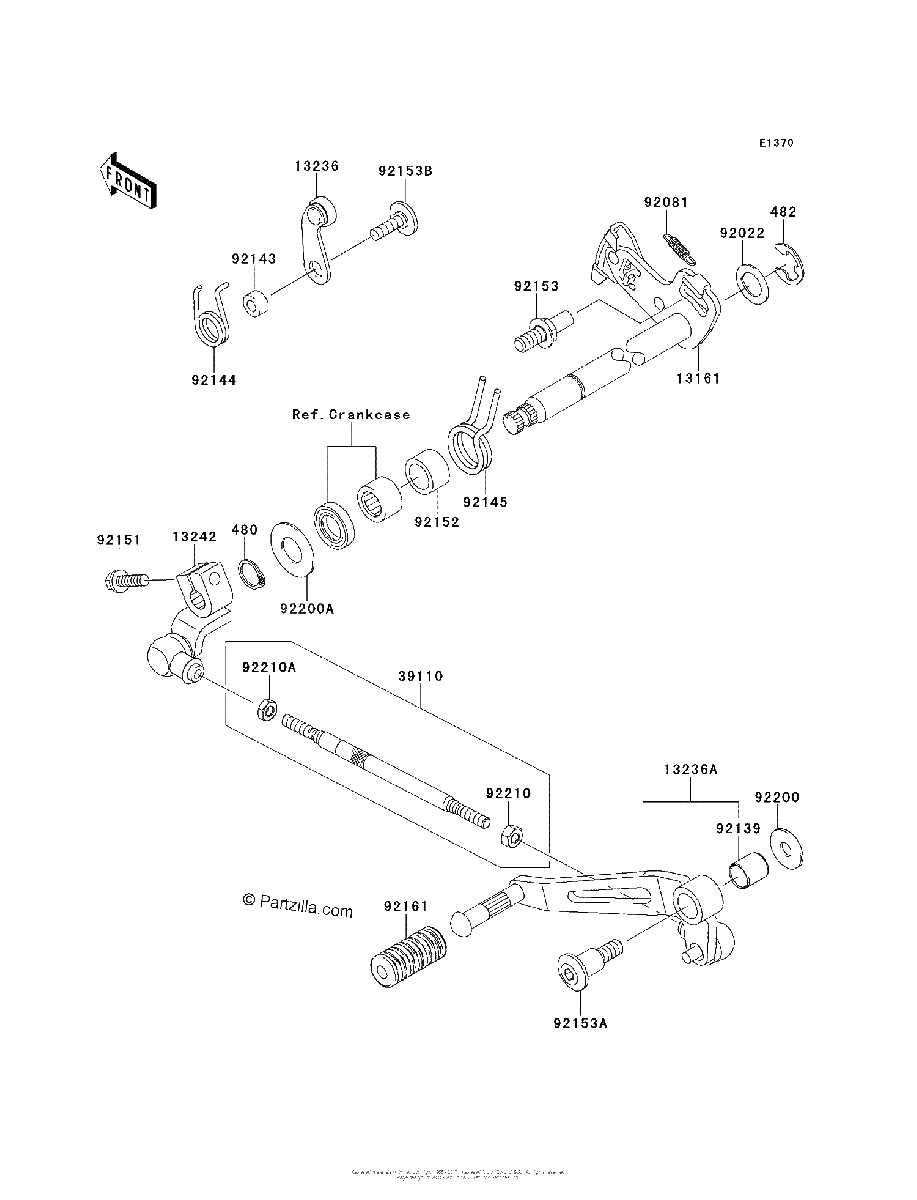

Diagrama de GEAR CHANGE MECHANISM

Repuestos

#480
480J1400
CIRCLIP-TYPE-C,14MM
$4.96¢2 481
1
#482
482J0200
CIRCLIP-TYPE-E,12MM
$4.13¢2 063
1
#13161
13161-0557
LEVER-COMP-CHANGE SHAFT
$109.90¢54 950
1
#13236
13236-0068
LEVER-COMP
$14.35¢7 175
1
#13236A
13236-0185
LEVER-COMP,CHANGE PEDAL
No Disponible
1
#13242
13242-0059
LEVER Assembly CHANGE
$61.22¢30 612
1
#39110
39110-0033
ROD-ASSY-TIE
$25.35¢12 675
1
#92022
92022-1628
WASHER,CHANGE SHAFT
$6.69¢3 344
1
#92081
92081-1708
SPRING,PAWL RETURN
$6.63¢3 313
1
#92139
92139-0023
BUSHING
$3.65¢1 825
1
#92143
92143-1595
COLLAR
$10.79¢5 394
1
#92144
92144-1523
SPRING,GEAR POSITION
$10.02¢5 012
1
#92145
92145-1122
SPRING
$10.97¢5 488
1
#92151
92151-1226
BOLT,FLANGED,6X20
$2.29¢1 144
1
#92152
92152-1383
COLLAR,14.2X19.9X12.0
$4.16¢2 081
1
#92153A
92153-0446
BOLT,SOCKET,8X16.7
$10.02¢5 012
1
#92153B
92153-1505
BOLT,6X20
$8.91¢4 456
1
#92153
92153-0421
BOLT,RETURN SPRING
$10.31¢5 156
1
#92161
92161-1300
DAMPER,CHANGE PEDAL
$6.05¢3 025
1
#92200A
92200-0265
WASHER
$2.41¢1 206
1
#92200
92200-0174
WASHER,8.0X22.0X1.5
$2.41¢1 206
1
#92210
92210-1100
NUT,6MM
$2.19¢1 094
1
#92210A
92210-1101
NUT,LEFT HANDED,6MM
$1.56¢781
1
