CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

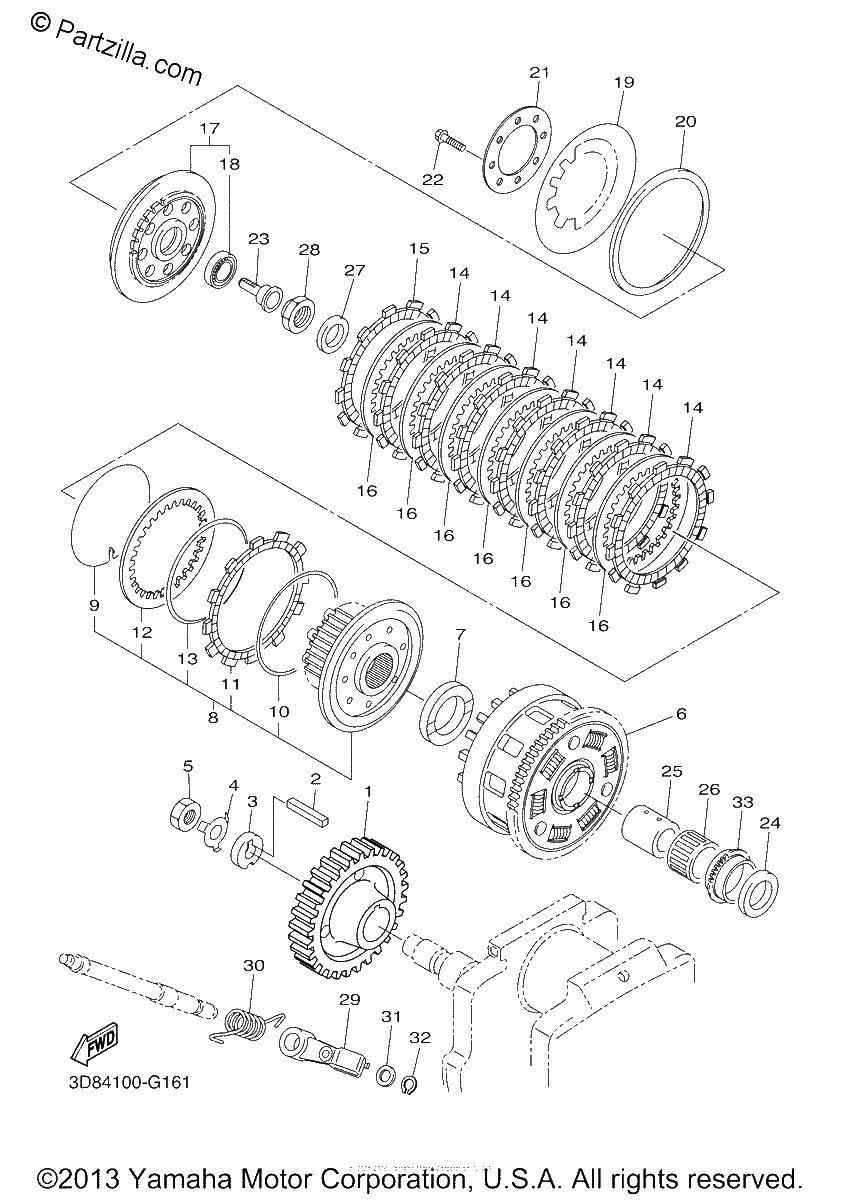

Diagrama de CLUTCH

Repuestos

#1
3D8-16111-10-00
GEAR, PRIMARY DRIVE
$262.53¢131 263
1
#2
90282-10001-00
KEY, STRAIGHT
$22.97¢11 487
1
#3
3D8-16181-10-00
SPACER 1
$56.15¢28 075
1
#4
90215-18003-00
WASHER, LOCK
$10.41¢5 206
1
#5
90170-18008-00
NUT
$14.09¢7 044
1
#6
3D8-16150-20-00
PRIMARY DRIVEN GEAR COMP.
$711.00¢355 500
1
#7
5YU-16154-00-00
PLATE, THRUST 1
$32.67¢16 337
1
#8
3D8-16370-00-00
CLUTCH BOSS ASSY
$315.04¢157 519
1
#9
2H7-16385-00-00
RING SET
$26.16¢13 081
1
#10
36Y-16384-00-00
PLATE, SEAT
$27.07¢13 538
1
#11
4XV-16331-00-00
PLATE, FRICTION 2
$25.46¢12 731
1
#12
2H7-16325-00-00
PLATE, CLUTCH 2
$13.54¢6 769
1
#13
36Y-16383-00-00
SPRING.,CUSHION
$69.39¢34 694
1
#14
5JW-16321-10-00
PLATE, FRICTION
$31.39¢15 694
1
#15
341-16321-20-00
PLATE, FRICTION
$16.90¢8 450
1
#16
2H7-16325-00-00
PLATE, CLUTCH 2
$13.54¢6 769
1
#17
3D8-16350-00-00
PRESSURE PLATE ASSY
$125.11¢62 556
1
#18
93306-00315-00
BEARING
$33.26¢16 631
1
#19
1TX-16334-00-00
SPRING, CLUTCH 2
$138.60¢69 300
1
#20
36Y-16335-00-00
HOUSING, SPRING
$37.81¢18 906
1
#21
1TX-16352-00-00
PLATE, PRESSURE 2
$40.00¢20 000
1
#22
95817-06025-00
BOLT,FLANGE (replaces 90105-06125-00)
$1.75¢875
1
#23
4XV-16356-01-00
ROD, PUSH 1
$60.88¢30 438
1
#24
3D8-16164-10-00
PLATE, THRUST 2
$67.25¢33 625
1
#25
90387-26006-00
COLLAR
$44.52¢22 263
1
#26
93310-33560-00
BEARING
$37.81¢18 906
1
#27
90208-20001-00
WASHER, CONICAL SPRING
$17.49¢8 744
1
#28
90179-20007-00
NUT
$15.14¢7 569
1
#29
3D8-16340-00-00
PUSH LEVER ASSY
$33.98¢16 988
1
#30
90508-18040-00
SPRING, TORSION
$5.10¢2 550
1
#31
90201-10029-00
WASHER, PLATE
$7.48¢3 738
1
#32
99009-10400-00
CIRCLIP
$4.65¢2 325
1
#33
3D8-13354-10-00
SPROCKET, DRIVE
$104.26¢52 131
1
