COWLING 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

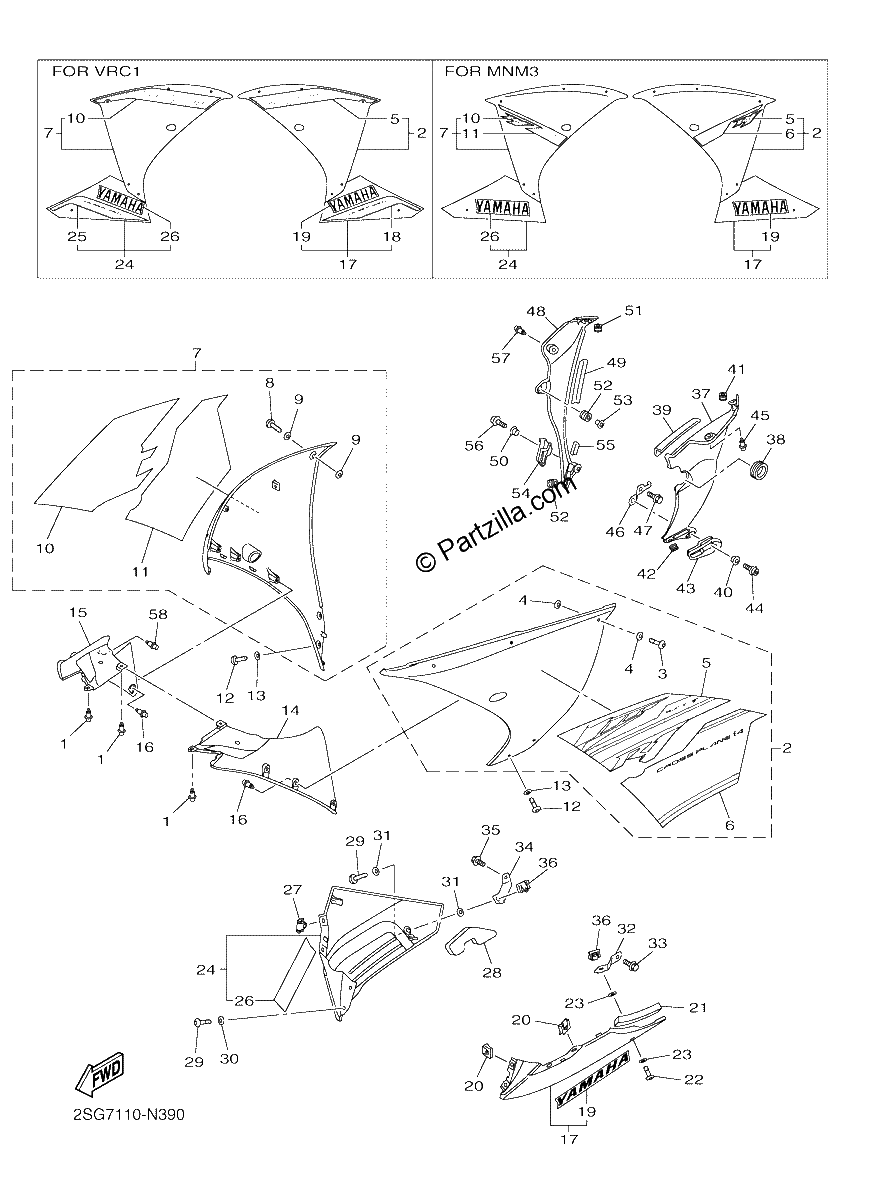

Diagrama de COWLING 2

Repuestos

#1
90269-06008-00
RIVET
$8.80¢4 400
1
#2
14B-W283U-2D-P7
PANEL ASSY 1 (VIVID RED COCKTAIL 1) *{UR FOR VRC1}*
$487.14¢243 569
1
#3
14B-28386-00-00
HEAD
$11.34¢5 669
1
#4
2TK-21757-00-00
WASHER,SPECIAL 1
$2.05¢1 025
1
#5
2SG-28391-10-00
GRAPHIC 1 (VIVID RED COCKTAIL 1) *{UR FOR VRC1}*
$97.86¢48 931
1
#7
14B-W283V-2D-P7
PANEL ASSY 2 (VIVID RED COCKTAIL 1) *{UR FOR VRC1}*
$487.14¢243 569
1
#8
14B-28386-00-00
HEAD
$11.34¢5 669
1
#9
2TK-21757-00-00
WASHER,SPECIAL 1
$2.05¢1 025
1
#10
2SG-28392-10-00
GRAPHIC 2 (VIVID RED COCKTAIL 1) *{UR FOR VRC1}*
$87.79¢43 894
1
#12
14B-28386-00-00
HEAD
$11.34¢5 669
1
#13
90202-06005-00
WASHER, plate
$3.38¢1 688
1
#14
14B-2836K-00-00
PANEL, INNER 1
$88.90¢44 450
1
#15
14B-2836L-00-00
PANEL, INNER 2
$90.47¢45 238
1
#16
90269-06008-00
RIVET
$8.80¢4 400
1
#17
14B-W2838-H0-P6
UNDER COVER COMP. 1 (VIVID RED COCKTAIL 1) *{UR FOR VRC1}*
$198.86¢99 431
1
#18
2SG-283A1-00-00
GRAPHIC, UNDER COVER 1 (VIVID RED COCKTAIL 1) *{FOR VRC1}*
$90.17¢45 088
1
#19
99244-00240-00
EMBLEM, YAMAHA (VIVID RED COCKTAIL 1) *{UR FOR VRC1}*
$10.65¢5 325
1
#20
5PW-2177L-00-00
Plate, Spring
$7.41¢3 706
1
#21
90520-30004-00
DAMPER, PLATE
$12.76¢6 381
1
#22
14B-28386-00-00
HEAD
$11.34¢5 669
1
#23
2TK-21757-00-00
WASHER,SPECIAL 1
$2.05¢1 025
1
#24
14B-W2839-H0-P6
UNDER COVER COMP. 2 (VIVID RED COCKTAIL 1) *{UR FOR VRC1}*
$266.76¢133 381
1
#25
2SG-283A2-00-00
GRAPHIC, UNDER COVER 2 (VIVID RED COCKTAIL 1) *{FOR VRC1}*
$90.17¢45 088
1
#26
99244-00240-00
EMBLEM, YAMAHA (VIVID RED COCKTAIL 1) *{UR FOR VRC1}*
$10.65¢5 325
1
#27
5PW-2177L-00-00
Plate, Spring
$7.41¢3 706
1
#28
14B-28371-10-00
Damper
$8.92¢4 462
1
#29
14B-28386-00-00
HEAD
$11.34¢5 669
1
#30
90202-06005-00
WASHER, plate
$3.38¢1 688
1
#31
2TK-21757-00-00
WASHER,SPECIAL 1
$2.05¢1 025
1
#32
14B-2836A-00-00
BRACKET 1
$18.77¢9 388
1
#33
95802-06016-00
Bolt, Flange
$1.79¢894
1
#34
14B-2836E-00-00
BRACKET 2
$21.32¢10 663
1
#35
90105-06174-00
Bolt, Flange
$1.79¢894
1
#36
5PW-2177L-00-00
Plate, Spring
$7.41¢3 706
1
#37
14B-2836M-10-P7
PANEL, INNER 3 (VIVID RED COCKTAIL 1) *{UR FOR VRC1}*
$205.34¢102 669
1
#38
14B-2836T-00-00
DAMPER, locating 1
$5.70¢2 850
1
#39
90520-05011-00
DAMPER, PLATE
$8.61¢4 306
1
#40
90560-08251-00
SPACER
$8.92¢4 462
1
#41
90480-08006-00
Grommet
$3.74¢1 869
1
#42
90480-12596-00
GROMMET
$10.86¢5 431
1
#43
14B-283C1-00-00
STOPPER, RUBBER 1
$11.34¢5 669
1
#44
90110-06163-00
BOLT, HEXAGON SOCKET
$9.13¢4 563
1
#45
90269-07077-00
RIVET
$8.25¢4 125
1
#46
14B-28321-00-00
STAY 1
$27.83¢13 913
1
#47
95802-06012-00
Bolt, Flange
$1.79¢894
1
#48
14B-2836N-10-P7
PANEL, INNER 4 (VIVID RED COCKTAIL 1) *{UR FOR VRC1}*
$218.89¢109 444
1
#49
3NU-21732-00-00
SEAL 1
$6.52¢3 262
1
#50
90560-08251-00
SPACER
$8.92¢4 462
1
#51
90480-08006-00
Grommet
$3.74¢1 869
1
#52
90480-12596-00
GROMMET
$10.86¢5 431
1
#53
90387-065J6-00
Collar
$7.60¢3 800
1
#54
14B-283C2-00-00
STOPPER, RUBBER 2
$10.39¢5 194
1
#55
4B5-2847F-00-00
SEAL 5
$10.39¢5 194
1
#56
90110-06163-00
BOLT, HEXAGON SOCKET
$9.13¢4 563
1
#57
90269-07077-00
RIVET
$8.25¢4 125
1
#58
90269-06008-00
RIVET
$8.80¢4 400
1
