OIL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

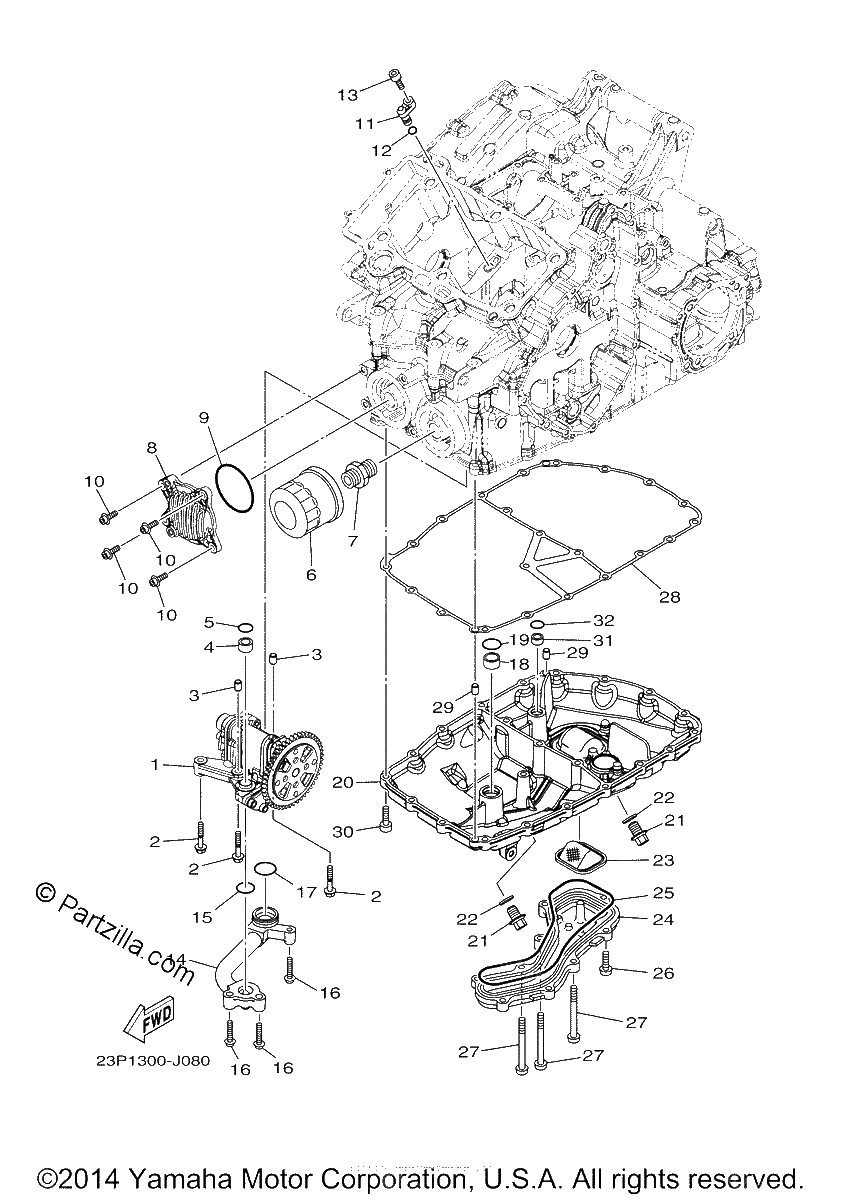

Diagrama de OIL PUMP

Repuestos

#1
23P-13300-00-00
OIL PUMP ASSY
$616.38¢308 189
1
#2
95812-06035-00
BOLT,FLANGE
$6.06¢3 030
1
#2
95817-06035-00
BOLT, FLANGE
$5.89¢2 944
1
#3
99530-08012-00
PIN, DOWEL
$5.75¢2 875
1
#4
90387-13005-00
COLLAR
$2.40¢1 202
1
#5
93210-15566-00
O-RING
$6.32¢3 162
1
#6
5GH-13440-50-00
ELEMENT ASSY, OIL CLEANER
$15.49¢7 745
1
#6
5GH-13440-80-00
ELEMENT ASSY, OIL CLEANER
$15.49¢7 745
1
#7
90401-20008-00
BOLT, UNION
$21.02¢10 511
1
#8
23P-13461-00-00
PLATE, ADAPTOR
$79.21¢39 606
1
#9
93210-60426-00
O-RING
$9.46¢4 732
1
#10
90110-06348-00
BOLT, HEXAGON SOCKET (replaces 90110-06347-00)
$3.21¢1 604
1
#10
90110-06347-00
BOLT, HEXAGON SOCKET HEAD
$3.21¢1 604
1
#11
23P-15155-00-00
NOZZLE 3
$53.28¢26 640
1
#12
93210-06632-00
O-Ring
$7.30¢3 651
1
#13
91317-06016-00
BOLT
$1.35¢673
1
#14
23P-13416-00-00
PIPE, OIL 1
$227.37¢113 683
1
#15
93210-23326-00
O-RING
$6.75¢3 375
1
#16
90110-06345-00
BOLT, HEXAGON SOCKET HEAD
$6.87¢3 433
1
#16
90110-06346-00
BOLT, HEXAGON SOCKET HEAD
$6.87¢3 433
1
#17
93210-27778-00
O-RING
$7.56¢3 778
1
#18
23P-13117-00-00
COLLAR, DISTANCE
$5.20¢2 599
1
#19
93210-19003-00
O-RING
$7.72¢3 858
1
#20
23P-13417-00-00
COVER, STRAINER
$395.01¢197 507
1
#21
90340-12001-00
PLUG, STRAIGHT SCREW
$4.45¢2 225
1
#22
90430-12213-00
GASKET
$5.58¢2 789
1
#23
23P-13421-00-00
STRAINER 2
$44.03¢22 017
1
#24
23P-13447-00-00
COVER, OIL ELEMENT
$147.18¢73 589
1
#25
23P-13449-00-00
GASKET, ELEMENT COVER
$25.22¢12 610
1
#26
90149-06159-00
SCREW
$6.01¢3 007
1
#27
90149-06143-00
SCREW
$5.14¢2 570
1
#28
23P-13414-00-00
GASKET, STRAINER COVER
$38.67¢19 337
1
#29
99530-08012-00
PIN, DOWEL
$5.75¢2 875
1
#30
91317-06025-00
BOLT
$2.24¢1 121
1
#31
90387-106W6-00
COLLAR
$13.10¢6 549
1
#32
93210-12790-00
O-RING
$6.30¢3 151
1
