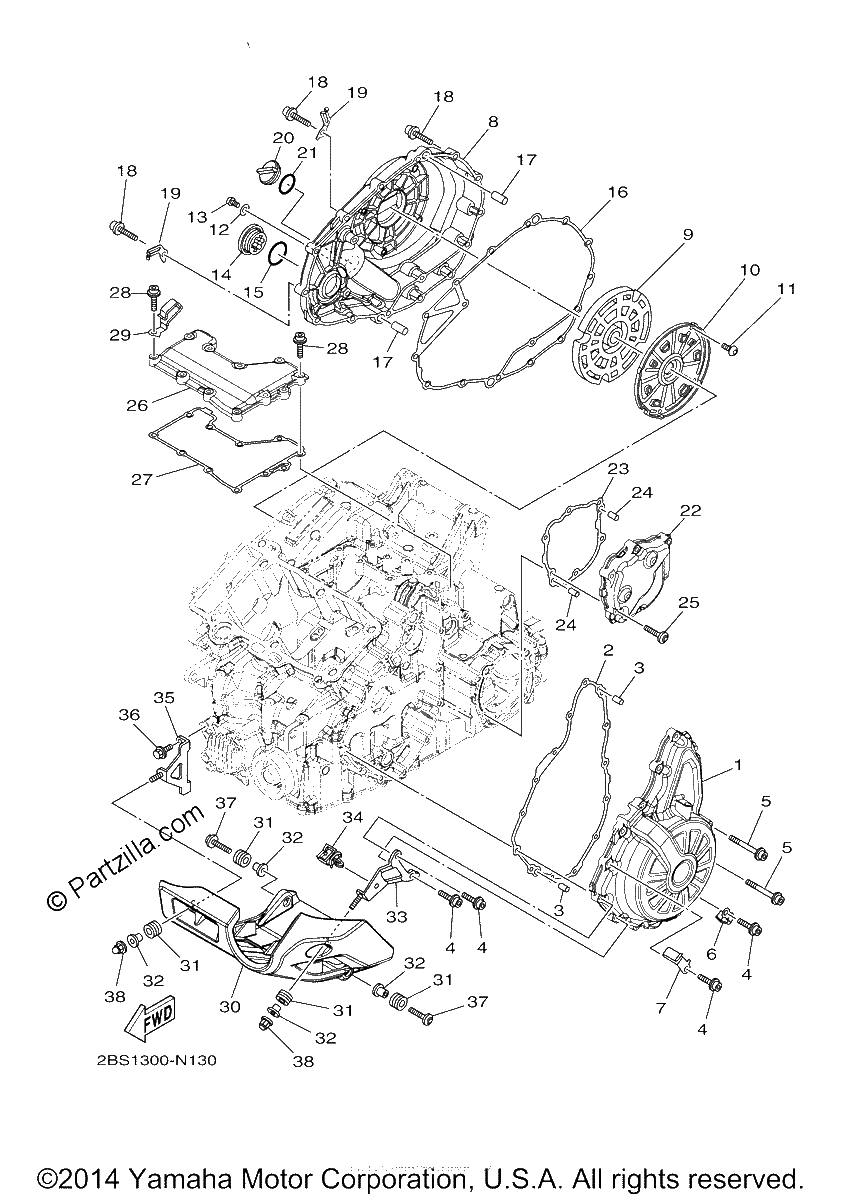

CRANKCASE COVER 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COVER, CRANKCASE 1
$159.75¢79 873
#2
GASKET, CRANKCASE COVER 1
$24.12¢12 058
#3
PIN, DOWEL
$5.75¢2 875
#4
BOLT, HEXAGON SOCKET (replaces 90110-06390-00)
$2.71¢1 357
#5
BOLT, HEXAGON SOCKET HEAD
$3.71¢1 857
#6
CLAMP
$5.30¢2 651
#7
BRACKET
$7.18¢3 588
#8
COVER, CRANKCASE 2
$309.98¢154 991
#9
DAMPER 1
$31.60¢15 801
#10
COVER
$11.22¢5 612
#11
SCREW
$6.96¢3 479
#12
GASKET
$3.38¢1 691
#13
BOLT, HEX. SOCKET BUTTON
$3.21¢1 604
#14
PLUG, STRAIGHT SCREW
$27.34¢13 668
#15
O-Ring
$6.32¢3 162
#16
GASKET, CRANKCASE COVER 2
$35.12¢17 560
#17
PIN, DOWEL
$3.79¢1 897
#18
BOLT, HEXAGON SOCKET HEAD
$5.37¢2 685
#19
CLAMP
$4.05¢2 024
#20
PLUG, OIL LEVEL
$21.09¢10 545
#20
PLUG, OIL LEVEL
$21.09¢10 545
#21
O-RING
$7.56¢3 778
#22
COVER, CRANKCASE 3
$110.74¢55 372
#23
GASKET, CRANKCASE COVER 3
$14.14¢7 073
#24
PIN, DOWEL
$5.75¢2 875
#25
SCREW
$1.89¢943
#26
COVER, 1
$109.02¢54 510
#27
GASKET 1
$15.23¢7 613
#28
BOLT, HEXAGON SOCKET HEAD
$2.58¢1 288
#29
CLAMP
$8.11¢4 054
#30
PROTECTOR
$50.90¢25 449
#31
GROMMET
$9.99¢4 997
#32
COLLAR
$8.79¢4 393
#33
STAY 1
$13.86¢6 929
#34
CLAMP
$3.58¢1 788
#35
STAY 2
$17.19¢8 596
#36
BOLT, FLANGE
$6.89¢3 444
#37
SCREW
$4.70¢2 352
#38
NUT, CAP
$7.52¢3 760
