RADIATOR HOSE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

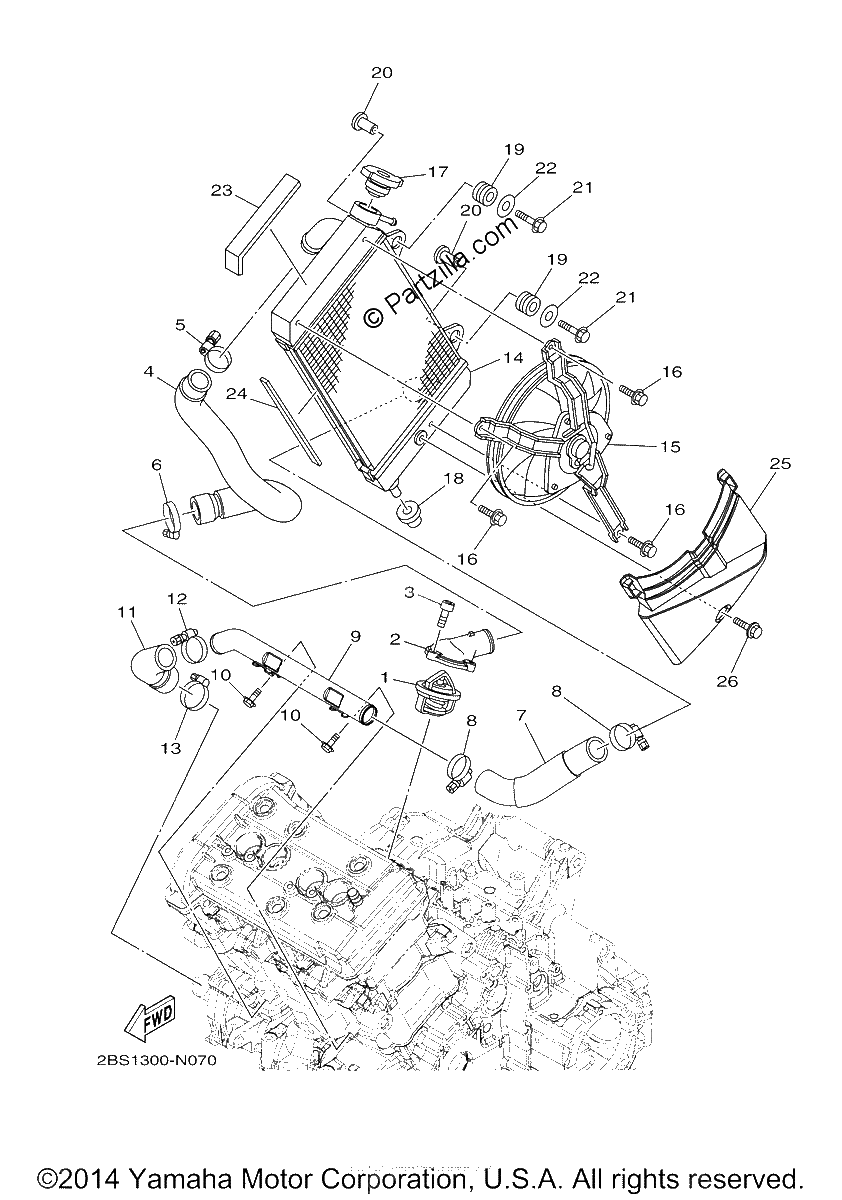

Diagrama de RADIATOR HOSE

Repuestos

#1
23P-12410-00-00
THERMOSTAT ASSY
$53.30¢26 651
1
#2
23P-12413-00-00
COVER, THERMOSTAT
$24.66¢12 328
1
#3
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.24¢1 121
1
#4
23P-12576-00-00
HOSE 1
$72.21¢36 104
1
#5
90450-35001-00
HOSE CLAMP ASSY
$5.76¢2 881
1
#6
90450-38003-00
HOSE CLAMP ASSY
$16.33¢8 165
1
#7
23P-12578-00-00
HOSE 3
$28.23¢14 116
1
#8
90450-35001-00
HOSE CLAMP ASSY
$5.76¢2 881
1
#9
23P-12483-00-00
PIPE 3
$83.34¢41 670
1
#10
95824-06010-00
BOLT, FLANGE
$6.83¢3 415
1
#11
23P-12588-00-00
HOSE 5
$17.02¢8 510
1
#12
90450-35001-00
HOSE CLAMP ASSY
$5.76¢2 881
1
#13
90450-38003-00
HOSE CLAMP ASSY
$16.33¢8 165
1
#14
23P-12461-00-00
RADIATOR COMP
$626.45¢313 225
1
#15
23P-12405-01-00
BLOWER ASSY
$444.07¢222 036
1
#15
23P-12405-02-00
BLOWER ASSY (replaces 23P-12405-01-00)
$444.07¢222 036
1
#16
3D8-12675-00-00
BOLT, BLOWER HOLDING
$7.74¢3 870
1
#17
4FL-12462-00-00
CAP, RADIATOR
$62.33¢31 165
1
#18
90480-20003-00
GROMMET
$2.13¢1 064
1
#19
90480-17010-00
GROMMET
$4.13¢2 064
1
#20
90387-06256-00
COLLAR
$5.08¢2 541
1
#21
95812-06035-00
BOLT,FLANGE
$6.06¢3 030
1
#21
95817-06035-00
BOLT, FLANGE
$5.89¢2 944
1
#22
90201-06095-00
WASHER, PLATE (replaces 90201-06063-00)
$6.89¢3 444
1
#23
4D9-21747-00-00
DAMPER
$7.23¢3 617
1
#24
4FU-21747-00-00
DAMPER
$6.51¢3 254
1
#25
23P-2137V-00-00
GUIDE, AIR 2
$27.54¢13 771
1
#26
90119-06242-00
BOLT, WITH WASHER
$6.43¢3 214
1
