FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

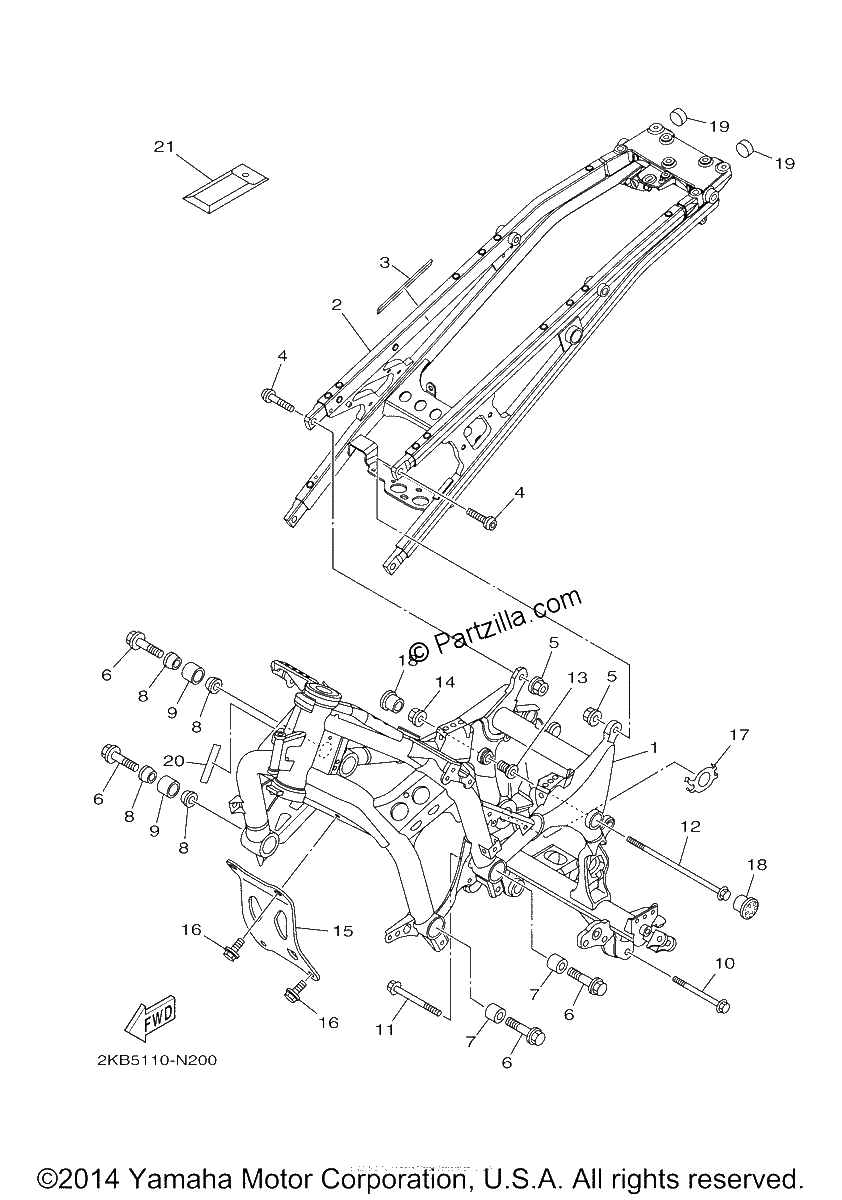

Diagrama de FRAME

Repuestos

#1
23P-21110-00-00
FRAME COMP.
$2897.49¢1 448 744
1
#1
23P-21110-01-00
FRAME COMP.
$2897.49¢1 448 744
1
#2
2KB-21190-10-00
REAR FRAME COMP.
No Disponible
1
#3
4D9-2837K-00-00
DAMPER 6
$1.44¢719
1
#4
90149-10003-00
SCREW
$10.40¢5 200
1
#5
95602-10200-00
NUT, U FLANGE
$2.73¢1 363
1
#6
90105-12077-00
BOLT, FLANGE
$5.29¢2 644
1
#7
23P-21116-00-00
COLLAR
$21.65¢10 825
1
#8
23P-21414-00-00
BOSS, ENGINE MOUNT
$18.94¢9 469
1
#9
23P-21424-00-00
BOSS, ENGINE MOUNT
$32.98¢16 488
1
#10
90105-10075-00
BOLT, FLANGE
$11.81¢5 906
1
#11
90105-10175-00
BOLT, FLANGE
$10.34¢5 169
1
#12
90105-10380-00
BOLT, FLANGE
$17.44¢8 719
1
#13
23P-21495-00-00
BOLT, ENGINE ADJUSTING
$13.40¢6 700
1
#14
90179-10028-00
NUT
$6.74¢3 369
1
#15
2BS-21318-00-00
STAY, ENGINE 4
$75.17¢37 588
1
#16
95812-12025-00
BOLT, FLANGE
$7.88¢3 938
1
#17
23P-2191B-00-00
PLATE 1
$7.33¢3 663
1
#18
2BS-2111A-00-00
CAP, MAIN PIPE
$5.11¢2 556
1
#19
3YX-2143A-00-00
CAP
$3.73¢1 863
1
#20
3HA-24141-00-00
PROTECTOR, FUEL TANK
$13.71¢6 856
1
#21
23P-28100-00-00
TOOL KIT
$61.06¢30 531
1
