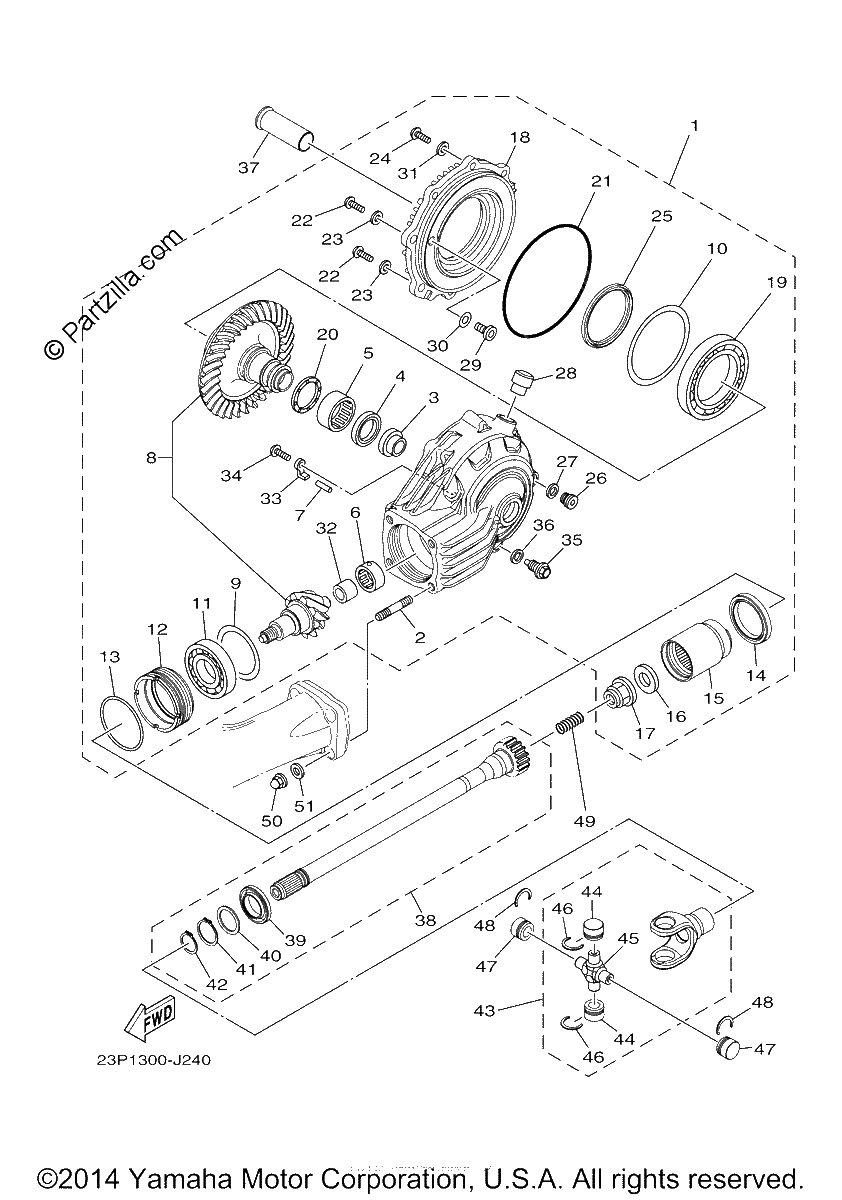

DRIVE SHAFT
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
SHIM, THRUST (T0.5) | UR
$10.08¢5 038
#0
SHIM, THRUST (T0.2) | UR
$10.08¢5 038
#0
SHIM, THRUST (2.0T) | UR
$10.85¢5 425
#0
SHIM, THRUST (1.8T) | UR
$10.96¢5 481
#0
SHIM, THRUST (T0.3) | UR
$10.08¢5 038
#0
SHIM, THRUST (T0.4) | UR
$10.08¢5 038
#0
SHIM, THRUST (1.6T) | UR
$11.00¢5 500
#0
SHIM, THRUST (T0.45) | UR
$10.08¢5 038
#0
SHIM, THRUST (1.2T) | UR
$10.85¢5 425
#0
SHIM, THRUST (T0.6) | UR
$10.08¢5 038
#0
SHIM, THRUST (T0.25) | UR
$10.08¢5 038
#0
SHIM, RING GEAR (0.50T) | UR
$12.13¢6 063
#0
SHIM, RING GEAR (0.40T) | UR
$14.35¢7 175
#0
SHIM, RING GEAR (0.30T) | UR
$7.90¢3 950
#0
SHIM, STOPPER (T=0.20) | UR
$4.46¢2 231
#1
REAR AXLE GEAR CASE ASSY
$2214.99¢1 107 494
#2
BOLT, STUD
$7.25¢3 625
#2
BOLT, STUD
$7.25¢3 625
#3
COLLAR, GUIDE
$27.13¢13 563
#4
Oil Seal
$19.90¢9 950
#5
BEARING
$83.58¢41 788
#6
BEARING
$66.58¢33 288
#7
PIN, DOWEL
$2.56¢1 281
#8
GEAR SET
$959.99¢479 994
#9
SHIM, THRUST (T0.5) | UR
$10.08¢5 038
#9
SHIM, THRUST (T0.25) | UR
$10.08¢5 038
#9
SHIM, THRUST (T0.2) | UR
$10.08¢5 038
#9
SHIM, THRUST (T0.6) | UR
$10.08¢5 038
#9
SHIM, THRUST (T0.4) | UR
$10.08¢5 038
#9
SHIM, THRUST (T0.3) | UR
$10.08¢5 038
#9
SHIM, THRUST (T0.15) | UR
$10.08¢5 038
#9
SHIM, THRUST (T0.45) | UR
$10.08¢5 038
#10
SHIM, RING GEAR (0.40T) | UR
$14.35¢7 175
#10
SHIM, RING GEAR (0.25T) | UR
$14.41¢7 206
#10
SHIM, RING GEAR (0.50T) | UR
$12.13¢6 063
#10
SHIM, RING GEAR (0.30T) | UR
$7.90¢3 950
#11
BEARING
$99.70¢49 850
#12
RETAINER, BEARING
$120.06¢60 031
#13
O-RING
$22.61¢11 306
#14
OIL SEAL
$34.76¢17 381
#15
COUPLING, GEAR
$199.79¢99 894
#16
WASHER, CONICAL SPRING
$17.49¢8 744
#17
NUT
$28.96¢14 481
#18
HOUSING, BEARING
$146.51¢73 256
#19
BEARING
$93.26¢46 631
#20
SHIM, THRUST (1.2T) | UR
$10.85¢5 425
#20
SHIM, THRUST (2.0T) | UR
$10.85¢5 425
#20
SHIM, THRUST (1.4T) | UR
$11.07¢5 538
#20
SHIM, THRUST (1.6T) | UR
$11.00¢5 500
#20
SHIM, THRUST (1.8T) | UR
$10.96¢5 481
#21
O-RING
$21.10¢10 550
#22
SCREW
$3.38¢1 688
#23
WASHER, PLATE
$7.34¢3 669
#24
SCREW
$1.99¢994
#25
OIL SEAL
$35.23¢17 613
#26
PLUG, STRAIGHT SCREW
$20.20¢10 100
#27
GASKET
$3.23¢1 613
#28
BREATHER COMP.
$28.05¢14 025
#29
STOPPER, RING GEAR
$17.79¢8 894
#30
SHIM, STOPPER (T=0.15) | UR
$3.73¢1 863
#30
SHIM, STOPPER (T=0.20) | UR
$4.46¢2 231
#31
WASHER, plate
$6.88¢3 438
#32
RACE, INNER
$37.16¢18 581
#33
HOLDER
$6.76¢3 381
#34
SCREW
$7.56¢3 781
#35
PLUG, STRAIGHT SCREW
$17.15¢8 575
#36
GASKET
$3.23¢1 613
#37
COLLAR, GUIDE 1
$48.06¢24 031
#38
SHAFT DRIVE ASSY
$324.40¢162 200
#39
OIL SEAL
$33.49¢16 744
#40
WASHER, PLATE
$9.47¢4 738
#41
CIRCLIP
$2.24¢1 119
#42
CIRCLIP
$7.10¢3 550
#43
CROSS JOINT COMP.
$276.31¢138 156
#44
BEARING
$27.36¢13 681
#45
SPIDER
$63.50¢31 750
#46
CIRCLIP
$3.86¢1 931
#47
BEARING
$27.36¢13 681
#48
CIRCLIP
$3.86¢1 931
#49
SPRING, COMPRESSION
$4.16¢2 081
#50
NUT, CROWN
$7.81¢3 906
#51
WASHER, PLATE
$3.29¢1 644
