CRANKSHAFT PISTON

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

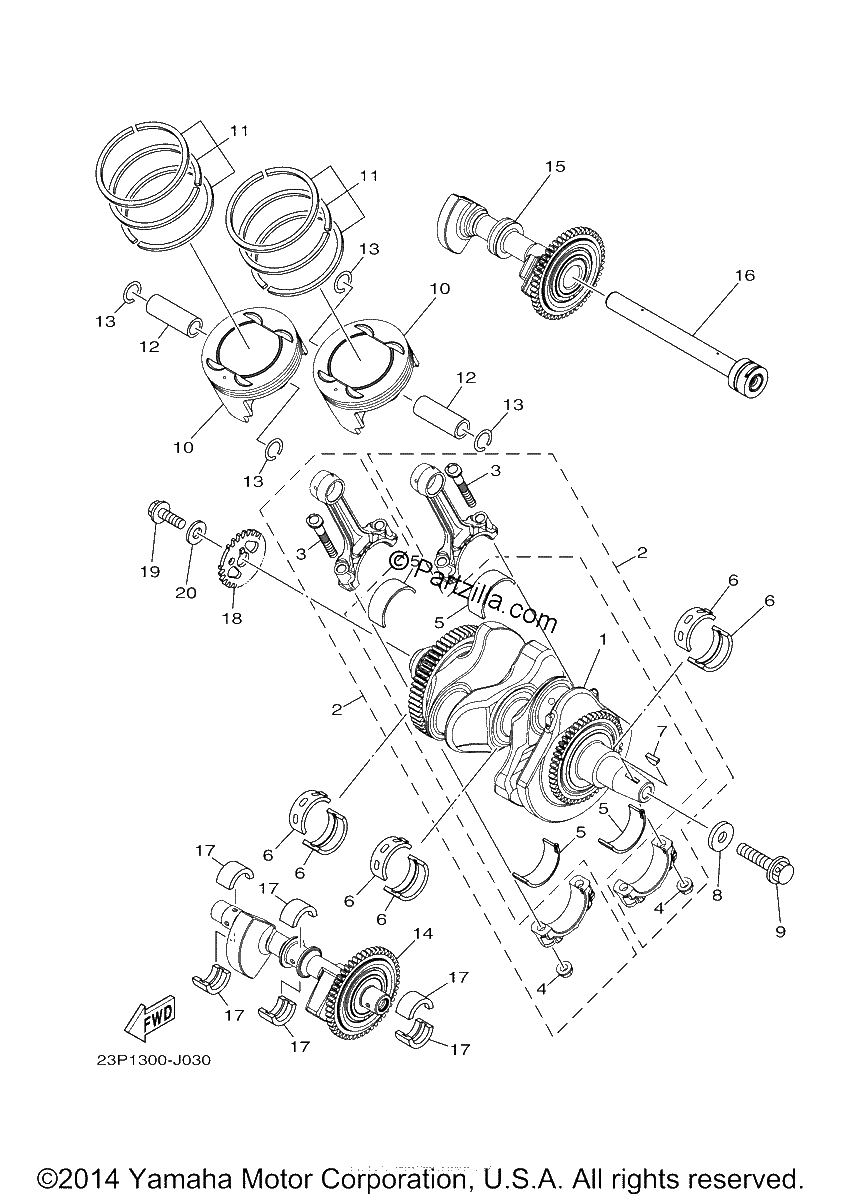

Diagrama de CRANKSHAFT PISTON

Repuestos

#0
23P-11656-30-00
PLANE BEARING, CONNECTING ROD | UR GREEN
$8.97¢4 488
1
#0
23P-11656-10-00
PLANE BEARING, CONNECTING ROD | UR BLACK
$9.85¢4 925
1
#0
23P-11416-00-00
PLANE BEARING, CRANKSHAFT 1 | UR BLUE
$20.45¢10 225
1
#0
2S3-11413-30-00
METAL, BALANCE WEIGHT | UR GREEN
$12.21¢6 106
1
#0
2S3-11413-20-00
METAL, BALANCE WEIGHT | UR BROWN
$14.11¢7 056
1
#0
23P-11416-20-00
PLANE BEARING, CRANKSHAFT 1 | UR BROWN
$23.35¢11 675
1
#0
2S3-11413-10-00
METAL, BALANCE WEIGHT | UR BLACK
$13.14¢6 569
1
#0
23P-11416-30-00
PLANE BEARING, CRANKSHAFT 1 | UR GREEN
$23.31¢11 656
1
#0
23P-11656-20-00
PLANE BEARING, CONNECTING ROD | UR BROWN
$8.97¢4 488
1
#0
23P-11416-40-00
PLANE BEARING, CRANKSHAFT 1 | UR YELLOW
$20.51¢10 256
1
#1
23P-11400-00-00
CRANKSHAFT ASSY
$1311.24¢655 619
1
#2
23P-11650-00-00
CONNECTING ROD ASSY
$244.53¢122 263
1
#3
23P-11654-00-00
BOLT, CONNECTING ROD
$3.77¢1 888
1
#4
90179-09379-00
NUT
$8.97¢4 488
1
#5
23P-11656-30-00
PLANE BEARING, CONNECTING ROD | UR GREEN
$8.97¢4 488
1
#5
23P-11656-00-00
PLANE BEARING, CONNECTING ROD | UR BLUE
$9.85¢4 925
1
#5
23P-11656-10-00
PLANE BEARING, CONNECTING ROD | UR BLACK
$9.85¢4 925
1
#5
23P-11656-20-00
PLANE BEARING, CONNECTING ROD | UR BROWN
$8.97¢4 488
1
#6
23P-11416-20-00
PLANE BEARING, CRANKSHAFT 1 | UR BROWN
$23.35¢11 675
1
#6
23P-11416-30-00
PLANE BEARING, CRANKSHAFT 1 | UR GREEN
$23.31¢11 656
1
#6
23P-11416-10-00
PLANE BEARING, CRANKSHAFT 1 | UR BLACK
$20.45¢10 225
1
#6
23P-11416-00-00
PLANE BEARING, CRANKSHAFT 1 | UR BLUE
$20.45¢10 225
1
#6
23P-11416-40-00
PLANE BEARING, CRANKSHAFT 1 | UR YELLOW
$20.51¢10 256
1
#7
90280-05029-00
KEY, WOODRUFF
$11.00¢5 500
1
#8
90201-12191-00
WASHER, PLATE
$7.28¢3 638
1
#9
90105-12005-00
BOLT, FLANGE
$26.43¢13 213
1
#10
2BS-11631-00-00
PISTON (STD)
$154.97¢77 488
1
#11
2BS-11603-00-00
PISTON RING SET (STD)
$40.65¢20 325
1
#11
2BS-11603-01-00
PISTON RING SET (STD)
$40.65¢20 325
1
#12
4WM-11633-00-00
PIN, PISTON
$44.52¢22 263
1
#13
93450-23167-00
CIRCLIP
$7.43¢3 713
1
#14
23P-11500-01-00
BALANCER ASSY
$602.84¢301 419
1
#15
23P-11510-01-00
BALANCER ASSY, 2
$477.21¢238 606
1
#16
23P-11583-00-00
SHAFT, BALANCER 1
$126.50¢63 250
1
#17
2S3-11413-30-00
METAL, BALANCE WEIGHT | UR GREEN
$12.21¢6 106
1
#17
2S3-11413-20-00
METAL, BALANCE WEIGHT | UR BROWN
$14.11¢7 056
1
#17
2S3-11413-10-00
METAL, BALANCE WEIGHT | UR BLACK
$13.14¢6 569
1
#17
2S3-11413-00-00
METAL, BALANCE WEIGHT | UR BLUE
$20.20¢10 100
1
#18
23P-81673-00-00
ROTOR
$26.11¢13 056
1
#19
90105-10153-00
BOLT, FLANGE
$6.91¢3 456
1
#20
90201-10065-00
WASHER, PLATE
$2.56¢1 281
1
