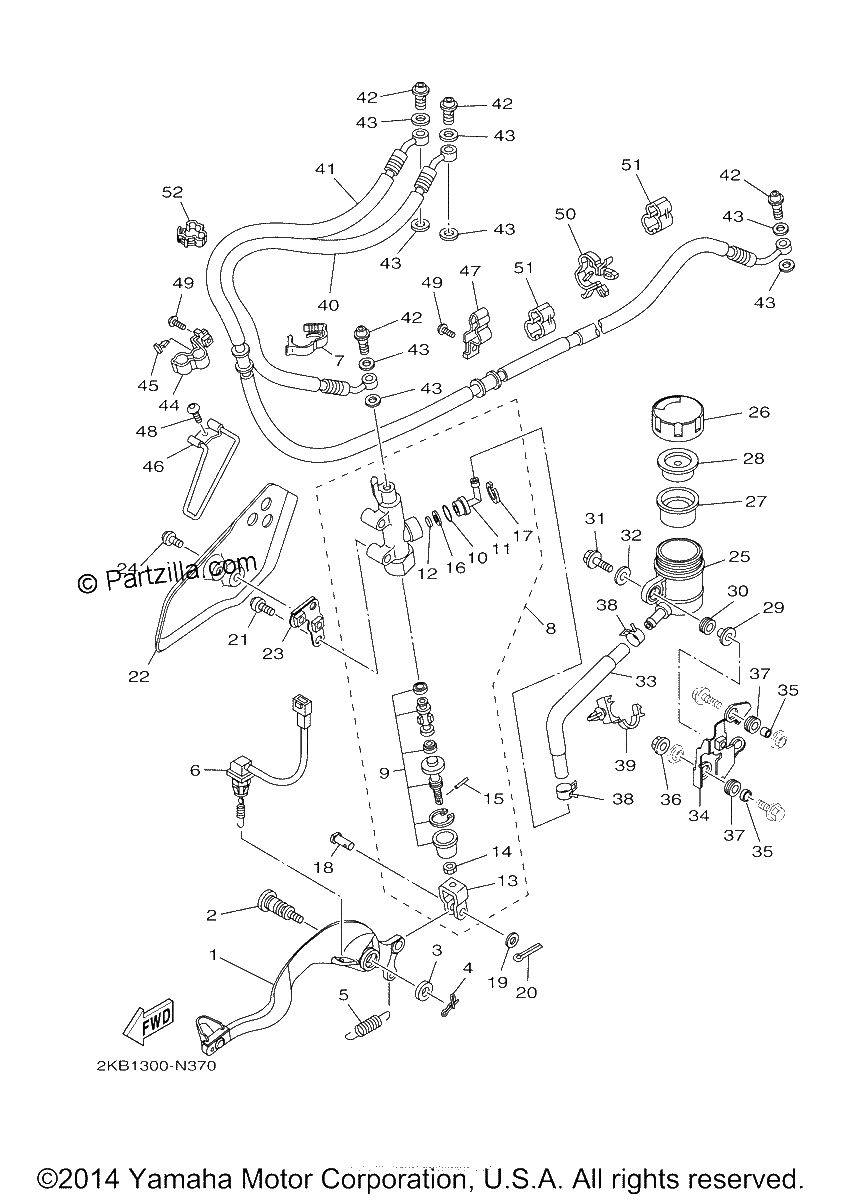

REAR MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
PEDAL, BRAKE
$140.64¢70 322
#2
BOLT
$29.57¢14 783
#3
WASHER, PLATE
$8.06¢4 031
#4
CLIP
$6.75¢3 375
#5
SPRING, TENSION
$13.21¢6 607
#6
STOP SWITCH ASSY
$60.51¢30 256
#7
CLAMP
$6.87¢3 433
#8
REAR MASTER CYLINDER ASSY.
$319.16¢159 580
#9
CYLINDER KIT, MASTER
$96.08¢48 041
#10
O-RING
$6.32¢3 162
#11
JOINT
$13.39¢6 693
#12
FILTER
$3.61¢1 805
#13
JOINT
$7.77¢3 887
#14
NUT
$7.72¢3 858
#15
PIN, BRAKE ROD
$7.28¢3 640
#16
PLATE, FILTER
$31.31¢15 657
#17
CIRCLIP
$6.51¢3 254
#18
PIN, CLEVIS
$11.76¢5 882
#19
WASHER, PLATE
$6.75¢3 375
#20
PIN. COTTER
$2.02¢1 012
#21
BOLT, BUTTON HEAD
$4.13¢2 064
#22
BRACKET 1
$8.42¢4 209
#22
PLATE 2
$54.03¢27 013
#23
PLATE 2
$54.03¢27 013
#23
BRACKET 1
$8.42¢4 209
#24
BOLT, HEX. SOCKET BUTTON
$2.98¢1 489
#25
TANK, RESERVOIR
$60.89¢30 446
#26
CAP, RESERVOIR
$6.29¢3 145
#27
DIAPHRAGM, RESERVOIR
$21.50¢10 753
#28
BUSH,DIAPHRAGM
$10.43¢5 215
#29
COLLAR
$6.39¢3 197
#30
GROMMET
$5.91¢2 956
#31
bolt
$2.71¢1 357
#32
WASHER, PLATE
$7.65¢3 824
#33
HOSE, RESERVOIR
$25.78¢12 892
#34
STAY
$64.63¢32 315
#35
GROMMET
$5.91¢2 956
#36
NUT, FLANGE
$2.24¢1 121
#37
COLLAR
$8.39¢4 198
#38
CLIP
$6.43¢3 214
#39
Clamp
$3.39¢1 696
#40
HOSE, BRAKE 4
$50.90¢25 449
#41
HOSE, BRAKE 5
$124.65¢62 324
#42
BOLT, UNION
$4.06¢2 030
#43
GASKET
$7.72¢3 858
#44
HOLDER, BRAKE HOSE
$13.42¢6 710
#45
RIVET
$6.83¢3 415
#46
HOLDER
$17.77¢8 884
#47
HOLDER, BRAKE HOSE
$9.83¢4 916
#48
BOLT, BUTTON HEAD
$6.76¢3 381
#49
BOLT, BUTTON HEAD
$2.74¢1 368
#50
CLAMP
$1.94¢972
#51
CLAMP
$6.96¢3 479
#52
Clamp
$7.21¢3 605
