TAILLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

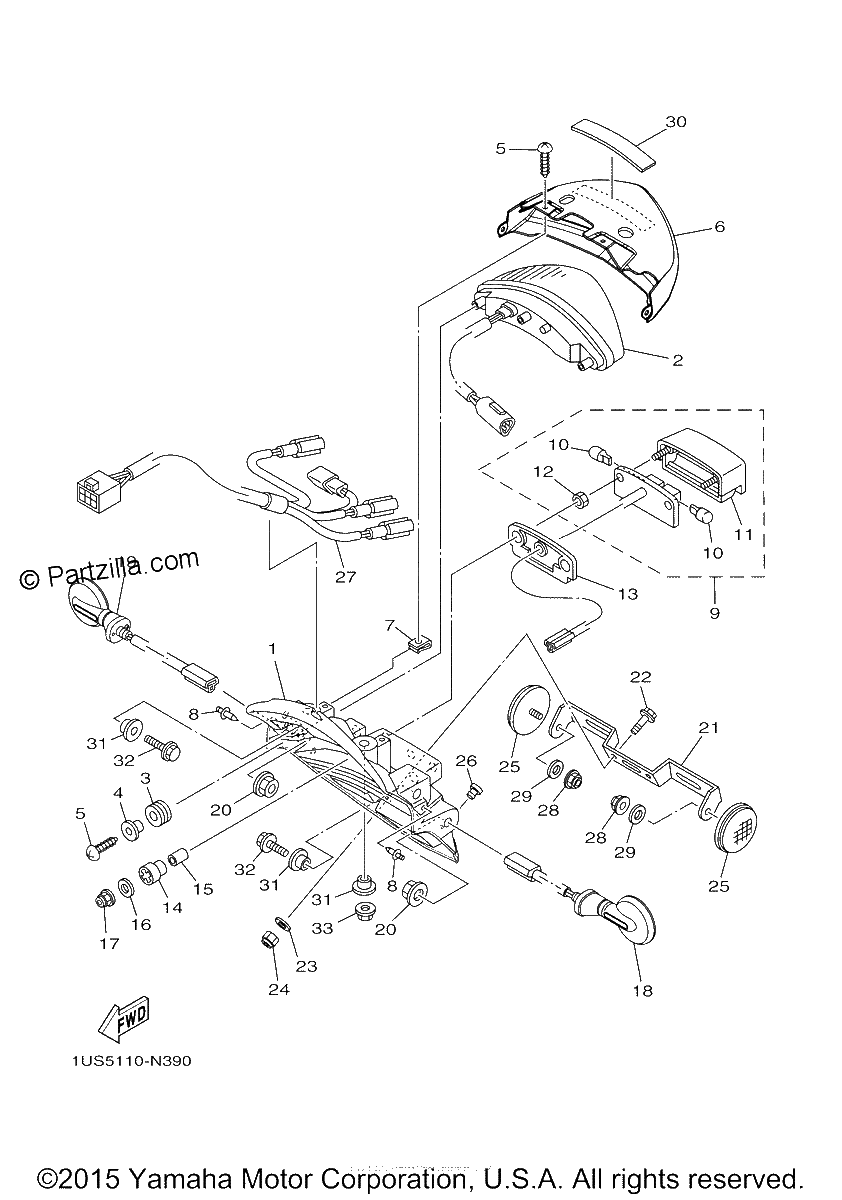

Diagrama de TAILLIGHT

Repuestos

#1
5C7-84711-00-00
BASE, TAILLIGHT
$183.82¢91 913
1
#2
5C7-84710-00-00
TAILLIGHT UNIT ASSY
$234.44¢117 219
1
#3
5PX-84553-00-00
DAMPER
$3.74¢1 869
1
#4
5PX-84557-00-00
COLLAR
$4.24¢2 119
1
#5
97707-50012-00
SCREW, TRUSS HEAD TAPPING
$3.85¢1 925
1
#6
5C7-84716-01-00
COVER, TAILLIGHT
$228.58¢114 288
1
#7
90183-05042-00
NUT, SPRING
$1.25¢625
1
#8
90269-06012-00
RIVET
$12.90¢6 450
1
#9
5C7-84745-00-00
LICENCE LIGHT UNIT ASSY
$135.25¢67 625
1
#10
5PX-84744-00-00
BULB (12V-2CP)
$4.24¢2 119
1
#11
5PX-84749-00-00
BODY, LICENCE LIGHT
$95.34¢47 669
1
#12
5PX-84748-00-00
NUT, SPECIAL
$3.79¢1 894
1
#13
5PX-84742-00-00
SEAT, BASE
$8.46¢4 231
1
#14
3F9-84553-00-00
DAMPER
$24.60¢12 300
1
#15
90387-06241-00
COLLAR
$7.35¢3 675
1
#16
90201-05025-00
WASHER, PLATE
$6.14¢3 069
1
#17
95617-05100-00
NUT, U
$7.94¢3 969
1
#18
1US-83330-01-00
REAR FLASHER LIGHT ASSY 1
$152.68¢76 338
1
#19
1US-83340-01-00
REAR FLASHER LIGHT ASSY 2
$147.76¢73 881
1
#20
90179-12588-00
NUT
$6.70¢3 350
1
#21
5C7-84751-00-00
BRACKET, LICENSE
$32.05¢16 025
1
#22
95027-06014-00
BOLT, FLANGE
$0.91¢456
1
#23
90201-06380-00
WASHER PLAIN
$0.69¢344
1
#24
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.86¢1 431
1
#25
449-85131-02-00
REFLECTOR, REAR 1
$30.67¢15 337
1
#26
90338-07180-00
PLUG
$6.76¢3 381
1
#27
1US-84717-00-00
CORD, TAILLIGHT
$66.97¢33 488
1
#28
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$8.16¢4 081
1
#29
90201-051K1-00
WASHER, PLATE
$7.95¢3 975
1
#30
1AE-2834E-00-00
DAMPER 3
$7.60¢3 800
1
#31
90387-06153-00
COLLAR
$6.85¢3 425
1
#32
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
1
#33
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.80¢1 400
1
