TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

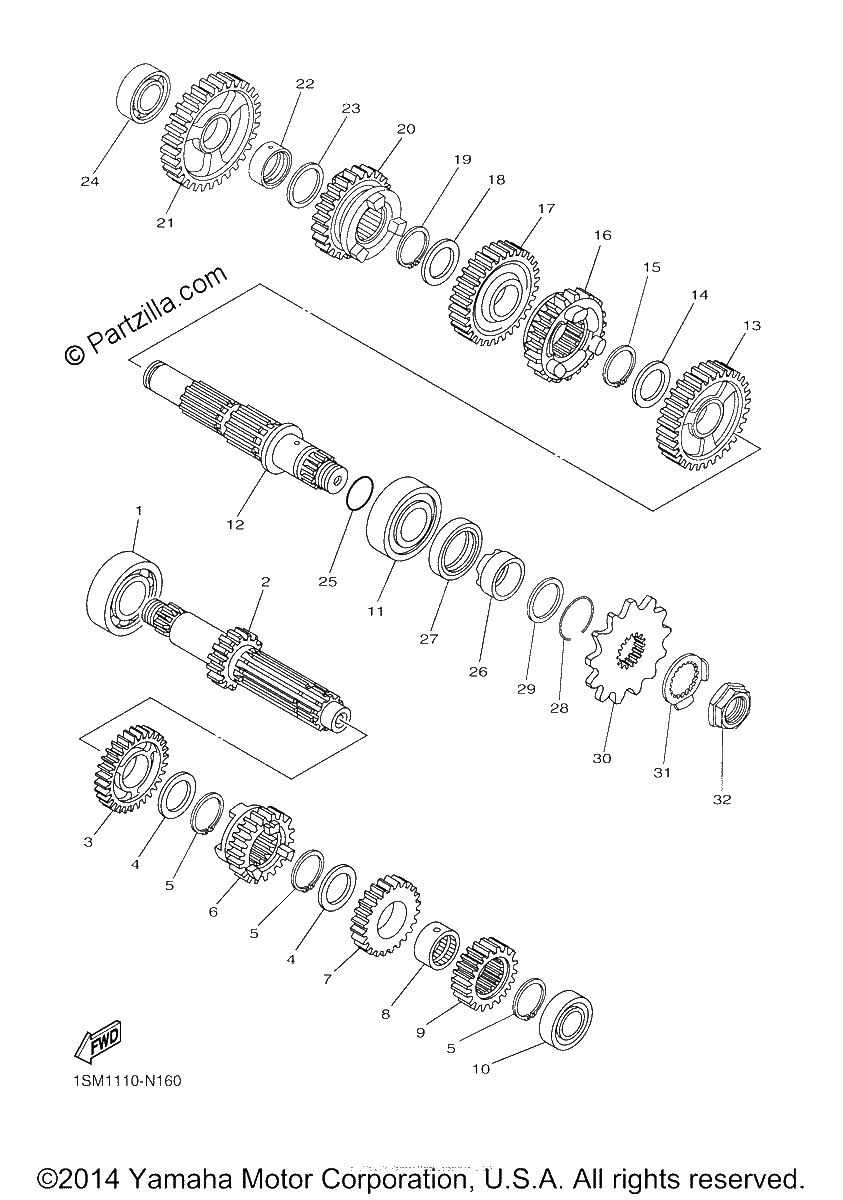

Diagrama de TRANSMISSION

Repuestos

#1
93306-00426-00
BEARING
$40.11¢20 056
1
#2
1SM-17411-20-00
AXLE, MAIN (replaces 1SM-17411-00-00)
$142.29¢71 145
1
#3
1SM-17151-00-00
GEAR, 5TH PINION
$75.68¢37 841
1
#4
90209-20008-00
WASHER
$9.40¢4 698
1
#5
93410-22039-00
CIRCLIP,S-TYPE
$6.75¢3 375
1
#6
1SM-17131-10-00
GEAR, 3RD PINION
$290.60¢145 302
1
#7
1SM-17141-00-00
GEAR, 4TH PINION
$84.93¢42 464
1
#8
90387-20006-00
Collar
$29.12¢14 559
1
#9
1SM-17121-00-00
GEAR, 2ND PINION
$75.19¢37 593
1
#10
93306-20336-00
BEARING
$29.81¢14 904
1
#11
93306-27209-00
BEARING
$75.60¢37 800
1
#12
1SM-1742A-00-00
DRIVE AXLE ASSY., 2
$174.26¢87 130
1
#13
1SM-17221-00-00
GEAR, 2ND WHEEL (28T)
$119.09¢59 547
1
#14
90209-23012-00
WASHER
$5.51¢2 754
1
#15
93410-26067-00
CIRCLIP,S-TYPE
$8.13¢4 065
1
#16
1SM-17241-10-00
GEAR, 3RD PINION (19T)
$163.75¢81 874
1
#17
17D-17231-10-00
GEAR, 3RD WHEEL (26T)
$110.66¢55 332
1
#18
90209-20008-00
WASHER
$9.40¢4 698
1
#19
93410-22039-00
CIRCLIP,S-TYPE
$6.75¢3 375
1
#20
1SM-17251-00-00
GEAR, 5TH WHEEL (25T)
$207.00¢103 500
1
#21
1SM-17211-00-00
GEAR, 1ST WHEEL
$97.65¢48 823
1
#22
90387-17012-00
COLLAR
$15.16¢7 578
1
#23
90201-177G4-00
WASHER,PLATE
$7.44¢3 720
1
#24
93306-20351-00
BEARING
$37.40¢18 699
1
#25
93210-196A4-00
O-RING
$2.14¢1 070
1
#26
90387-22033-00
Collar
$24.97¢12 483
1
#27
93102-28012-00
Oil Seal
$16.08¢8 038
1
#28
93450-40N50-00
Circlip
$1.36¢678
1
#29
90201-29M00-00
WASHER,PLATE
$5.96¢2 978
1
#30
9383B-13218-00
SPROCKET, DRIVE (13T)
$20.87¢10 436
1
#31
90215-20003-00
Washer, Lock
$6.72¢3 358
1
#32
90179-18001-00
Nut
$15.03¢7 515
1
