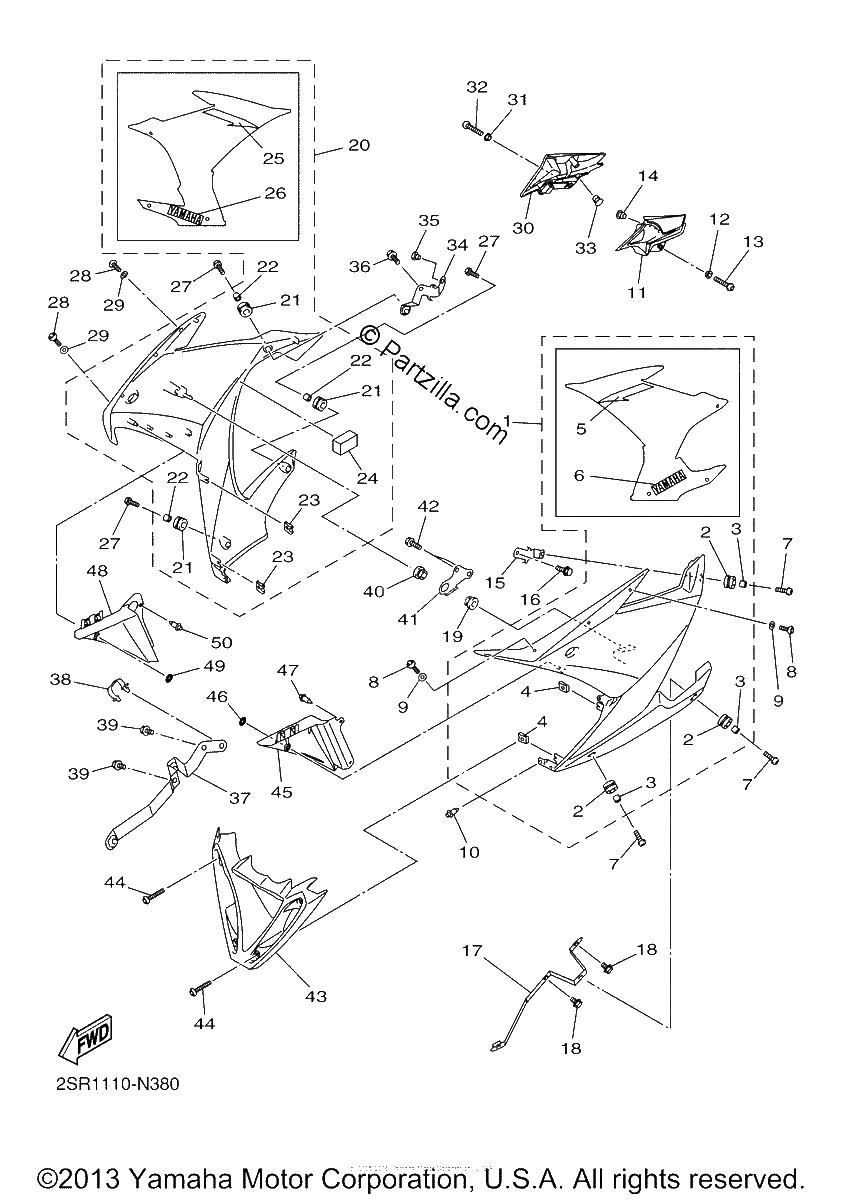

COWLING 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
PANEL ASSY 1 | Use for Color Black Metallic X ( SMX / 0903 )
$479.24¢239 619
#2
GROMMET
$7.43¢3 713
#3
COLLAR
$7.43¢3 713
#4
NUT, SPRING
$2.82¢1 412
#5
GRAPHIC 8
$46.57¢23 287
#6
EMBLEM, YAMAHA
$15.69¢7 844
#7
SCREW
$5.11¢2 556
#8
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
#9
WASHER, PLATE
$7.66¢3 831
#10
RIVET
$8.80¢4 400
#11
MOLE, SIDE COVER 3
$14.82¢7 413
#12
Collar
$8.63¢4 313
#13
SCREW
$5.11¢2 556
#14
PLUG
$6.55¢3 275
#15
BRACKET 7
$22.84¢11 419
#16
BOLT, FLANGE (replaces 95802-06014-00)
$2.65¢1 325
#17
BRACKET 1
$42.39¢21 194
#18
BOLT
$8.39¢4 194
#19
Grommet
$4.69¢2 344
#20
PANEL ASSY 2 | Use for Color Black Metallic X ( SMX / 0903 )
$407.36¢203 681
#21
GROMMET
$7.43¢3 713
#22
COLLAR
$7.43¢3 713
#23
NUT, SPRING
$2.82¢1 412
#24
PLATE 1
$3.79¢1 894
#25
GRAPHIC 9
$46.10¢23 050
#26
EMBLEM, YAMAHA
$15.69¢7 844
#27
SCREW
$5.11¢2 556
#28
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
#29
WASHER, PLATE
$7.66¢3 831
#30
MOLE, SIDE COVER 4
$14.82¢7 413
#31
Collar
$8.63¢4 313
#32
SCREW
$5.11¢2 556
#33
PLUG
$6.55¢3 275
#34
BRACKET 8
$40.49¢20 244
#35
PLUG
$6.88¢3 438
#36
BOLT, FLANGE (replaces 95802-06014-00)
$2.65¢1 325
#37
BRACKET 2
$49.26¢24 631
#38
CLAMP
$6.91¢3 456
#39
BOLT
$8.39¢4 194
#40
Grommet
$4.69¢2 344
#41
STAY, 4
$8.03¢4 013
#42
BOLT, FLANGE (replaces 95802-06014-00)
$2.65¢1 325
#43
COVER, UNDER
$62.64¢31 319
#44
BOLT, HEX. SOCKET BUTTON
$7.43¢3 713
#45
PANEL, INNER 4
$27.46¢13 731
#46
NUT, SPRING
$0.50¢250
#47
RIVET
$8.80¢4 400
#48
PANEL, INNER 5
$21.65¢10 825
#49
NUT, SPRING
$0.50¢250
#50
RIVET
$8.80¢4 400
