SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

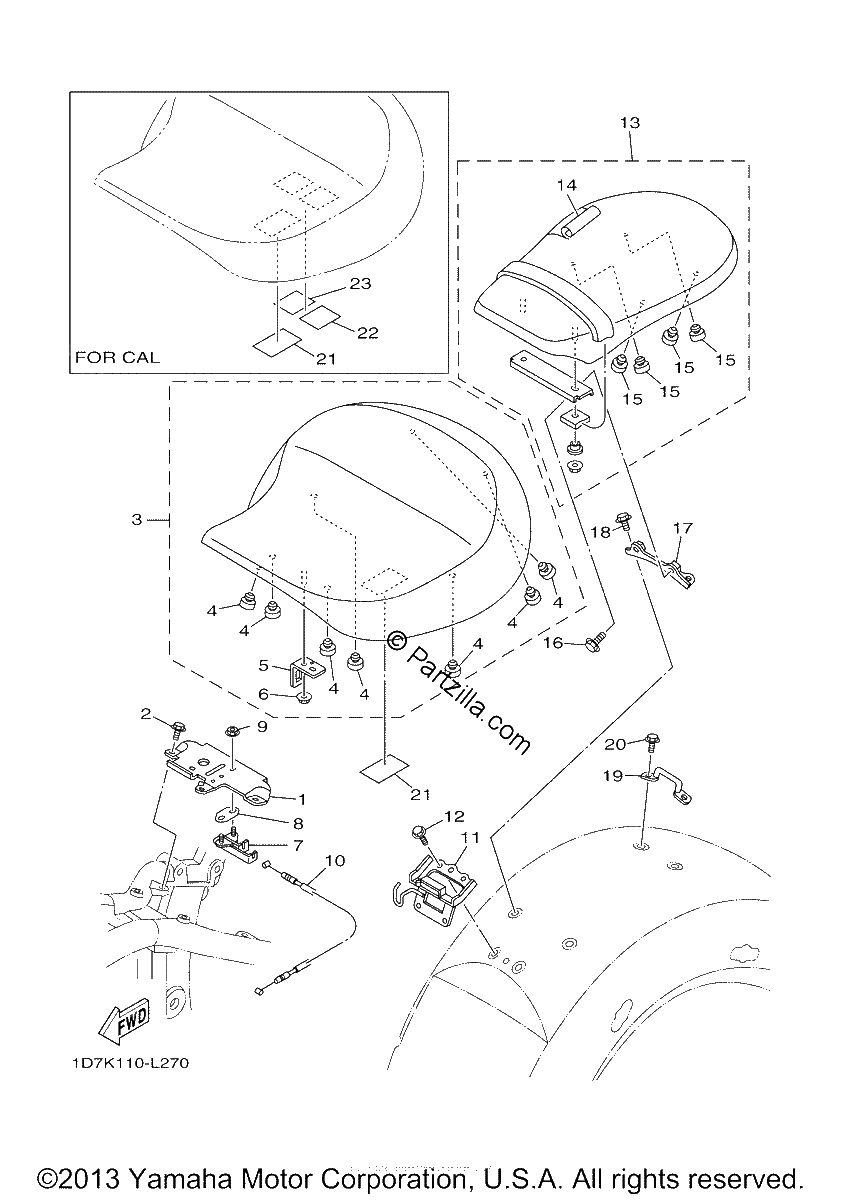

Diagrama de SEAT

Repuestos

#1
1D7-21341-00-00
BRACKET, SEAT 1
$37.98¢18 992
1
#2
95817-08016-00
BOLT, FLANGE
$4.52¢2 260
1
#3
1D7-24710-30-00
SINGLE SEAT ASSY
$352.38¢176 192
1
#4
22W-24741-00-00
PAD, SEAT
$8.45¢4 226
1
#5
4NK-24728-00-00
BRACKET, SEAT
$10.55¢5 273
1
#6
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.58¢1 288
1
#7
4BP-24780-00-00
SEAT LOCK ASSY
$104.11¢52 055
1
#8
4BP-24792-00-00
PLATE
$9.79¢4 893
1
#9
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#10
5PX-2478E-00-00
CABLE, SEAT LOCK
$19.50¢9 752
1
#11
1D7-2475N-00-00
BRACKET
$70.13¢35 064
1
#12
95022-08012-00
BOLT, FLANGE
$10.41¢5 204
1
#13
1D7-24750-20-00
TANDEM SEAT ASSY
$236.69¢118 346
1
#14
1D7-2470H-20-00
SEAT COVER COMP., 2
$130.96¢65 481
1
#15
22W-24741-00-00
PAD, SEAT
$8.45¢4 226
1
#16
95022-08012-00
BOLT, FLANGE
$10.41¢5 204
1
#17
1D7-2475H-00-00
BRACKET, SEAT LEVER 1
$17.39¢8 694
1
#18
95022-08012-00
BOLT, FLANGE
$10.41¢5 204
1
#19
1D7-2475R-00-00
BRACKET 6
$16.02¢8 010
1
#20
95022-08012-00
BOLT, FLANGE
$10.41¢5 204
1
#21
1D7-21668-00-00
LABEL, TIRE
$3.48¢1 742
1
#22
5RU-21686-00-00
PLATE, ROUTING 2
$5.61¢2 806
1
#23
34B-21684-00-00
PLATE, ROUTING | FOR CALIFORNIA
$7.31¢3 657
1
