FUEL

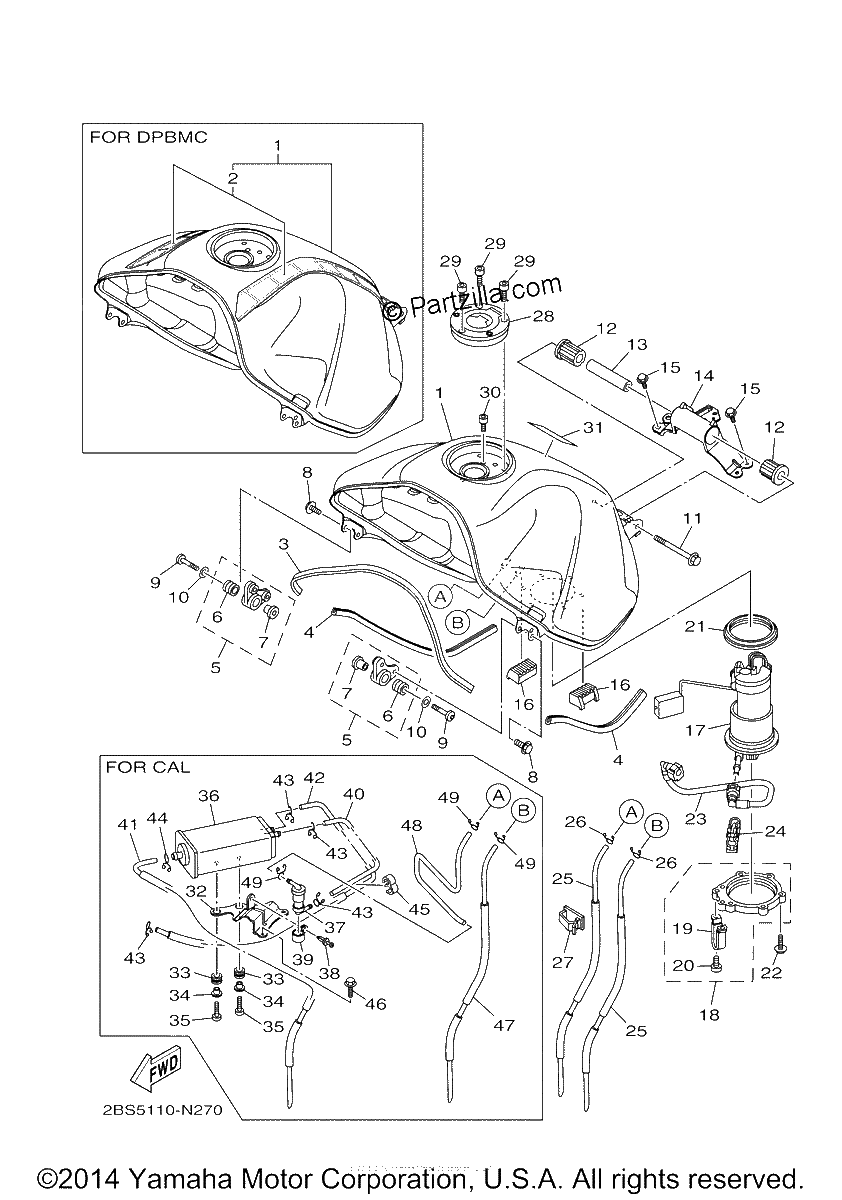

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
FUEL TANK COMP. | UR FOR MNM3
$854.99¢427 494
#1
FUEL TANK COMP. | UR FOR DPBMC
$1038.74¢519 369
#2
GRAPHIC SET | FOR DPBMC
$84.85¢42 425
#3
MOLD, FUEL TANK
$33.39¢16 694
#4
MOLD, FUEL TANK
$32.80¢16 400
#5
TANK BRACKET ASSY (replaces 23P-24104-01-00)
$60.76¢30 381
#6
GROMMET
$3.79¢1 894
#7
COLLAR
$4.68¢2 338
#8
BOLT, WITH WASHER
$7.48¢3 738
#9
SCREW
$5.11¢2 556
#10
WASHER, PLATE
$7.63¢3 813
#11
BOLT, FLANGE (replaces 95812-08110-00)
$6.97¢3 488
#12
DAMPER, LOCATING 3
$4.59¢2 294
#13
COLLAR
$10.19¢5 094
#14
BRACKET, TANK FITTING
$75.33¢37 663
#15
BOLT, FLANGE (replaces 95802-06020-00)
$3.31¢1 656
#16
DAMPER, LOCATING 1
$10.89¢5 444
#17
FUEL PUMP COMP.
$802.49¢401 244
#18
TANK BRACKET ASSY 2
$54.81¢27 406
#19
BRACKET, FUEL TANK 2
$13.54¢6 769
#20
SCREW, BIND
$1.46¢731
#21
O-RING
$44.47¢22 237
#22
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
#23
PIPE, FUEL 1
$68.49¢34 244
#24
CLAMP
$12.75¢6 375
#25
PIPE, OVERFLOW | FOR CAL
$33.75¢16 875
#26
Clip
$2.97¢1 487
#27
CLAMP
$5.76¢2 881
#28
CAP ASSY
$270.61¢135 306
#29
BOLT, HEXAGON SOCKET HEAD
$8.91¢4 456
#30
BOLT
$5.86¢2 931
#31
LABEL, CAUTION
$7.85¢3 925
#32
BRACKET, CANISTOR | FOR CAL
$71.15¢35 575
#33
GROMMET
$7.43¢3 713
#34
COLLAR | FOR CALIFORNIA
$6.76¢3 381
#35
BOLT, BUTTON HEAD
$7.41¢3 706
#36
CANISTER ASSY | FOR CALIFORNIA
$353.90¢176 950
#37
ROLL OVER VALVE ASSY | FOR CAL
$61.95¢30 975
#38
RIVET
$2.71¢1 356
#39
Clamp
$2.35¢1 175
#40
PIPE 4 | FOR CAL
$22.71¢11 356
#41
PIPE 5 | FOR CAL
$45.59¢22 794
#42
PIPE 6 | FOR CAL
$43.50¢21 750
#43
Clip
$2.97¢1 487
#44
CLIP | FOR CALIFORNIA
$7.60¢3 800
#45
CLAMP
$7.36¢3 681
#46
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
#47
PIPE, OVERFLOW | FOR CAL
$33.75¢16 875
#48
PIPE 3 | FOR CAL
$51.40¢25 700
#49
Clip
$2.97¢1 487
