STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

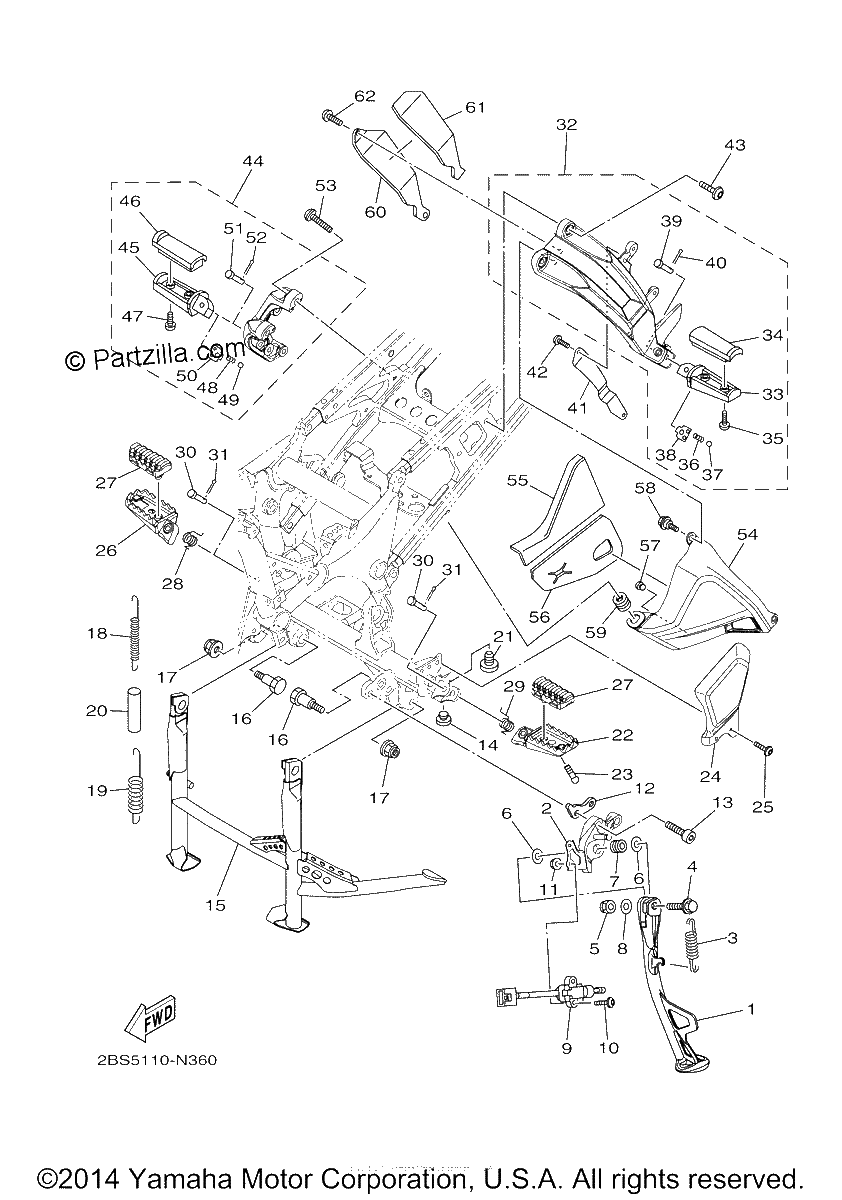

Diagrama de STAND FOOTREST

Repuestos

#1
2BS-27311-00-00
STAND, SIDE
$242.45¢121 227
1
#2
23P-27321-00-00
BRACKET, SIDE STAND
$168.47¢84 238
1
#3
23P-27316-00-00
SPRING, SIDE STAND
$19.99¢9 994
1
#4
90105-10728-00
BOLT, WASHER BASED (replaces 90105-102A6-00)
$8.21¢4 105
1
#5
90185-10012-00
NUT, SELF-LOCKING
$3.27¢1 633
1
#6
90201-10051-00
WASHER, PLATE
$8.22¢4 111
1
#7
90387-10020-00
COLLAR
$17.96¢8 981
1
#8
90201-101J1-00
WASHER, PLATE
$6.75¢3 375
1
#9
23P-82566-60-00
SWITCH, SIDE STAND
$70.48¢35 242
1
#10
92017-05020-00
BOLT, BUTTON HEAD
$2.82¢1 409
1
#11
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$7.51¢3 755
1
#12
23P-27322-00-00
WASHER
$6.80¢3 398
1
#13
91317-10030-00
BOLT
$7.51¢3 755
1
#14
128-27114-00-00
STOPPER, MAIN STAND
$7.24¢3 622
1
#15
23P-27111-00-00
STAND, MAIN
$319.16¢159 580
1
#16
90109-10057-00
BOLT
$14.17¢7 084
1
#17
95602-10200-00
NUT, U FLANGE
$2.51¢1 254
1
#18
23P-27116-00-00
SPRING, MAIN STAND
$9.75¢4 876
1
#19
23P-27116-10-00
SPRING, MAIN STAND
$34.71¢17 353
1
#20
90445-19003-00
HOSE
$5.96¢2 978
1
#21
23P-27114-00-00
STOPPER, MAIN STAND
$3.85¢1 926
1
#22
23P-27451-00-00
FOOTREST
$55.80¢27 899
1
#23
90109-08177-00
BOLT
$6.52¢3 260
1
#24
23P-27445-10-00
PLATE 1
$49.38¢24 690
1
#25
92012-06012-00
BOLT, BUTTON HEAD
$2.74¢1 368
1
#26
23P-27461-00-00
FOOTREST
$49.59¢24 794
1
#27
23P-27413-00-00
COVER, FOOTREST
$20.53¢10 264
1
#28
90508-20051-00
SPRING, TORSION
$3.32¢1 662
1
#29
90508-20041-00
SPRING, TORSION
$3.69¢1 846
1
#30
91701-08040-00
PIN
$4.45¢2 225
1
#31
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#32
23P-27430-10-00
REAR FOOTREST ASSY 1
$250.39¢125 195
1
#33
5RT-27431-00-00
FOOTREST, REAR 1
$32.87¢16 434
1
#34
4D9-27413-00-00
COVER, FOOTREST
$11.56¢5 779
1
#35
98507-05014-00
SCREW, PAN HEAD
$5.76¢2 881
1
#36
90501-12743-00
SPRING, COMPRESSION
$3.51¢1 754
1
#37
93501-04011-00
BALL
$6.87¢3 433
1
#38
5VX-27437-00-00
WASHER, SPECIAL
$7.35¢3 674
1
#39
91702-08040-00
PIN, CLEVIS
$4.45¢2 225
1
#39
90109-085G6-00
BOLT
$2.08¢1 041
1
#40
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#41
23P-27412-00-00
BRACKET, FOOTREST 1
$9.91¢4 956
1
#42
92012-05008-00
BOLT, BUTTON HEAD
$2.56¢1 282
1
#43
90109-085G6-00
BOLT
$2.08¢1 041
1
#44
23P-27440-10-00
REAR FOOTREST ASSY 2
$250.39¢125 195
1
#45
5RT-27441-00-00
FOOTREST, REAR 2
$33.18¢16 589
1
#46
4D9-27413-00-00
COVER, FOOTREST
$11.56¢5 779
1
#47
98507-05014-00
SCREW, PAN HEAD
$5.76¢2 881
1
#48
90501-12743-00
SPRING, COMPRESSION
$3.51¢1 754
1
#49
93501-04011-00
BALL
$6.87¢3 433
1
#50
5VX-27437-00-00
WASHER, SPECIAL
$7.35¢3 674
1
#51
91702-08040-00
PIN, CLEVIS
$4.45¢2 225
1
#52
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#54
23P-27491-00-00
PROTECTOR
$26.75¢13 375
1
#55
23P-2749A-00-00
SEAT 3
$20.32¢10 160
1
#56
23P-2749B-00-00
SEAT 4
$14.97¢7 486
1
#57
1J7-21717-00-00
DAMPER
$6.51¢3 254
1
#58
90109-06264-00
BOLT
$4.74¢2 369
1
#59
90480-12325-00
GROMMET
$7.57¢3 783
1
#60
2BS-27422-00-00
BRACKET, FOOTREST 2
$10.95¢5 474
1
#61
2BS-2175P-00-00
SEAT 4
$8.38¢4 192
1
#62
92012-08012-00
BOLT, BUTTON HEAD
$6.96¢3 479
1
