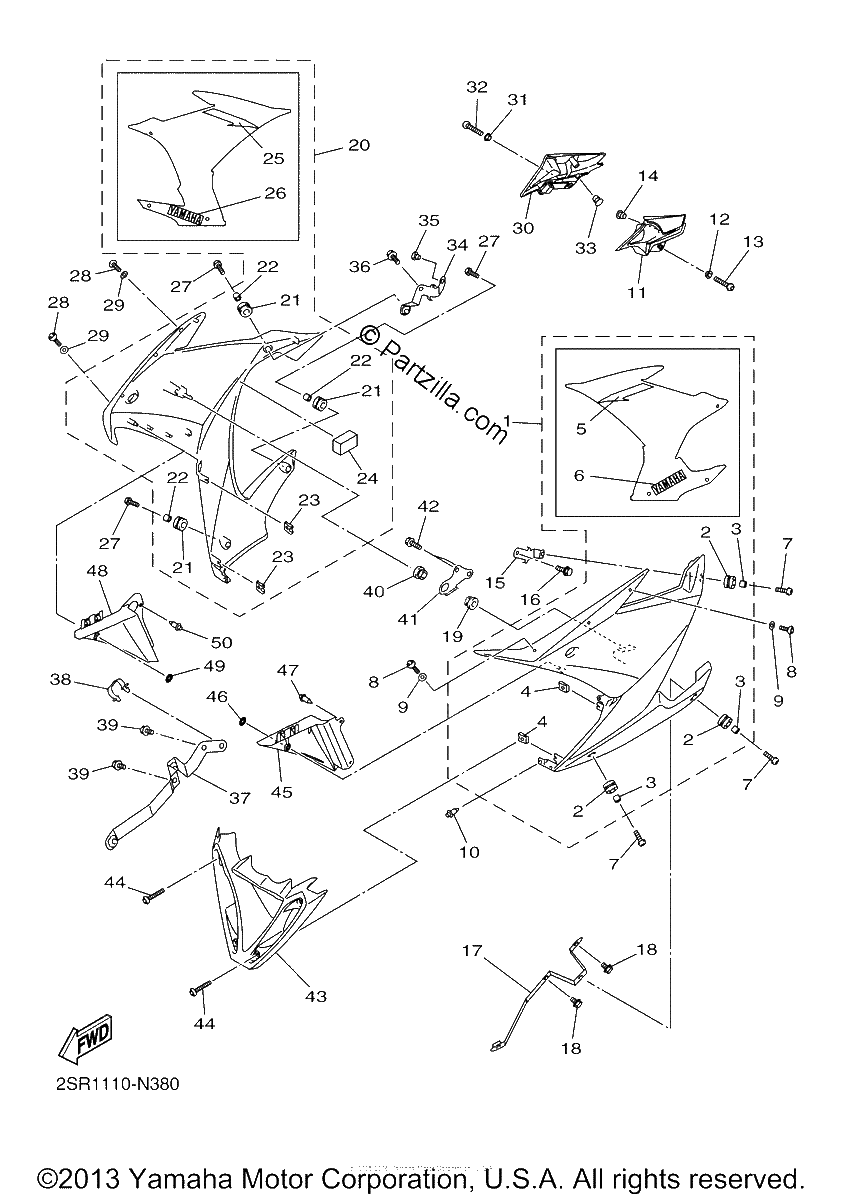

COWLING 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
PANEL ASSY 1 | Use for Color Black Metallic X ( SMX / 0903 )
$440.90¢220 449
#2
GROMMET
$6.83¢3 415
#3
COLLAR
$6.83¢3 415
#4
NUT, SPRING
$2.60¢1 299
#5
GRAPHIC 8
$42.85¢21 425
#6
EMBLEM, YAMAHA
$14.43¢7 216
#7
SCREW
$4.70¢2 352
#8
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
#9
WASHER, PLATE
$7.05¢3 525
#10
RIVET
$8.10¢4 048
#11
MOLE, SIDE COVER 3
$13.64¢6 819
#12
Collar
$7.93¢3 968
#13
SCREW
$4.70¢2 352
#14
PLUG
$6.03¢3 013
#15
BRACKET 7
$21.01¢10 505
#16
BOLT, FLANGE (replaces 95802-06014-00)
$2.44¢1 219
#17
BRACKET 1
$39.00¢19 498
#18
BOLT
$7.72¢3 858
#19
Grommet
$4.31¢2 156
#20
PANEL ASSY 2 | Use for Color Black Metallic X ( SMX / 0903 )
$374.77¢187 387
#21
GROMMET
$6.83¢3 415
#22
COLLAR
$6.83¢3 415
#23
NUT, SPRING
$2.60¢1 299
#24
PLATE 1
$3.48¢1 742
#25
GRAPHIC 9
$42.41¢21 206
#26
EMBLEM, YAMAHA
$14.43¢7 216
#27
SCREW
$4.70¢2 352
#28
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
#29
WASHER, PLATE
$7.05¢3 525
#30
MOLE, SIDE COVER 4
$13.64¢6 819
#31
Collar
$7.93¢3 968
#32
SCREW
$4.70¢2 352
#33
PLUG
$6.03¢3 013
#34
BRACKET 8
$37.25¢18 624
#35
PLUG
$6.32¢3 162
#36
BOLT, FLANGE (replaces 95802-06014-00)
$2.44¢1 219
#37
BRACKET 2
$45.32¢22 661
#38
CLAMP
$6.36¢3 180
#39
BOLT
$7.72¢3 858
#40
Grommet
$4.31¢2 156
#41
STAY, 4
$7.38¢3 691
#42
BOLT, FLANGE (replaces 95802-06014-00)
$2.44¢1 219
#43
COVER, UNDER
$57.63¢28 813
#44
BOLT, HEX. SOCKET BUTTON
$6.83¢3 415
#45
PANEL, INNER 4
$25.27¢12 633
#46
NUT, SPRING
$0.46¢230
#47
RIVET
$8.10¢4 048
#48
PANEL, INNER 5
$19.92¢9 959
#49
NUT, SPRING
$0.46¢230
#50
RIVET
$8.10¢4 048
