CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

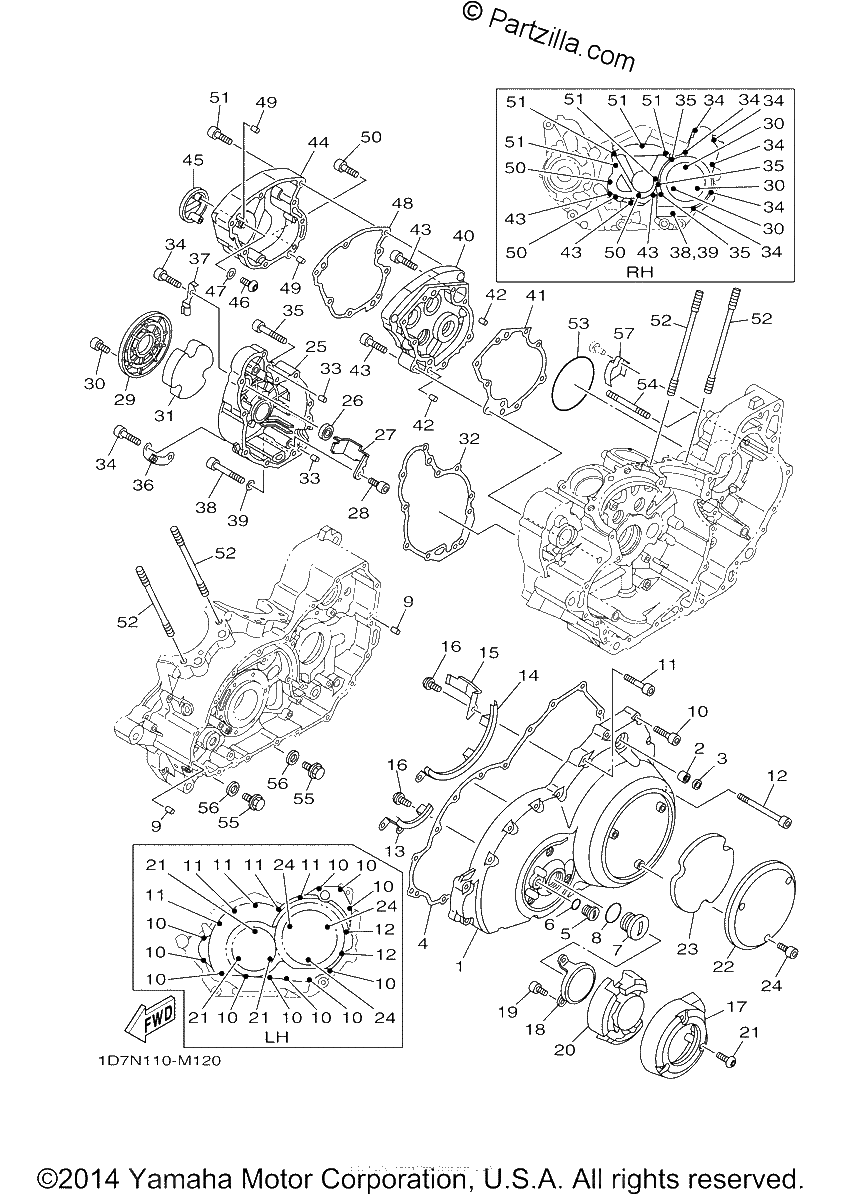

Diagrama de CRANKCASE COVER 1

Repuestos

#1
1D7-15411-00-00
COVER, CRANKCASE 1
$672.49¢336 244
1
#2
93317-11287-00
BEARING
$24.40¢12 200
1
#3
93102-12224-00
OIL SEAL
$9.94¢4 969
1
#4
1D7-15451-00-00
GASKET, CRANKCASE COVER 1
$43.49¢21 744
1
#5
90340-14117-00
PLUG, STRAIGHT SCREW
$13.83¢6 913
1
#6
93210-14369-00
O-Ring
$6.91¢3 456
1
#7
90340-32140-00
PLUG, STRAIGHT SCREW
No Disponible
1
#8
93210-32172-00
O-Ring
$6.88¢3 438
1
#9
99530-08012-00
PIN, DOWEL
$6.25¢3 125
1
#10
91314-06035-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#11
91314-06045-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#12
91314-06100-00
BOLT, HEXAGON SOCKET HEAD
$6.61¢3 306
1
#13
1D7-15142-00-00
GUIDE 1
$10.89¢5 444
1
#14
1D7-15143-00-00
GUIDE
$12.05¢6 025
1
#15
5C7-15484-00-00
CLAMP 2
$16.36¢8 181
1
#16
90149-06068-00
SCREW
$3.99¢1 994
1
#17
1D7-15423-00-00
COVER 2
$131.36¢65 681
1
#18
1D7-15425-00-00
COVER, GENERATOR 2
$21.80¢10 900
1
#19
91312-05010-00
BOLT
$5.86¢2 931
1
#20
1D7-15316-00-00
DAMPER 1
$59.24¢29 619
1
#21
92014-06040-00
BOLT, BUTTON HEAD
$2.25¢1 125
1
#22
1D7-15415-00-00
COVER, GENERATOR
$158.35¢79 175
1
#23
1D7-1542A-10-00
DAMPER 1
$5.76¢2 881
1
#24
91314-06012-00
BOLT, HEXAGON SOCKET HEAD
$7.94¢3 969
1
#25
1D7-15421-00-00
COVER, CRANKCASE 2
$167.06¢83 531
1
#26
93306-00004-00
BEARING
$38.96¢19 481
1
#27
4WM-15377-00-00
GUIDE, INLET
$10.15¢5 075
1
#28
90149-06156-00
SCREW
$7.56¢3 781
1
#29
1D7-15492-00-00
COVER
$214.38¢107 188
1
#30
91314-05010-00
BOLT, HEXAGON SOCKET HEAD
$2.80¢1 400
1
#31
1D7-15326-10-00
DAMPER 2
$4.66¢2 331
1
#32
1D7-15461-00-00
GASKET, CRANKCASE COVER 2
$7.41¢3 706
1
#33
99530-08012-00
PIN, DOWEL
$6.25¢3 125
1
#34
91314-06035-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#35
91314-06055-00
BOLT, HEXAGON SOCKET HEAD
$8.10¢4 050
1
#36
1D7-26298-00-00
PLATE, MIRROR FITTING 1
$7.84¢3 919
1
#37
1D7-2612E-00-00
BRACKET
$16.36¢8 181
1
#38
91314-06065-00
BOLT, HEXAGON SOCKET HEAD
$7.94¢3 969
1
#39
90430-06014-00
GASKET
$8.25¢4 125
1
#39
93210-85075-00
O-RING
$5.40¢2 700
1
#40
1D7-15430-01-00
CRANKCASE COVER ASSY 3
$167.36¢83 681
1
#41
1D7-15462-00-00
GASKET, CRANKCASE COVER 3
$12.29¢6 144
1
#42
99530-08012-00
PIN, DOWEL
$6.25¢3 125
1
#43
90110-06299-00
BOLT, HEXAGON SOCKET HEAD
$6.57¢3 287
1
#44
1D7-15429-00-00
COVER, SHIFTER
$410.91¢205 456
1
#45
1D7-15427-00-00
COVER, CAP 2
$87.56¢43 781
1
#46
90149-06068-00
SCREW
$3.99¢1 994
1
#47
90430-06014-00
GASKET
$8.25¢4 125
1
#48
1D7-12286-00-00
GASKET, DECOMPRESSION
$7.70¢3 850
1
#49
99530-08012-00
PIN, DOWEL
$6.25¢3 125
1
#50
91314-06025-00
BOLT, HEXAGON SOCKET HEAD
$7.94¢3 969
1
#51
91314-06040-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#52
90116-12240-00
BOLT, STUD
$16.95¢8 475
1
#54
90116-10028-00
BOLT, STUD
$6.25¢3 125
1
#55
90340-14005-00
PLUG, STRAIGHT SCREW
$17.49¢8 744
1
#56
214-11198-01-00
GASKET
$3.23¢1 613
1
#57
1D7-15413-00-00
COVER
$19.07¢9 538
1
