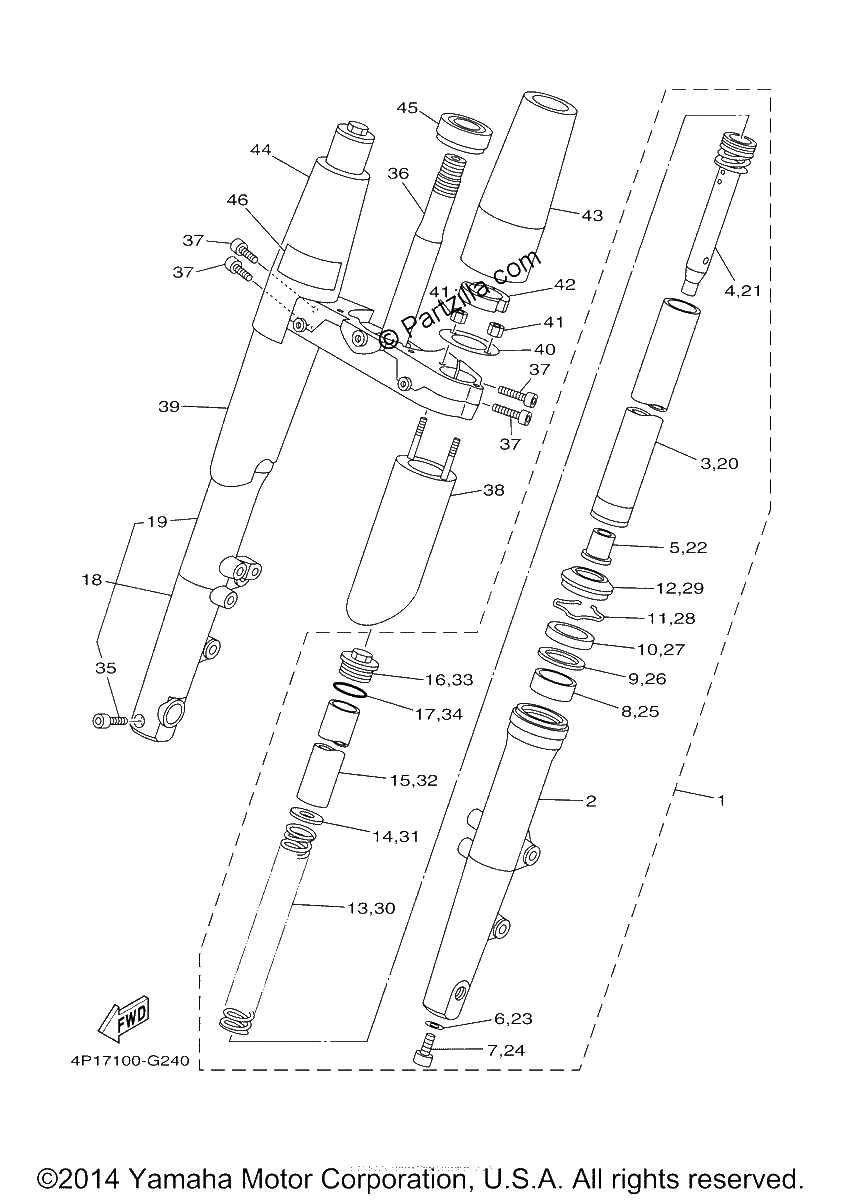

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H)
$737.14¢368 569
#2
TUBE, OUTER (L.H) | UR FOR SMX
$478.60¢239 298
#3
INNER TUBE COMP. 1
$384.43¢192 217
#4
CYLINDER COMP., FRONT FORK
$221.85¢110 923
#5
SPINDLE, TAPER
$31.72¢15 858
#6
GASKET
$14.34¢7 170
#7
BOLT, HEXAGON SOCKET HEAD
$6.87¢3 433
#8
METAL, SLIDE 1
$34.19¢17 095
#9
WASHER, OIL SEAL
$7.38¢3 691
#10
OIL SEAL
$22.80¢11 402
#11
RING, SNAP
$6.69¢3 347
#12
SEAL, DUST
$32.17¢16 083
#13
SPRING, FRONT FORK
$60.32¢30 159
#14
WASHER, SPRING UPPER
$8.05¢4 025
#15
SPACER
$20.19¢10 097
#16
BOLT, CAP
$74.05¢37 024
#17
O-RING
$15.12¢7 561
#18
FRONT FORK ASSY (R.H)
$737.14¢368 569
#19
TUBE, OUTER (R.H) | UR FOR SMX
$482.90¢241 448
#20
INNER TUBE COMP. 1
$384.43¢192 217
#21
CYLINDER COMP., FRONT FORK
$221.85¢110 923
#22
SPINDLE, TAPER
$31.72¢15 858
#23
GASKET
$14.34¢7 170
#24
BOLT, HEXAGON SOCKET HEAD
$6.87¢3 433
#25
METAL, SLIDE 1
$34.19¢17 095
#26
WASHER, OIL SEAL
$7.38¢3 691
#27
OIL SEAL
$22.80¢11 402
#28
RING, SNAP
$6.69¢3 347
#29
SEAL, DUST
$32.17¢16 083
#30
SPRING, FRONT FORK
$60.32¢30 159
#31
WASHER, SPRING UPPER
$8.05¢4 025
#32
SPACER
$20.19¢10 097
#33
BOLT, CAP
$74.05¢37 024
#34
O-RING
$15.12¢7 561
#35
BOLT (3JP)
$5.75¢2 875
#36
STEERING ASSY
No Disponible
#37
BOLT, HEXAGON SOCKET HEAD
$6.75¢3 375
#38
COVER, UNDER 1 | UR FOR SMX
$270.70¢135 349
#39
COVER, UNDER 2 | UR FOR SMX
$390.90¢195 448
#40
WASHER, FELT
$20.29¢10 143
#41
NUT
$4.00¢2 001
#42
GASKET
$16.64¢8 320
#43
COVER, UPPER 1 | UR FOR SMX
$427.43¢213 716
#44
COVER, UPPER 2 | UR FOR SMX
$427.43¢213 716
#45
BEARING
$81.28¢40 641
#46
SEAL
$16.19¢8 096
