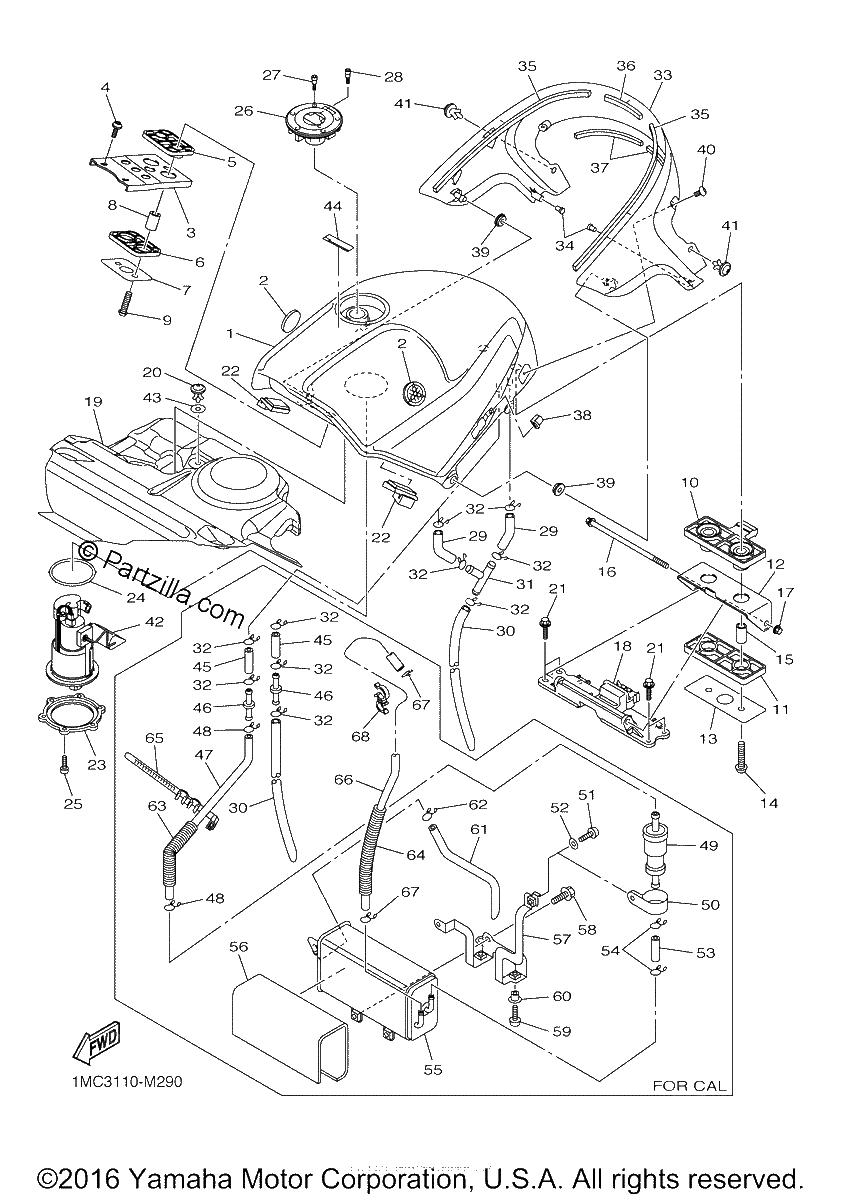

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FUEL TANK COMP. | Use for Color Deep Red Metallic K ( DRMK / 0918 )
No Disponible
#2
EMBLEM
$94.89¢47 444
#3
BRACKET, FUEL TANK 1
$28.50¢14 250
#4
SCREW
$5.11¢2 556
#5
DAMPER, LOCATING 1
$12.28¢6 138
#6
DAMPER, LOCATING 2
$9.93¢4 963
#7
WASHER, SPECIAL
$6.65¢3 325
#8
COLLAR
$5.22¢2 613
#9
BOLT, BUTTON HEAD
$4.49¢2 244
#10
DAMPER, LOCATING 3
$15.29¢7 644
#11
DAMPER, LOCATING 4
$22.91¢11 456
#12
BRACKET, FUEL TANK 2
$29.94¢14 969
#13
WASHER, SPECIAL
$8.56¢4 281
#14
BOLT, BUTTON HEAD
$4.49¢2 244
#15
COLLAR
$5.22¢2 613
#16
BOLT, FLANGE
$15.89¢7 944
#17
NUT, FLANGE
$0.99¢494
#18
BRACKT, TANK FITTING
$42.18¢21 088
#19
INSULATOR, FUEL TANK 1
$132.40¢66 200
#20
RIVET
$6.78¢3 388
#21
BOLT, FLANGE (replaces 95802-06020-00)
$3.31¢1 656
#22
DAMPER, LOCATING 4
$14.51¢7 256
#23
BRACKET, FUEL PUMP
$31.10¢15 550
#24
O-RING
$44.47¢22 237
#25
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
#26
CAP ASSY
$312.61¢156 306
#27
BOLT, HEXAGON SOCKET HEAD
$8.91¢4 456
#28
BOLT
$5.86¢2 931
#29
HOSE (L120)
$4.55¢2 275
#30
HOSE
$20.38¢10 188
#31
WAY 3
$10.19¢5 094
#32
CLIP | FOR CALIFORNIA
$7.60¢3 800
#33
COVER, SIDE 1 | Use for Color SILVER 3 ( S3 / 0791 )
$359.96¢179 981
#34
PLUG
$6.76¢3 381
#35
DAMPER, PLATE 1
$6.51¢3 256
#36
DAMPER, PLATE 2
$3.73¢1 863
#37
DAMPER, PLATE 6
$7.91¢3 956
#38
DAMPER, SIDE COVER
$7.65¢3 825
#39
Grommet
$4.69¢2 344
#39
HOSE (L30) | FOR CALIFORNIA
$3.79¢1 894
#40
BOLT, HEX. SOCKET BUTTON
$7.69¢3 844
#41
RIVET
$6.78¢3 388
#42
FUEL PUMP COMP.
$680.76¢340 381
#43
WASHER, PLATE
$4.65¢2 325
#44
LABEL, CAUTION
$5.84¢2 919
#45
HOSE | FOR CALIFORNIA
$3.83¢1 913
#46
JOINT
$7.08¢3 538
#47
PIPE 2 | FOR CALIFORNIA
$77.33¢38 663
#48
CLIP | FOR CALIFORNIA
$7.60¢3 800
#49
ROLL OVER VALVE ASSY | FOR CAL
$62.61¢31 306
#50
Clamp
$2.35¢1 175
#51
SCREW, PAN HEAD
$6.67¢3 338
#52
WASHER, PLATE
$0.66¢331
#54
CLIP | FOR CALIFORNIA
$7.60¢3 800
#55
CANISTER ASSY | FOR CALIFORNIA
$362.09¢181 044
#56
SEAL 2 | FOR CALIFORNIA
$15.25¢7 625
#57
BRACKET, CANISTOR | FOR CALIFORNIA
No Disponible
#58
BOLT, FLANGE | FOR CALIFORNIA
$2.71¢1 356
#59
BOLT,BUTTON HEAD
$2.95¢1 475
#60
COLLAR | FOR CALIFORNIA
$9.75¢4 875
#61
PIPE 4 | FOR CALIFORNIA
$58.98¢29 488
#62
CLIP | FOR CALIFORNIA
$7.60¢3 800
#63
PROTECTOR, PIPE | FOR CALIFORNIA
$19.26¢9 631
#64
PROTECTOR, PIPE 2 | FOR CALIFORNIA
$24.22¢12 112
#65
CLAMP | FOR CALIFORNIA
$5.17¢2 588
#66
PIPE | FOR CALIFORNIA
$103.75¢51 875
#67
CLIP | FOR CALIFORNIA
$7.60¢3 800
#68
CLAMP | FOR CALIFORNIA
$2.88¢1 438
