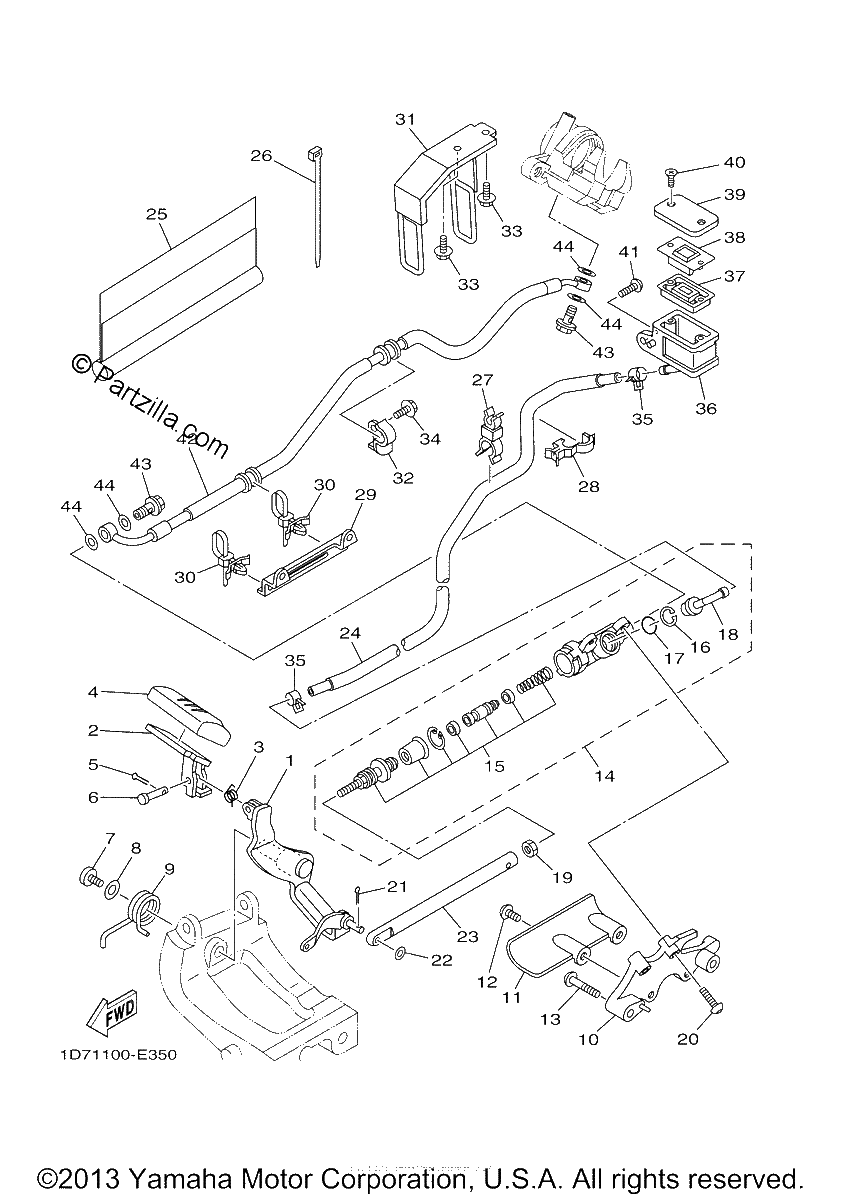

REAR MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
PEDAL, BRAKE
$141.75¢70 875
#2
PEDAL, BRAKE
$39.85¢19 924
#3
SPRING, TORSION
$6.05¢3 024
#4
CAP
$27.29¢13 645
#5
PIN. COTTER
$2.02¢1 012
#6
PIN
$1.99¢995
#7
BOLT, HEXAGON SOCKET
$5.47¢2 737
#8
WASHER, PLATE
$3.00¢1 501
#9
SPRING, SIDE STAND
$7.75¢3 875
#10
BRACKET, MASTER CYLINDER
$66.68¢33 338
#11
PROTECTOR
$16.80¢8 401
#12
BOLT, BUTTON HEAD
$7.30¢3 651
#13
BOLT, BUTTON HEAD
$7.30¢3 651
#14
RR. MASTER CYLINDER ASSY.
$188.22¢94 110
#15
CYLINDER KIT, MASTER
$69.56¢34 782
#16
CIRCLIP
$6.51¢3 254
#17
O-RING
$6.32¢3 162
#18
JOINT
$21.48¢10 741
#19
NUT
$7.72¢3 858
#20
BOLT, BUTTON HEAD
$7.30¢3 651
#21
PIN, COTTER
$6.74¢3 370
#22
WASHER, PLAIN
$0.89¢443
#23
JOINT
$64.97¢32 487
#24
HOSE, RESERVOIR
$69.34¢34 672
#25
PROTECTOR, BRAKE HOSE
$57.30¢28 652
#26
CLAMP 1
$7.23¢3 617
#27
CLAMP
$3.68¢1 840
#28
CLAMP
$6.75¢3 375
#29
HOLDER, FUEL PIPE
$16.45¢8 223
#30
CLAMP
$4.83¢2 415
#31
HOLDER, BRAKE HOSE
$56.26¢28 129
#32
HOLDER, BRAKE HOSE 5
$16.30¢8 148
#33
BOLT, FLANGE
$3.29¢1 644
#34
BOLT, FLANGE
$3.29¢1 644
#35
CLIP,SCISSOR (replaces 90467-12053-00)
$5.75¢2 875
#36
TANK, RESERVOIR
$21.48¢10 741
#37
DIAPHRAGM, RESERVOIR
$23.76¢11 879
#38
PLATE, DIAPHRAGM
$18.24¢9 119
#39
CAP, RESERVOIR
$33.43¢16 715
#40
SCREW, FLAT HEAD
$1.35¢673
#41
BOLT, BUTTON HEAD
$2.90¢1 449
#42
HOSE, BRAKE 4
$130.94¢65 470
#43
BOLT, UNION
$9.07¢4 537
#44
GASKET
$7.72¢3 858
