FUEL TANK 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

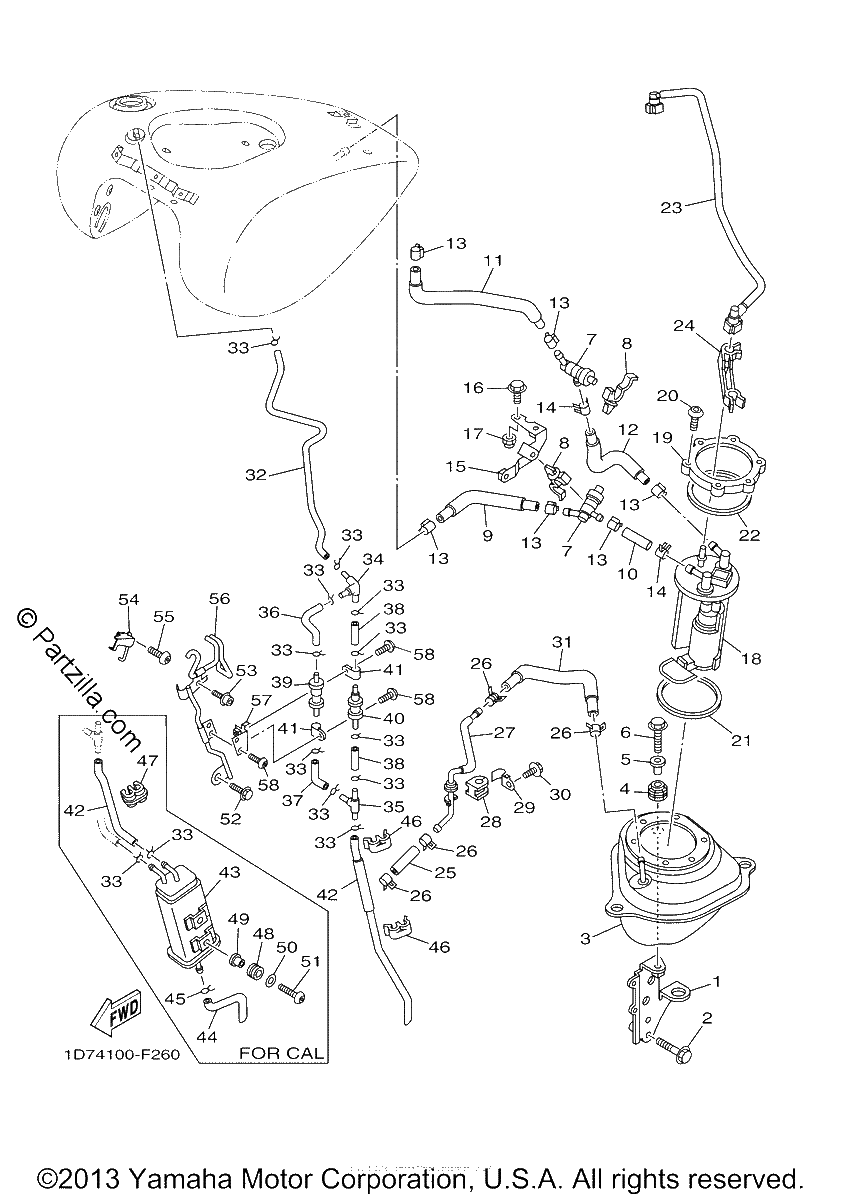

Diagrama de FUEL TANK 2

Repuestos

#0
1D7-24324-10-00
PIPE 13 | FOR CAL
$58.71¢29 356
1
#1
1D7-2172E-00-00
STAY, SIDE COVER 1
$48.54¢24 269
1
#2
95022-08055-00
BOLT, FLANGE
$1.99¢994
1
#3
1D7-24280-00-00
SUB FUEL TANK
$523.02¢261 513
1
#4
1D7-24185-00-00
DAMPER, LOCATING 5
$4.28¢2 138
1
#5
90387-0614M-00
COLLAR
$9.83¢4 913
1
#6
95812-06030-00
BOLT, FLANGE
$1.98¢988
1
#7
1D7-24305-00-00
FUEL PIPE JOINT COMP. 2
$159.82¢79 913
1
#8
90464-20010-00
CLAMP
$2.58¢1 288
1
#9
5C7-24311-00-00
PIPE, FUEL 1
$71.10¢35 550
1
#10
5C7-24312-00-00
PIPE 2
$14.05¢7 025
1
#11
5C7-24313-00-00
PIPE 3
$71.35¢35 675
1
#12
5C7-24314-00-00
PIPE 4
$86.10¢43 050
1
#13
5PX-2411M-00-00
CLIP
$10.54¢5 269
1
#14
90467-16009-00
CLIP
$6.46¢3 231
1
#15
1D7-2419F-00-00
BRACKET, CANISTOR
$34.85¢17 425
1
#16
90119-05004-00
BOLT, WITH WASHER
$6.39¢3 194
1
#17
95302-05800-00
NUT, CROWN
$1.82¢913
1
#18
1D7-13907-00-00
FUEL PUMP COMP.
$775.50¢387 750
1
#19
5PX-24491-00-00
BRACKET, FUEL PUMP
$95.08¢47 538
1
#20
90111-05026-00
BOLT, HEX. SOCKET BUTTON
$8.09¢4 044
1
#21
5PX-24486-11-00
O-RING
$36.21¢18 106
1
#22
5PX-24145-00-00
PLATE, DAMPER
$30.60¢15 300
1
#23
1D7-13971-00-00
PIPE, FUEL 1
$106.84¢53 419
1
#24
90464-15004-00
CLAMP
$8.68¢4 338
1
#25
5C7-13973-00-00
PIPE, FUEL 3
$7.64¢3 819
1
#26
90467-13133-00
CLIP(3YX) (replaces 90467-13083-00)
$6.27¢3 137
1
#27
1D7-14295-00-00
PIPE, FUEL
$67.60¢33 800
1
#28
5PX-14435-00-00
GROMMET
$8.69¢4 344
1
#29
5PX-14261-01-00
HOLDER
$5.25¢2 625
1
#30
95027-06010-00
BOLT,FLANGE(4MY)
$2.95¢1 475
1
#31
5C7-13974-00-00
PIPE, FUEL 4
$73.58¢36 788
1
#32
1D7-24316-20-00
PIPE 6
$76.88¢38 438
1
#33
90467-09002-00
Clip
$2.26¢1 131
1
#34
90413-06002-00
WAY 3
$22.91¢11 456
1
#35
90413-06031-00
WAY 3 | FOR CAL
$10.11¢5 056
1
#36
1D7-24317-20-00
PIPE 7
$20.66¢10 331
1
#37
1D7-24321-10-00
PIPE 10
$17.79¢8 894
1
#38
1D7-24322-10-00
PIPE 11
$5.14¢2 569
1
#39
5PX-24180-00-00
ROLL OVER VALVE ASSY | FOR CAL
$62.61¢31 306
1
#39
91314-06014-00
BOLT, HEXAGON SOCKET HEAD
$4.20¢2 100
1
#40
4WM-24180-00-00
ROLL OVER VALVE ASSY
$27.21¢13 606
1
#41
90464-15014-00
Clamp
$2.35¢1 175
1
#42
1D7-24317-00-00
PIPE 7 | FOR U49
$58.38¢29 188
1
#43
1D7-24170-00-00
CANISTER ASSY | FOR CAL
$360.15¢180 075
1
#44
1D7-24325-00-00
PIPE 14 | FOR CAL
$15.81¢7 906
1
#45
90467-100A1-00
CLIP | FOR CALIFORNIA
$7.60¢3 800
1
#46
90464-10M38-00
CLAMP
$9.22¢4 613
1
#47
90464-10M57-00
CLAMP | FOR CALIFORNIA
$5.69¢2 844
1
#48
90480-13163-00
GROMMET | FOR CALIFORNIA
$7.08¢3 538
1
#49
90387-062L2-00
COLLAR | FOR CALIFORNIA
$6.76¢3 381
1
#50
90201-06023-00
WASHER, PLATE | FOR CALIFORNIA
$4.49¢2 244
1
#51
90111-06046-00
BOLT, HEX. SOCKET BUTTON | FOR CALIFORNIA
$6.47¢3 238
1
#52
90105-06791-00
BOLT, FLANGE
$2.95¢1 475
1
#54
1D7-26328-10-00
GUIDE, CABLE
$57.05¢28 525
1
#55
90111-06146-00
BOLT,HEX. SOCKET BUT
$1.17¢587
1
#56
1D7-26292-00-00
STAY
$146.43¢73 213
1
#57
1D7-26299-00-00
PLATE, MIRROR FITTING 2
$31.84¢15 919
1
#58
92017-05010-00
BOLT, BUTTON HEAD
$7.10¢3 550
1
