SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

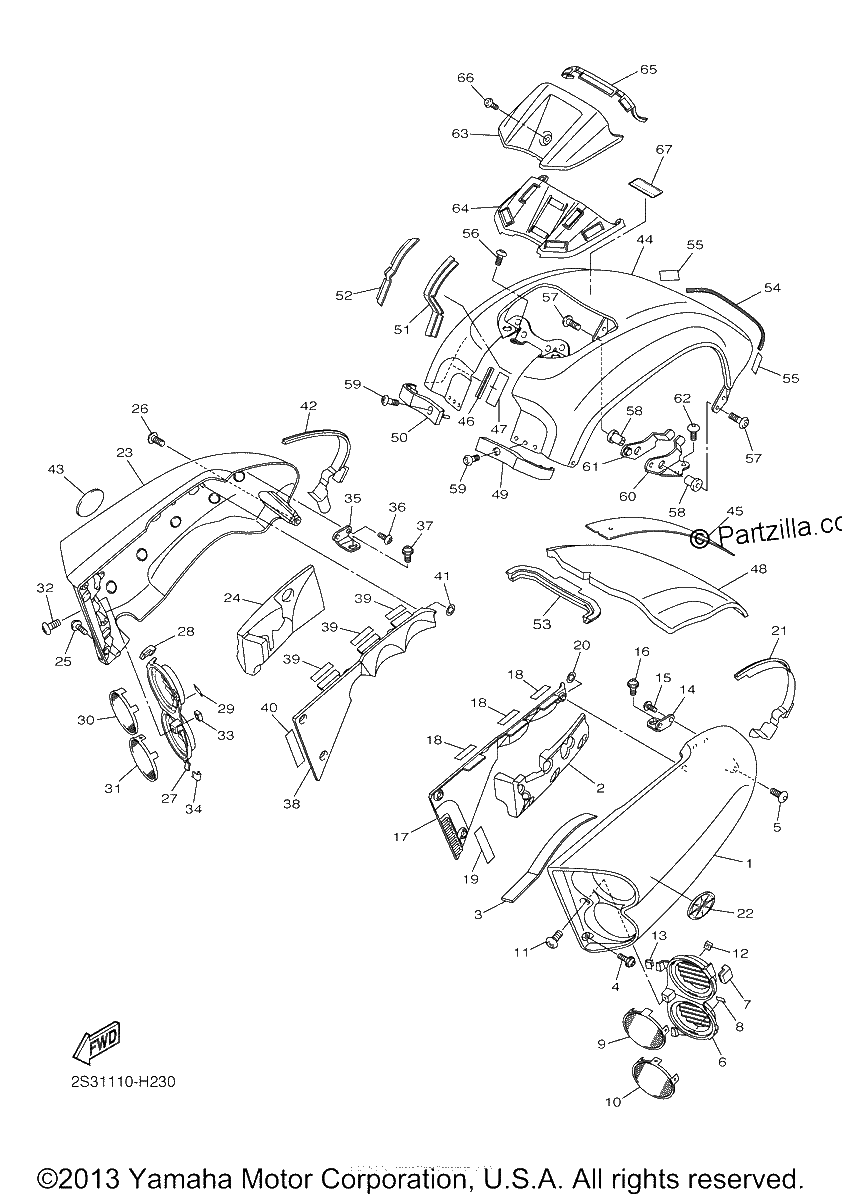

Diagrama de SIDE COVER

Repuestos

#1
2S3-21711-00-P0
COVER, SIDE 1
$430.97¢215 487
1
#2
2S3-21778-00-00
DAMPER, locating 1
$37.40¢18 699
1
#3
5C7-21649-00-00
Damper
$7.31¢3 657
1
#4
90111-06015-00
bolt
$7.01¢3 507
1
#5
90111-06041-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#6
2S3-2172H-00-00
PANEL 4
$24.02¢12 012
1
#7
2S3-2177M-00-00
DAMPER, LOCATING 3
$7.49¢3 743
1
#8
1HX-27415-00-00
PLATE, DAMPER
$7.23¢3 617
1
#9
2S3-2837N-00-00
GRILL, AIR INTAKE 1
$48.14¢24 069
1
#10
2S3-2837R-00-00
GRILL, AIR INTAKE 2
$46.95¢23 477
1
#11
92014-05012-00
BOLT, BUTTON HEAD
$2.89¢1 443
1
#12
90173-05006-00
NUT, SQUARE
$5.78¢2 892
1
#13
1FK-2171H-00-00
MOLE 1
$7.08¢3 542
1
#14
2S3-2172U-00-00
BRKT 7
$10.75¢5 376
1
#15
92014-05008-00
BOLT, BUTTON HEAD
$3.83¢1 915
1
#16
90111-06009-00
BOLT(3DM)
$5.98¢2 990
1
#17
2S3-2836K-00-00
PANEL, INNER 1
$34.97¢17 486
1
#18
2S3-21732-00-00
SEAL 1
$1.85¢926
1
#19
2S3-2173N-00-00
SEAL 4
$1.93¢966
1
#20
90183-06008-00
NUT,SPRING
$7.31¢3 657
1
#21
2S3-2171L-00-00
MOLE, SIDE COVER 1
$28.73¢14 363
1
#22
2S3-2173B-00-00
EMBLEM 3D
$70.89¢35 443
1
#23
2S3-21721-00-P0
COVER, SIDE 2
$402.90¢201 451
1
#24
2S3-21779-00-00
DAMPER, locating 2
$54.60¢27 301
1
#25
90111-06015-00
bolt
$7.01¢3 507
1
#26
90111-06041-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#27
2S3-2172J-00-00
PANEL, 5
$24.02¢12 012
1
#28
2S3-2177M-00-00
DAMPER, LOCATING 3
$7.49¢3 743
1
#29
1HX-27415-00-00
PLATE, DAMPER
$7.23¢3 617
1
#30
2S3-2837N-00-00
GRILL, AIR INTAKE 1
$48.14¢24 069
1
#31
2S3-2837R-00-00
GRILL, AIR INTAKE 2
$46.95¢23 477
1
#32
92014-05012-00
BOLT, BUTTON HEAD
$2.89¢1 443
1
#33
90173-05006-00
NUT, SQUARE
$5.78¢2 892
1
#34
1FK-2171H-00-00
MOLE 1
$7.08¢3 542
1
#35
2S3-2172V-00-00
BRKT 8
$7.64¢3 818
1
#36
92014-05008-00
BOLT, BUTTON HEAD
$3.83¢1 915
1
#37
90111-06009-00
BOLT(3DM)
$5.98¢2 990
1
#38
2S3-2836L-00-00
PANEL, INNER 2
$34.97¢17 486
1
#39
2S3-2171T-00-00
MOLE, SIDE COVER 5
$34.91¢17 457
1
#39
2S3-21732-00-00
SEAL 1
$1.85¢926
1
#40
2S3-2173N-00-00
SEAL 4
$1.93¢966
1
#41
90183-06008-00
NUT,SPRING
$7.31¢3 657
1
#42
2S3-2171M-00-00
MOLE, SIDE COVER 2
$26.92¢13 461
1
#43
2S3-2174B-00-00
EMBLEM 3D
$65.46¢32 729
1
#44
2S3-2171A-00-P6
COVER, TOP | MNM3
$555.44¢277 719
1
#45
2S3-2175G-00-00
REINF.
$58.14¢29 072
1
#46
2S3-28347-00-00
MOLE 3
$7.28¢3 640
1
#47
2AL-84553-00-00
DAMPER
$11.95¢5 974
1
#48
2S3-28371-00-00
Damper
$18.49¢9 246
1
#49
2S3-2174X-00-00
Damper
$29.90¢14 950
1
#50
2S3-2174Y-00-00
Damper
$10.41¢5 204
1
#51
2S3-2171N-00-00
MOLE, SIDE COVER 3
$26.78¢13 392
1
#52
2S3-2171R-00-00
MOLE, SIDE COVER 4
$14.44¢7 222
1
#54
2S3-2171U-00-00
MOLE, SIDE COVER 6
$18.27¢9 137
1
#55
2AL-84553-00-00
DAMPER
$11.95¢5 974
1
#56
90111-06138-00
BOLT,HEX. SOCKET BUT
$6.08¢3 042
1
#57
92017-06020-00
BOLT, BUTTON HEAD
$2.79¢1 397
1
#58
90179-06524-00
Nut
$3.93¢1 967
1
#59
90111-06132-00
BOLT,HEX. SOCKET BUT
$4.69¢2 346
1
#60
2S3-2172M-00-00
BRACKET 3
$29.77¢14 887
1
#61
2S3-2172N-00-00
BRACKET 4
$17.85¢8 924
1
#62
90111-06041-00
BOLT, HEX. SOCKET BUTTON
$6.88¢3 439
1
#63
2S3-83559-00-00
COVER, METER
$210.24¢105 121
1
#64
2S3-28345-00-00
MOLE 1
$51.95¢25 973
1
#65
2S3-28346-00-00
MOLE 2
$46.60¢23 299
1
#66
92014-06010-00
BOLT, BUTTON HEAD
$5.78¢2 892
1
#67
5GK-2118K-00-00
LABEL, CAUTION
$5.37¢2 685
1
