SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

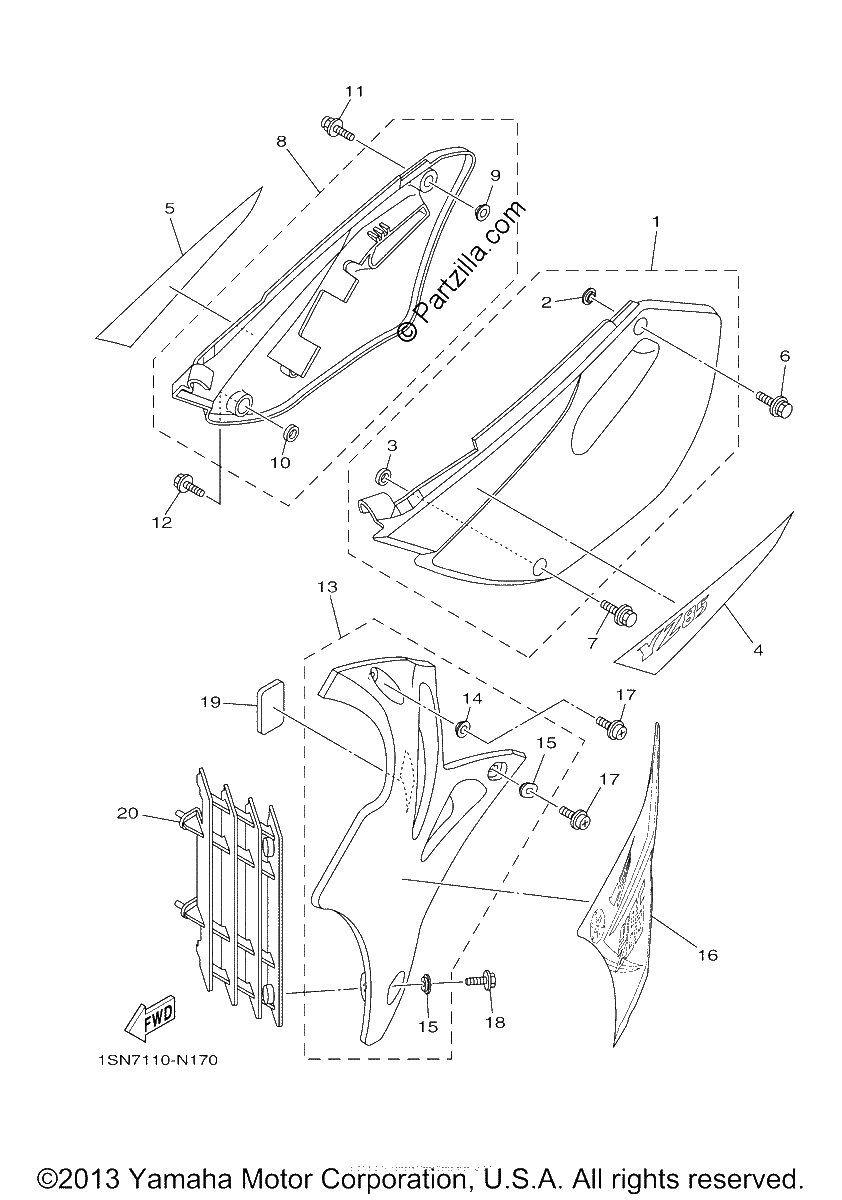

Diagrama de SIDE COVER

Repuestos

#1
5PA-21711-00-00
COVER, SIDE 1
$45.67¢22 833
1
#2
90387-06009-00
COLLAR
$8.66¢4 330
1
#3
90387-1001B-00
COLLAR
$3.42¢1 708
1
#4
5PA-2173E-30-00
GRAPHIC 1
$23.39¢11 696
1
#5
5PA-2173F-30-00
GRAPHIC 2
$23.39¢11 696
1
#6
90119-06240-00
BOLT, WITH WASHER
$3.36¢1 679
1
#7
90119-06217-00
BOLT,WITH WASHER
$5.75¢2 875
1
#8
5PA-21721-00-00
COVER, SIDE 2
$45.52¢22 758
1
#9
90387-06009-00
COLLAR
$8.66¢4 330
1
#10
90387-1001B-00
COLLAR
$3.42¢1 708
1
#11
90119-06240-00
BOLT, WITH WASHER
$3.36¢1 679
1
#12
90119-06217-00
BOLT,WITH WASHER
$5.75¢2 875
1
#13
5PA-21731-10-00
COVER, SIDE 3
$58.13¢29 066
1
#14
90387-06009-00
COLLAR
$8.66¢4 330
1
#15
5PA-21748-00-00
COLLAR
$14.72¢7 360
1
#16
1SN-2174G-20-00
GRAPHIC 3
$84.32¢42 159
1
#17
90159-06182-00
SCREW, WITH WASHER
$7.01¢3 507
1
#18
90159-06021-00
SCREW, WITH WASHER
$2.83¢1 414
1
#19
1FK-21746-00-00
DAMPER
$7.31¢3 657
1
#20
5PH-2172A-11-00
PANEL 1
$20.17¢10 085
1
