COWLING 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

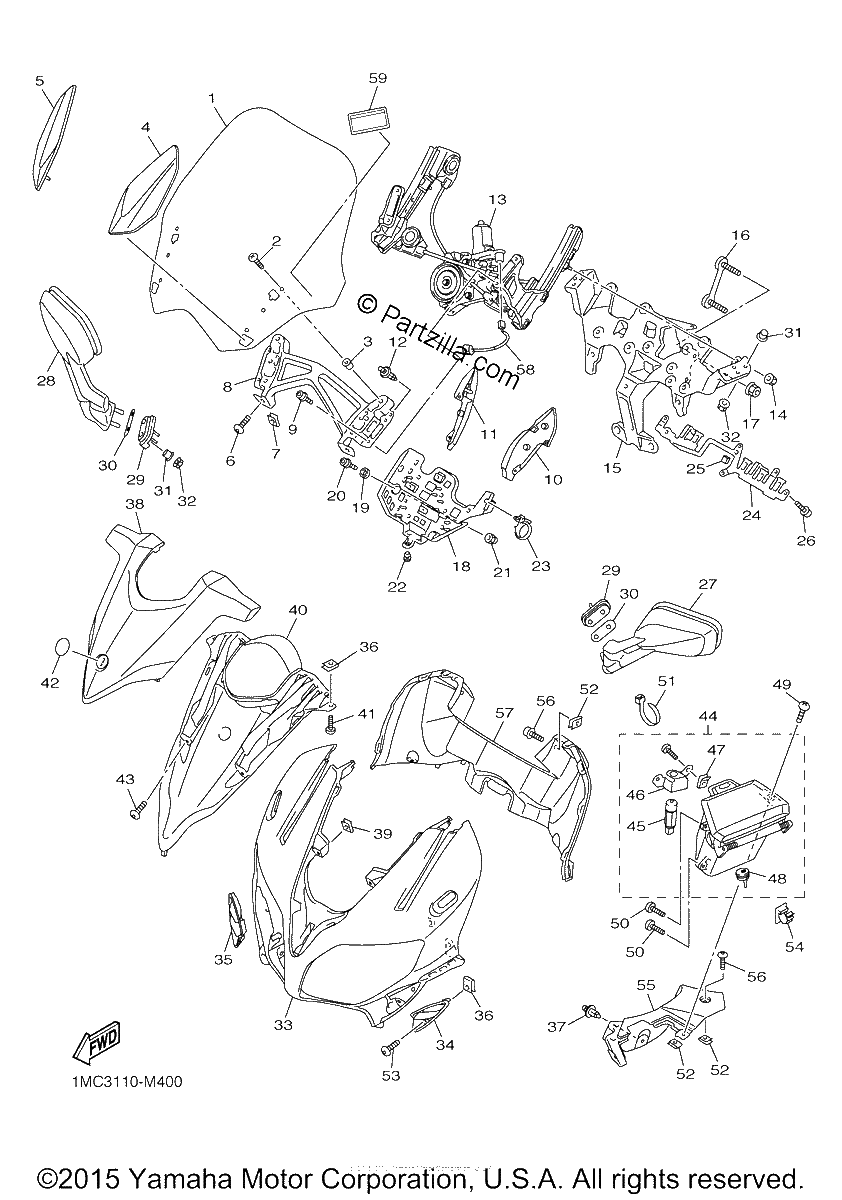

Diagrama de COWLING 1

Repuestos

#1
1MC-28381-00-00
WINDSHIELD
$626.35¢313 175
1
#2
90150-05024-00
SCREW, ROUND HEAD
$3.40¢1 700
1
#3
90179-05523-00
NUT
$6.78¢3 388
1
#4
1MC-2842A-00-P5
COVER 5 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$120.60¢60 300
1
#5
1MC-2843C-00-P5
COVER 6 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$125.49¢62 744
1
#6
92012-05012-00
BOLT, BUTTON HEAD
$3.25¢1 625
1
#7
90183-050A7-00
NUT, SPRING
$3.11¢1 556
1
#8
1MC-28322-00-00
STAY 2
$84.35¢42 175
1
#9
90109-060E9-00
BOLT
$8.39¢4 194
1
#10
1MC-2843J-00-00
COVER 3
$7.86¢3 931
1
#11
1MC-2844J-00-00
COVER 4
$7.86¢3 931
1
#12
90269-05005-00
RIVET
$3.57¢1 787
1
#13
1MC-83306-00-00
DRIVE UNIT ASSY
$709.99¢354 994
1
#14
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
#15
1MC-28356-01-00
STAY 1
$391.53¢195 763
1
#16
5JW-28336-00-00
PLATE
$24.70¢12 350
1
#17
95707-10500-00
NUT, FLANGE
$2.05¢1 025
1
#18
1MC-2838K-00-00
BOX 1
$18.34¢9 169
1
#19
90387-06106-00
COLLAR
$6.45¢3 225
1
#20
90110-06245-00
BOLT, HEXAGON SOCKET HEAD
$7.46¢3 731
1
#21
95380-06800-00
NUT, CROWN
$8.01¢4 006
1
#22
90338-07180-00
PLUG
$6.76¢3 381
1
#23
90464-36006-00
CLAMP
$2.61¢1 306
1
#24
1MC-28366-00-00
BRACKET
$49.56¢24 781
1
#25
1MC-2834E-00-00
DAMPER 3
$5.11¢2 556
1
#26
91312-06014-00
bolt
$5.65¢2 825
1
#27
3P6-26280-10-P4
REAR VIEW MIRROR ASSY (LEFT) | Use for Color Deep Red Metallic K ( DRMK / 0918 )
No Disponible
1
#28
3P6-26290-10-P4
REAR VIEW MIRROR ASSY (RIGHT) | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$345.84¢172 919
1
#29
5JW-26298-00-00
PLATE, MIRROR FITTING 1
$13.70¢6 850
1
#30
3P6-26299-00-00
PLATE, MIRROR FITTING 2
$7.65¢3 825
1
#31
90387-0602X-00
COLLAR
$9.91¢4 956
1
#32
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
#33
1MC-2835G-00-P3
BODY, FRONT UPPER 1 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$342.35¢171 175
1
#34
1MC-2837N-00-00
GRILL, AIR INTAKE 1
$13.73¢6 863
1
#35
1MC-2837R-00-00
GRILL, AIR INTAKE 2
$13.77¢6 887
1
#36
90183-05042-00
NUT, SPRING
$1.25¢625
1
#37
90269-06008-00
RIVET
$8.80¢4 400
1
#38
1MC-28351-00-P4
BODY, COWLING | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$260.70¢130 350
1
#39
90167-05080-00
SCREW, TAPPING
$2.26¢1 131
1
#39
90183-05042-00
NUT, SPRING
$1.25¢625
1
#40
1MC-2838N-00-00
DUCT 1
$246.91¢123 456
1
#41
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#42
8GC-2836B-02-00
TUNING FORK MARK
$43.05¢21 525
1
#43
90167-05080-00
SCREW, TAPPING
$2.26¢1 131
1
#44
3P6-2830N-00-PC
BOX SUB ASSY | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$516.73¢258 363
1
#45
5VS-28470-00-00
LOCK ASSY
$241.54¢120 769
1
#46
5VS-28367-00-00
BRACKET
$12.52¢6 262
1
#47
90183-051A0-00
NUT, SPRING
$3.17¢1 588
1
#48
3P6-28187-00-00
GROMMET
$8.61¢4 306
1
#49
90154-05007-00
SCREW, BINDING
$3.57¢1 787
1
#50
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#51
90464-16019-00
Clamp
$0.83¢413
1
#52
90183-050A6-00
NUT, SPRING
$2.82¢1 412
1
#54
90464-54086-00
CLAMP
$3.02¢1 513
1
#55
1MC-28365-00-00
COVER
$286.40¢143 200
1
#56
90111-05021-00
BOLT,HEX. SOCKET BUT
$5.91¢2 956
1
#57
1MC-2837L-00-00
PANEL, CONSOLE 1
$246.44¢123 219
1
#58
1MC-82507-00-00
WIRE, LEAD
$20.25¢10 125
1
#59
4B5-2815K-00-00
LABEL, NOTICE WINDSHIELD 1
$8.92¢4 462
1
