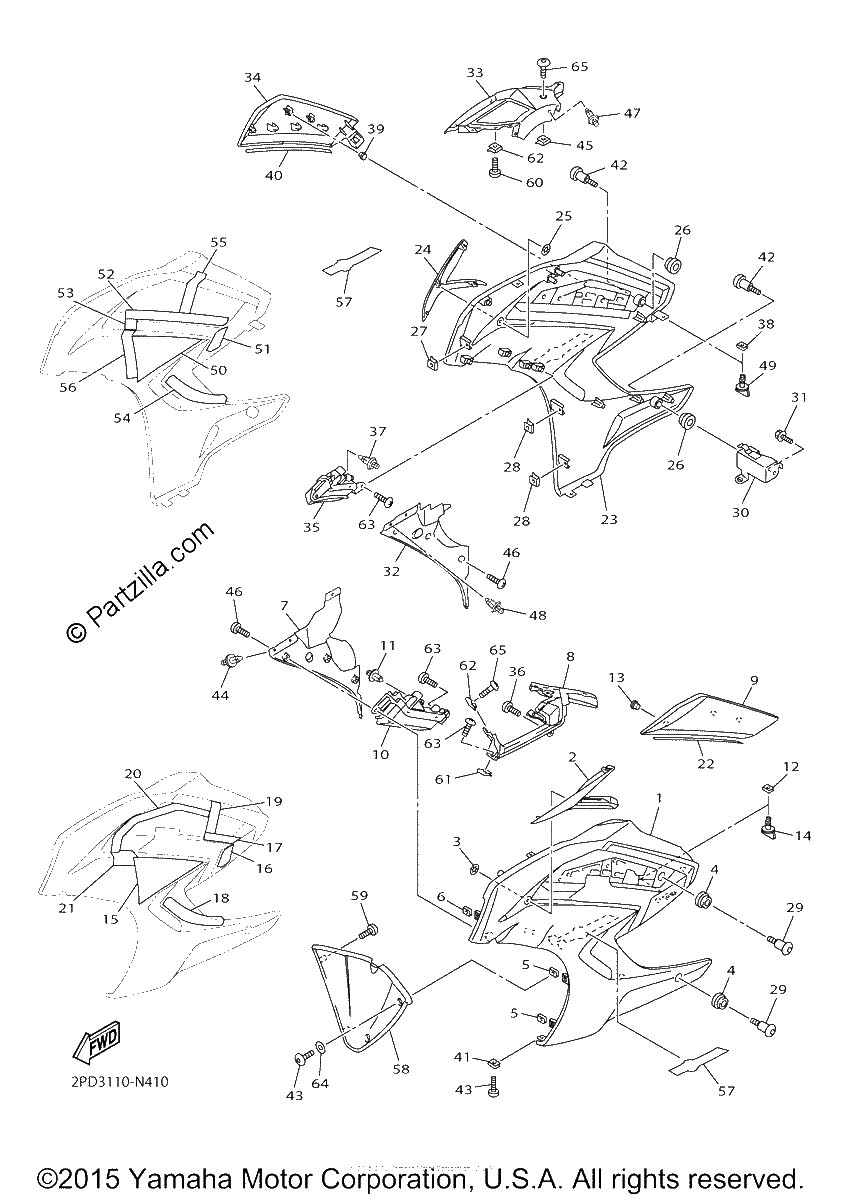

COWLING 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
BODY, FRONT LOWER 1 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$672.74¢336 369
#2
PANEL 1 | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$225.37¢112 683
#3
NUT, SPRING
$0.46¢230
#4
GROMMET
$7.51¢3 755
#5
NUT, SPRING
$2.60¢1 299
#6
NUT, SPRING
$1.15¢575
#7
PANEL, INNER 1
$59.78¢29 888
#8
PANEL, INNER 3
$252.37¢126 184
#9
VISOR, SIDE 1 | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$152.43¢76 216
#10
FRONT FLASHER LIGHT ASSY 1
$159.22¢79 609
#11
RIVET
$5.93¢2 967
#12
PLATE, SPRING
$6.82¢3 410
#13
PLUG
$6.22¢3 111
#14
HEAD
$14.34¢7 170
#15
DAMPER
$12.97¢6 486
#16
DAMPER 1
$1.94¢972
#17
DAMPER 3
$2.68¢1 340
#18
DAMPER, PLATE
$4.19¢2 093
#19
DAMPER, PLATE
$1.82¢909
#20
DAMPER, PLATE
$3.71¢1 857
#21
DAMPER 9
$5.31¢2 657
#22
DAMPER, PLATE
$4.23¢2 116
#23
BODY, FRONT UNDER 2 | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$641.69¢320 844
#24
PANEL 2 | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$225.37¢112 683
#25
NUT, SPRING
$0.46¢230
#26
GROMMET
$7.51¢3 755
#27
NUT, SPRING
$1.15¢575
#28
NUT, SPRING
$2.60¢1 299
#29
BOLT
$6.46¢3 231
#30
BRACKET 3
$28.23¢14 116
#31
BOLT, FLANGE (replaces 95827-06012-00)
$1.64¢822
#32
PANEL, INNER 2
$59.78¢29 888
#33
PANEL, INNER 4
$204.34¢102 172
#34
VISOR, SIDE 2 | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$212.40¢106 202
#35
FRONT FLASHER LIGHT ASSY 2
$169.87¢84 933
#36
TAPPING SCREW
$2.17¢1 087
#37
RIVET
$5.93¢2 967
#38
PLATE, SPRING
$6.82¢3 410
#39
PLUG
$6.22¢3 111
#39
DAMPER, PLATE
$1.32¢661
#40
DAMPER, PLATE
$4.23¢2 116
#41
NUT, SPRING
$2.60¢1 299
#42
BOLT
$6.46¢3 231
#43
BOLT,HEX. SOCKET BUT
$5.44¢2 720
#44
RIVET
$8.10¢4 048
#45
NUT, SPRING
$2.60¢1 299
#46
TAPPING SCREW
$2.17¢1 087
#47
RIVET
$8.10¢4 048
#48
RIVET
$8.10¢4 048
#49
HEAD
$14.34¢7 170
#50
DAMPER
$9.54¢4 773
#51
DAMPER 2
$2.02¢1 012
#52
DAMPER 4
$5.61¢2 806
#54
DAMPER, PLATE
$4.19¢2 093
#55
DAMPER, PLATE
$1.82¢909
#56
DAMPER 10
$7.28¢3 640
#57
EMBLEM 3D
$79.17¢39 583
#58
COVER, UNDER | Use for Color Deep Red Metallic K ( DRMK / 0918 )
$213.42¢106 709
#59
TAPPING SCREW
$2.17¢1 087
#60
BOLT,HEX. SOCKET BUT
$5.44¢2 720
#61
NUT, SPRING
$1.15¢575
#62
NUT, SPRING
$2.60¢1 299
#63
TAPPING SCREW
$2.17¢1 087
#64
WASHER, PLATE
$7.05¢3 525
#65
BOLT,HEX. SOCKET BUT
$5.44¢2 720
