REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

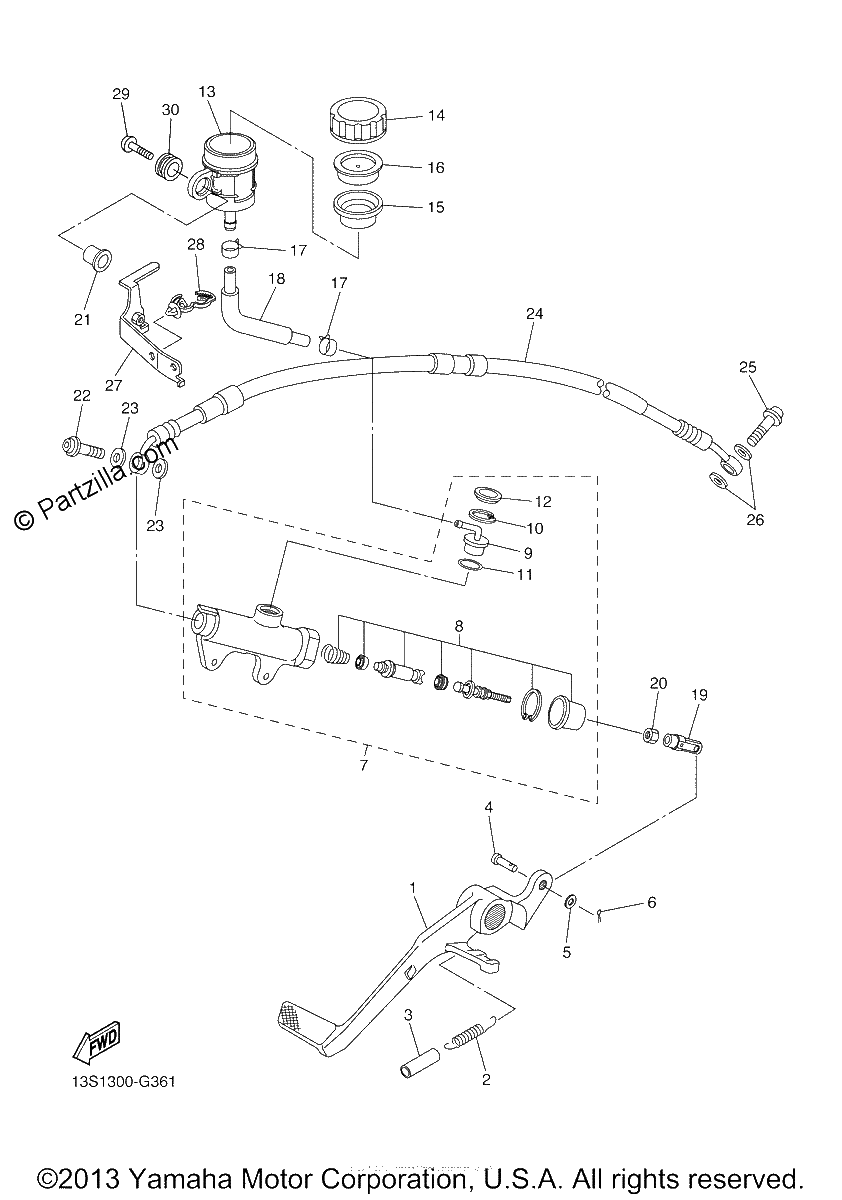

Diagrama de REAR MASTER CYLINDER

Repuestos

#1
2C0-27211-00-00
PEDAL, BRAKE
$147.99¢73 994
1
#2
90506-20193-00
SPRING, TENSION
$14.36¢7 181
1
#3
90446-15386-00
HOSE
$6.91¢3 456
1
#4
91701-06018-00
PIN,CLEVIS (replaces 91702-06018-00)
$5.34¢2 669
1
#5
92907-06200-00
WASHER
$7.35¢3 675
1
#6
91402-16012-00
PIN, COTTER
$7.33¢3 663
1
#7
2C0-2583V-01-00
REAR MASTER CYLINDER ASSY.
$269.24¢134 619
1
#8
5XT-W0042-60-00
CYLINDER KIT, MASTER
$102.69¢51 344
1
#9
4ML-2582A-50-00
JOINT
$14.55¢7 275
1
#10
2VN-25866-00-00
CIRCLIP
$7.08¢3 538
1
#11
93210-15566-00
O-RING
$6.88¢3 438
1
#12
3FV-2589A-00-00
COVER, DUST
$21.02¢10 513
1
#13
2C0-25894-00-00
TANK, RESERVOIR
$29.13¢14 563
1
#14
4PX-25852-00-00
CAP, RESERVOIR
$24.53¢12 263
1
#15
2VN-25854-00-00
DIAPHRAGM, RESERVOIR
$23.38¢11 688
1
#16
2VN-25855-00-00
BUSH,DIAPHRAGM
$11.34¢5 669
1
#17
90467-12085-00
CLIP
$8.69¢4 344
1
#18
2C0-25895-00-00
HOSE, RESERVOIR
$20.38¢10 188
1
#19
4XV-27222-01-00
JOINT
$46.41¢23 206
1
#20
95317-08700-00
NUT
$8.39¢4 194
1
#21
90387-05028-00
COLLAR
$6.95¢3 475
1
#22
90401-10172-00
BOLT, UNION
$4.41¢2 206
1
#23
90430-10005-00
GASKET
$8.39¢4 194
1
#24
2C0-25874-00-00
HOSE, BRAKE
$111.48¢55 738
1
#25
90401-10172-00
BOLT, UNION
$4.41¢2 206
1
#26
90430-10005-00
GASKET
$8.39¢4 194
1
#27
13S-21228-00-00
BRACKET, RESERVE TANK
$56.91¢28 456
1
#28
90464-13249-00
CLAMP
$3.57¢1 787
1
#29
90111-05026-00
BOLT, HEX. SOCKET BUTTON
$8.09¢4 044
1
#30
2C0-26326-00-00
GROMMET
$6.42¢3 213
1
