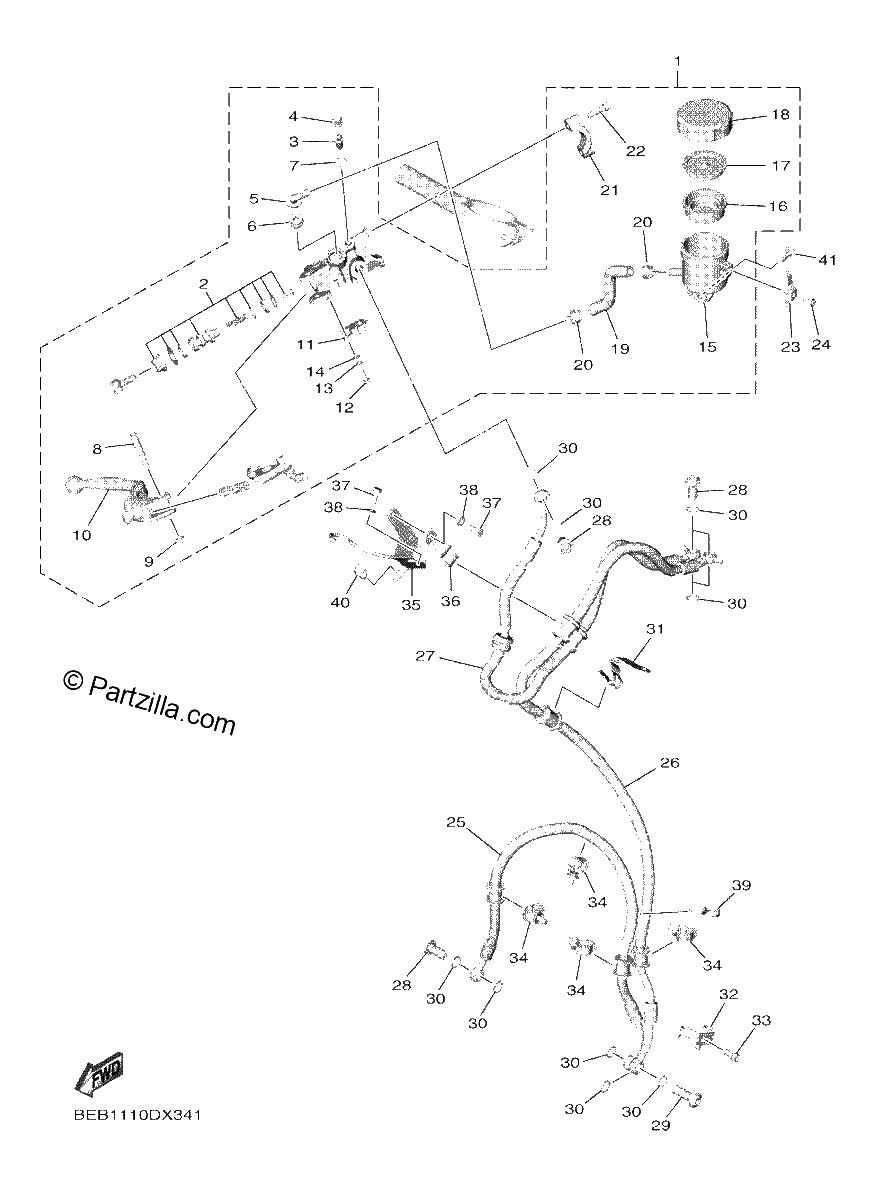

FRONT MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
MASTER CYLINDER ASSY
$423.87¢211 933
#2
. CYLINDER KIT, MASTER
No Disponible
#3
SCREW, BLEED
$8.26¢4 129
#4
CAP
$12.79¢6 394
#5
JOINT
$4.06¢2 030
#6
O-RING
$10.48¢5 238
#7
SEAL 1
$1.77¢886
#8
BOLT, LEVER
$6.88¢3 439
#9
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
#10
LEVER SET
$53.06¢26 531
#11
FRONT STOP SWITCH ASSY
$33.78¢16 888
#12
SCREW, PAN HEAD
No Disponible
#13
WASHER, SPRING
$0.68¢339
#14
WASHER, PLATE
$1.10¢552
#15
TANK, RESERVOIR
$36.20¢18 101
#16
DIAPHRAGM, RESERVOIR
$30.90¢15 450
#17
BUSH, DIAPHRAGM
$4.13¢2 064
#18
CAP, RESERVOIR
$17.39¢8 694
#19
HOSE, RESERVOIR
$6.36¢3 180
#20
CLIP
$6.43¢3 214
#21
BRACKET, MASTER CYLINDER
$34.79¢17 394
#22
BOLT
$4.30¢2 151
#23
HOLDER
$8.21¢4 105
#24
SCREW
$6.99¢3 496
#25
HOSE, BRAKE 1
$51.73¢25 863
#26
BRAKE HOSE ASSY
$77.69¢38 847
#27
HOSE, BRAKE
$67.45¢33 724
#28
BOLT, UNION
$4.06¢2 030
#29
BOLT, UNION
$17.45¢8 723
#30
GASKET
$7.72¢3 858
#31
HOLDER, BRAKE HOSE 1
$8.73¢4 364
#32
HOLDER, BRAKE HOSE
$8.46¢4 232
#33
BOLT, FLANGE DEEP RECESS
$1.01¢506
#34
CLAMP
$7.59¢3 795
#35
BRACKET
$29.01¢14 507
#36
BRACKET 2
$5.96¢2 978
#37
BOLT, HEXAGON
$6.75¢3 375
#38
WASHER, PLATE
$0.89¢443
#39
CLAMP
$1.68¢839
#40
CLAMP
$5.98¢2 990
#41
BOLT, HEX. SOCKET BUTTON
$7.44¢3 720
