FUEL TANK 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

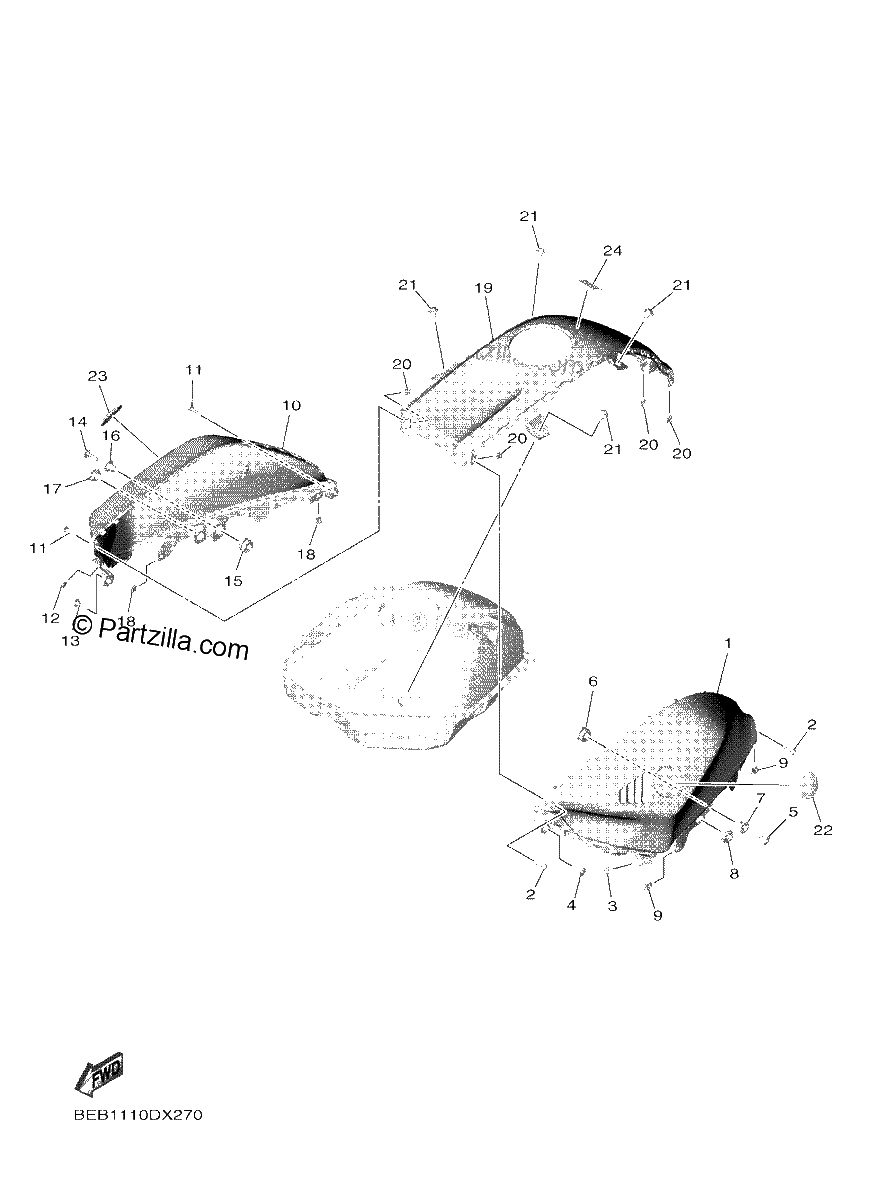

Diagrama de FUEL TANK 2

Repuestos

#1
BEB-24129-00-33
COVER, SIDE 1 (YAMAHA BLACK) *{UR FOR YB}*
$135.23¢67 614
1
#2
90160-05014-00
SCREW, ROUND TAPPING
$7.08¢3 542
1
#3
90183-05042-00
NUT, SPRING
$1.15¢575
1
#4
90269-06083-00
RIVET
$5.93¢2 967
1
#5
90111-06150-00
BOLT, HEX. SOCKET BUTTON
$2.28¢1 138
1
#6
90480-17007-00
GROMMET
$6.92¢3 461
1
#7
90387-10107-00
COLLAR
$4.98¢2 490
1
#8
90480-01558-00
Grommet
$4.31¢2 156
1
#9
90183-05042-00
NUT, SPRING
$1.15¢575
1
#10
BEB-24139-00-33
COVER, SIDE 2 (YAMAHA BLACK) *{UR FOR YB}*
$135.23¢67 614
1
#11
90160-05014-00
SCREW, ROUND TAPPING
$7.08¢3 542
1
#12
90183-05042-00
NUT, SPRING
$1.15¢575
1
#13
90269-06083-00
RIVET
$5.93¢2 967
1
#14
90111-06150-00
BOLT, HEX. SOCKET BUTTON
$2.28¢1 138
1
#15
90480-17007-00
GROMMET
$6.92¢3 461
1
#16
90387-10107-00
COLLAR
$4.98¢2 490
1
#17
90480-01558-00
Grommet
$4.31¢2 156
1
#18
90183-05042-00
NUT, SPRING
$1.15¢575
1
#19
BEB-2171A-00-P1
COVER, TOP (YAMAHA BLACK) *{UR FOR YB}*
$134.45¢67 223
1
#20
90183-05042-00
NUT, SPRING
$1.15¢575
1
#21
90109-06322-00
bolt
$5.95¢2 973
1
#22
1RC-2413B-01-00
EMBLEM (replaces 1RC-2413B-00-00)
$21.98¢10 988
1
#23
1RC-2413B-01-00
EMBLEM (replaces 1RC-2413B-00-00)
$21.98¢10 988
1
#24
1TP-2118K-A2-00
. LABEL, CAUTION
$6.59¢3 295
1
