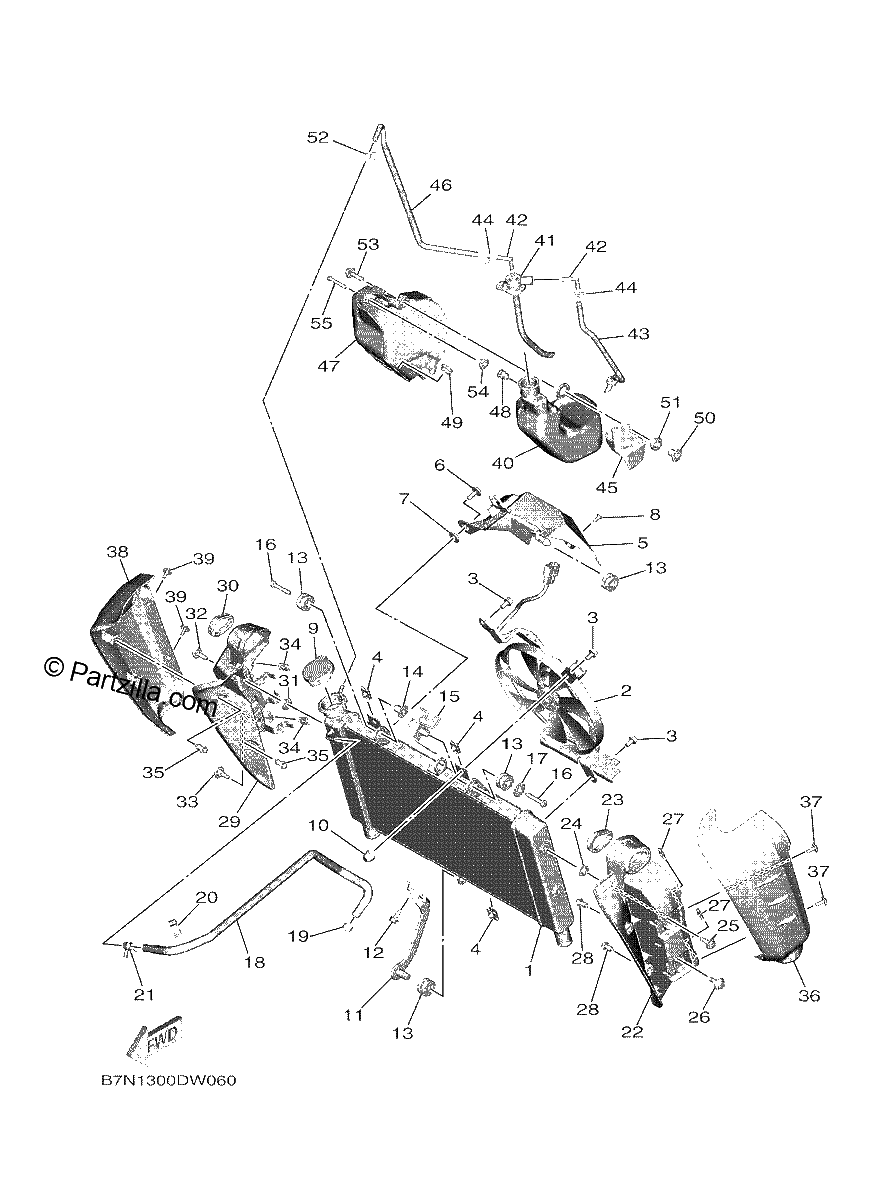

RADIATOR HOSE
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
RADIATOR COMP
$330.05¢165 025
#2
BLOWER ASSY
$362.67¢181 337
#3
BOLT, BLOWER HOLDING
$7.94¢3 969
#4
NUT 1
$4.71¢2 356
#5
COVER, RADIATOR
$12.32¢6 163
#6
BOLT, HEX. SOCKET BUTTON
$3.17¢1 588
#7
COLLAR
$7.34¢3 669
#8
RIVET
$3.57¢1 787
#9
CAP, RADIATOR
$37.52¢18 763
#10
CAP, GREASE NIPPLE
$2.23¢1 113
#11
STAY 2
$23.34¢11 669
#12
BLOT, FLANGE DEEP RECESS
$7.41¢3 706
#13
GROMMET
$7.34¢3 669
#14
COLLAR
$7.34¢3 669
#15
GUIDE, CABLE 2
$34.24¢17 119
#16
BOLT
$1.23¢613
#17
WASHER, PLATE
$3.26¢1 631
#18
HOSE 1
$44.70¢22 350
#19
CLIP
$7.81¢3 906
#20
CLAMP
$7.46¢3 731
#21
CLIP
$7.81¢3 906
#22
BRACKET 1
$16.51¢8 256
#23
DAMPER, FLASHER 1
$4.34¢2 169
#24
COLLAR
$3.85¢1 925
#25
BOLT, WITH WASHER
$7.34¢3 669
#26
BOLT
$7.24¢3 619
#27
NUT, SPRING
$2.82¢1 412
#28
RIVET
$2.23¢1 113
#29
BRACKET 2
$13.64¢6 819
#30
DAMPER, FLASHER 1
$4.34¢2 169
#31
COLLAR
$3.85¢1 925
#32
BOLT, WITH WASHER
$7.34¢3 669
#33
BOLT
$7.24¢3 619
#34
NUT, SPRING
$2.82¢1 412
#35
RIVET
$2.23¢1 113
#36
COVER, SIDE 5
$10.29¢5 144
#37
BOLT, HEX. SOCKET BUTTON
$6.19¢3 094
#38
COVER, SIDE 6
$8.19¢4 094
#39
BOLT, HEX. SOCKET BUTTON
$6.19¢3 094
#40
TANK, RECOVERY
$40.38¢20 188
#41
CAP
$18.19¢9 094
#42
ELBOW
$4.66¢2 331
#43
PIPE, BREATHER
$10.74¢5 369
#44
CLIP
$7.34¢3 669
#45
PROTECTOR 1
$4.05¢2 025
#46
PIPE 1
$15.30¢7 650
#47
COVER
$17.96¢8 981
#48
NUT
$6.78¢3 388
#49
GROMMET
$10.53¢5 263
#50
COLLAR
$4.56¢2 281
#51
COLLAR
$2.86¢1 431
#52
CLIP
$7.34¢3 669
#53
BOLT, HEXAGON SOCKET HEAD
$7.43¢3 713
#54
COLLAR
$4.95¢2 475
#55
BOLT, BUTTON HEAD
$6.19¢3 094
