FUEL TANK 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

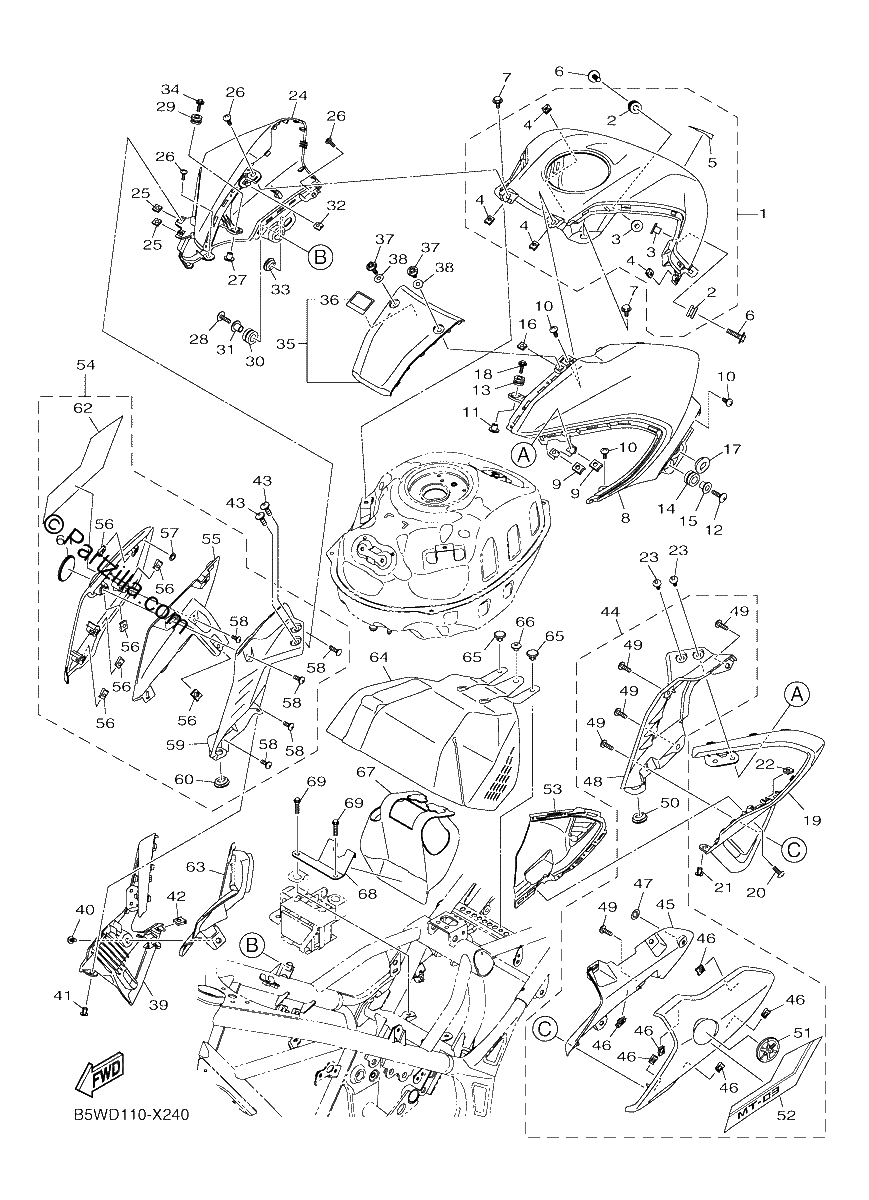

Diagrama de FUEL TANK 2

Repuestos

#1
B9T-XF41D-10-P2
TANK SIDE COVER 1 (DEEP PURPLISH BLUE METALLIC C)
$48.94¢24 472
1
#2
90480-12808-00
GROMMET
$2.71¢1 357
1
#3
90387-06899-00
COLLAR
$2.70¢1 351
1
#4
90183-05807-00
NUT, SPRING
$1.15¢575
1
#5
B04-F4254-F0-00
GRAPHIC, FUEL TANK 7 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$3.51¢1 754
1
#6
90119-06309-00
BOLT, WITH WASHER
$1.90¢949
1
#7
90109-068B2-00
BOLT (B9B1)
$0.45¢224
1
#8
B9T-F4129-00-P0
COVER, TANK SIDE 1 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$16.10¢8 050
1
#9
90183-05807-00
NUT, SPRING
$1.15¢575
1
#10
97702-50016-00
TAPPING SCREW
$2.17¢1 087
1
#11
90387-06899-00
COLLAR
$2.70¢1 351
1
#12
90110-06087-00
BOLT, HEXAGON SOCKET HEAD
$4.13¢2 064
1
#13
90480-12808-00
GROMMET
$2.71¢1 357
1
#14
90480-17007-00
GROMMET
$6.92¢3 461
1
#15
90387-10107-00
COLLAR
$4.98¢2 490
1
#16
90183-05076-00
NUT, SPRING
$2.60¢1 299
1
#17
90480-01559-00
Grommet
$5.27¢2 633
1
#18
90119-05020-00
BOLT, WITH WASHER
$5.86¢2 932
1
#19
B9T-F838N-00-00
DUCT 1
$11.73¢5 865
1
#20
90160-05009-00
SCREW, ROUND TAPPI
$0.47¢236
1
#21
90269-06816-00
RIVET
$1.58¢788
1
#22
90183-05807-00
NUT, SPRING
$1.15¢575
1
#23
90160-05009-00
SCREW, ROUND TAPPI
$0.47¢236
1
#24
B9T-F4139-00-P0
COVER, TANK SIDE 2 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$16.10¢8 050
1
#25
90183-05807-00
NUT, SPRING
$1.15¢575
1
#26
97702-50016-00
TAPPING SCREW
$2.17¢1 087
1
#27
90387-06899-00
COLLAR
$2.70¢1 351
1
#28
90110-06087-00
BOLT, HEXAGON SOCKET HEAD
$4.13¢2 064
1
#29
90480-12808-00
GROMMET
$2.71¢1 357
1
#30
90480-17007-00
GROMMET
$6.92¢3 461
1
#31
90387-10107-00
COLLAR
$4.98¢2 490
1
#32
90183-05076-00
NUT, SPRING
$2.60¢1 299
1
#33
90480-01559-00
Grommet
$5.27¢2 633
1
#34
90119-05020-00
BOLT, WITH WASHER
$5.86¢2 932
1
#35
B9T-XF17D-80-P0
COVER, TOP (DEEP PURPLISH BLUE METALLIC C)
$13.89¢6 946
1
#36
1TP-2118K-A2-00
. LABEL, CAUTION
$6.59¢3 295
1
#37
90111-05056-00
BOLT,HEX. SOCKET B
$2.39¢1 196
1
#38
90202-05180-00
WASHER, PLATE
$7.05¢3 525
1
#39
B9T-F838R-00-00
DUCT 2
$11.73¢5 865
1
#40
90160-05009-00
SCREW, ROUND TAPPI
$0.47¢236
1
#41
90269-06816-00
RIVET
$1.58¢788
1
#42
90183-05807-00
NUT, SPRING
$1.15¢575
1
#43
90160-05009-00
SCREW, ROUND TAPPI
$0.47¢236
1
#44
B9T-XF137-00-P6
SCOOP & GUIDE AIR 1 (DEEP PURPLISH BLUE METALLIC C)
$64.38¢32 188
1
#45
B9T-F836K-00-00
PANEL, INNER 1
$11.26¢5 629
1
#46
90183-05807-00
NUT, SPRING
$1.15¢575
1
#47
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#48
B9T-F137K-00-00
GUIDE, AIR 3
$11.26¢5 629
1
#49
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#50
90480-01559-00
Grommet
$5.27¢2 633
1
#51
1WD-F413B-01-00
TUNING FORK MARK, 3D
$9.72¢4 859
1
#52
BEV-F8391-00-00
GRAPHIC 1 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$8.57¢4 284
1
#53
B9T-F837N-00-00
GRILL, AIR INTAKE
$9.12¢4 560
1
#54
B9T-XF13A-00-P6
SCOOP & GUIDE AIR 2 (DEEP PURPLISH BLUE METALLIC C)
$64.38¢32 188
1
#55
B9T-F836L-00-00
PANEL, INNER 2
$11.26¢5 629
1
#56
90183-05807-00
NUT, SPRING
$1.15¢575
1
#57
90183-05M02-00
NUT, SPRING
$0.46¢230
1
#58
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#59
B9T-F137L-00-00
GUIDE, AIR 4
$11.26¢5 629
1
#60
90480-01559-00
Grommet
$5.27¢2 633
1
#61
1WD-F413B-01-00
TUNING FORK MARK, 3D
$9.72¢4 859
1
#62
BEV-F8392-00-00
GRAPHIC 2 (DEEP PURPLISH BLUE METALLIC C) *{UR FOR DPBMC}*
$8.57¢4 284
1
#63
B9T-F837R-00-00
GRILL, AIR INTAKE
$9.91¢4 956
1
#64
B04-E449E-00-00
COVER, AIR CLEANER
$29.32¢14 663
1
#65
90269-07076-00
RIVET,SPEC'L SHAPE
$6.55¢3 278
1
#66
90269-09001-00
RIVET
$1.79¢897
1
#67
B04-F1642-00-00
GUARD, FLAP
No Disponible
1
#68
B04-F1533-00-00
STAY, FLAP
$6.90¢3 450
1
#69
95022-06025-00
BOLT, FLANGE
$1.61¢805
