CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

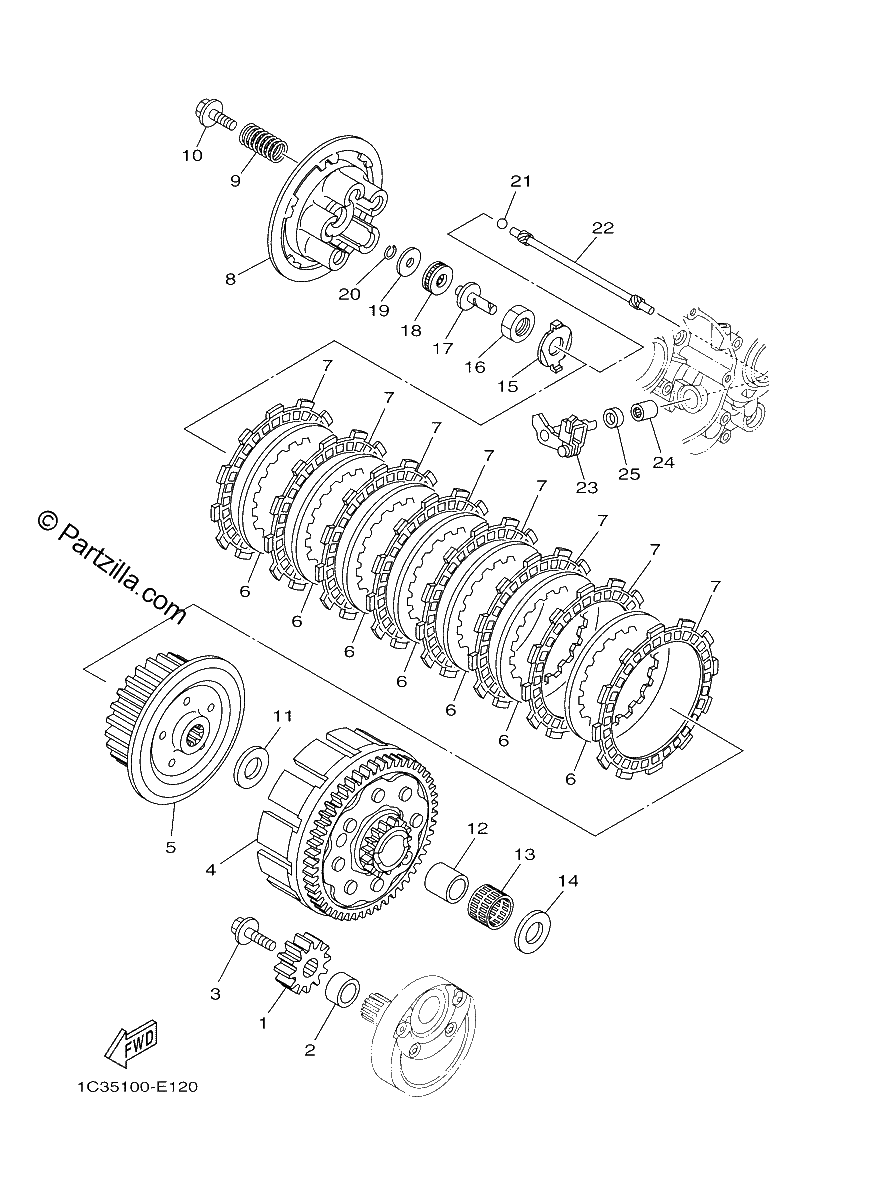

Diagrama de CLUTCH

Repuestos

#1
1C3-16111-00-00
GEAR, PRIMARY DRIVE
$65.26¢32 631
1
#2
90387-172K2-00
Collar
$22.80¢11 400
1
#3
90105-08071-00
Bolt, Flange
$5.04¢2 519
1
#4
1C3-16150-00-00
PRIMARY DRIVEN GEAR
$314.93¢157 463
1
#5
5NY-16371-00-00
BOSS, CLUTCH
$95.25¢47 625
1
#6
3XJ-16324-01-00
PLATE, CLUTCH 1
$14.60¢7 300
1
#7
3XJ-16321-00-00
PLATE, FRICTION
$23.64¢11 819
1
#8
5HD-16351-00-00
PLATE, PRESSURE 1
$55.79¢27 894
1
#9
90501-23598-00
SPRING, COMPRESSION
$6.76¢3 381
1
#10
90159-06016-00
SCREW, WITH WASHER
$3.34¢1 669
1
#11
90201-20611-00
WASHER, PLATE
$8.69¢4 344
1
#12
1C3-16181-00-00
SPACER 1
$21.97¢10 987
1
#13
93310-22539-00
BEARING
$41.01¢20 506
1
#14
90201-20611-00
WASHER, PLATE
$8.69¢4 344
1
#15
90215-16289-00
WASHER, LOCK
$7.30¢3 650
1
#16
90170-16326-00
NUT
$13.11¢6 556
1
#17
5NL-16356-00-00
ROD, PUSH 1
$52.95¢26 475
1
#18
93340-21008-00
BEARING
$29.30¢14 650
1
#19
90201-080H1-00
WASHER, PLATE
$4.56¢2 281
1
#20
93440-07182-00
CIRCLIP
$3.74¢1 869
1
#21
93511-32027-00
BALL
$7.34¢3 669
1
#22
1C3-16357-11-00
ROD, PUSH 2 (replaces 1C3-16357-10-00)
$28.46¢14 231
1
#23
1C3-16380-00-00
PUSH LEVER ASSY
$51.06¢25 531
1
#24
93315-11040-00
BEARING,CYL.(50M)
$39.50¢19 750
1
#25
93102-10008-00
Oil Seal
$5.54¢2 769
1
