EXHAUST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

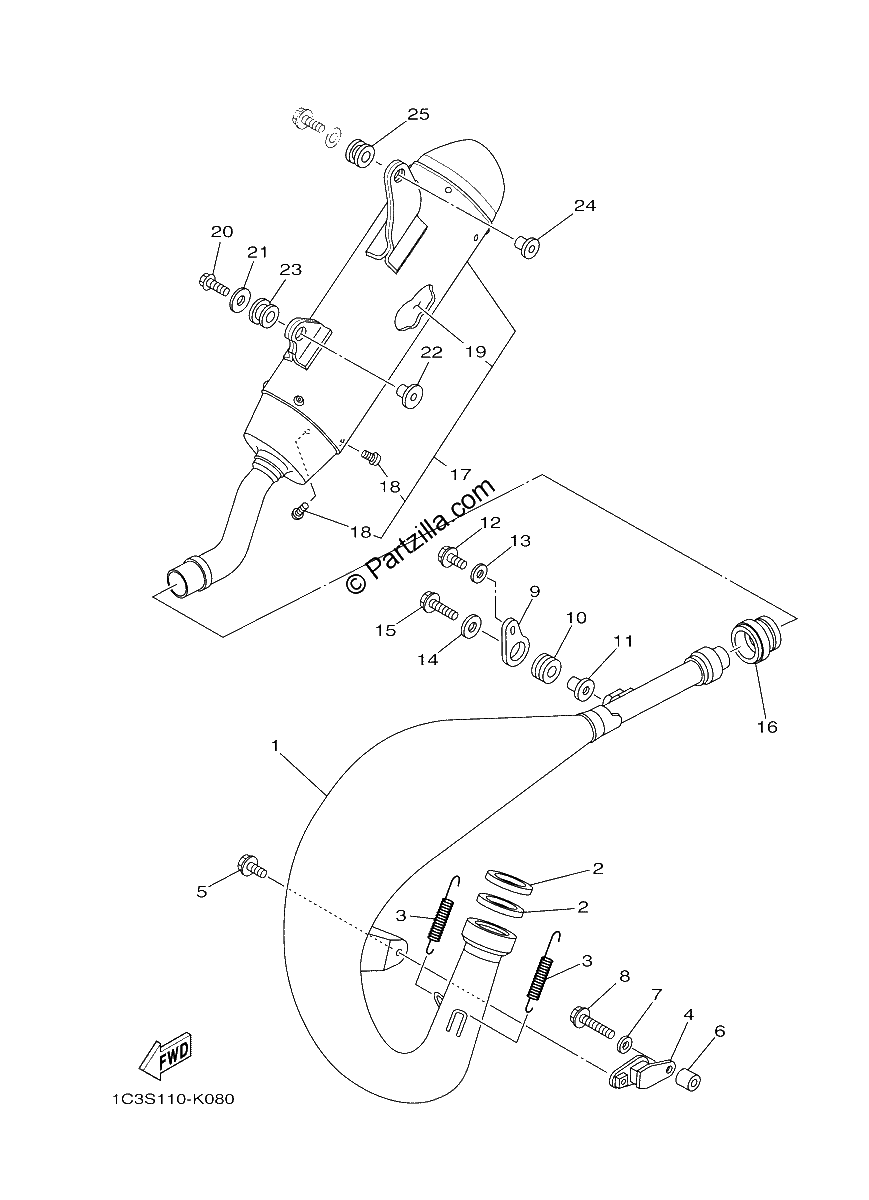

Diagrama de EXHAUST

Repuestos

#1
1C3-14610-00-00
EXHAUST PIPE ASSY 1
$327.85¢163 927
1
#2
5MV-14642-00-00
SEAL, EXHAUST
$19.77¢9 884
1
#3
90506-20018-00
SPRING, TENSION
$8.57¢4 284
1
#4
565-14771-01-00
STAY, MUFFLER 1
$18.29¢9 143
1
#5
95022-06012-00
BOLT, FLANGE
$3.29¢1 644
1
#6
1C3-14763-00-00
SPACER
$6.05¢3 024
1
#7
90201-06077-00
WASHER, PLATE
$5.30¢2 651
1
#8
95022-06025-00
BOLT, FLANGE
$1.61¢805
1
#9
5CU-14771-01-00
STAY, MUFFLER 1
$31.13¢15 565
1
#10
90480-16561-00
GROMMET
$16.09¢8 044
1
#11
90387-063G3-00
COLLAR (56R)
$6.88¢3 439
1
#12
95022-06014-00
BOLT, FLANGE
$2.89¢1 443
1
#13
90201-06078-00
WASHER, PLATE
$6.00¢3 001
1
#14
90201-06033-00
WASHER, PLATE
$3.00¢1 501
1
#15
95022-06025-00
BOLT, FLANGE
$1.61¢805
1
#16
4JY-14615-00-00
JOINT, EXHAUST 1
$57.40¢28 698
1
#17
1C3-14753-00-00
SILENCER, EXHAUST
$525.48¢262 741
1
#18
92012-06010-00
BOLT, BUTTON HEAD
$2.68¢1 340
1
#19
1C3-1469A-00-00
FIBER
$182.01¢91 005
1
#20
95022-06030-00
BOLT, FLANGE
$1.54¢771
1
#21
90201-06086-00
WASHER, PLATE
$6.43¢3 214
1
#22
90387-06121-00
COLLAR
$8.69¢4 347
1
#23
90480-17004-00
GROMMET
$7.59¢3 795
1
#24
90387-06039-00
COLLAR
$7.87¢3 933
1
#25
90480-16404-00
GROMMET
$6.75¢3 375
1
