INTAKE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

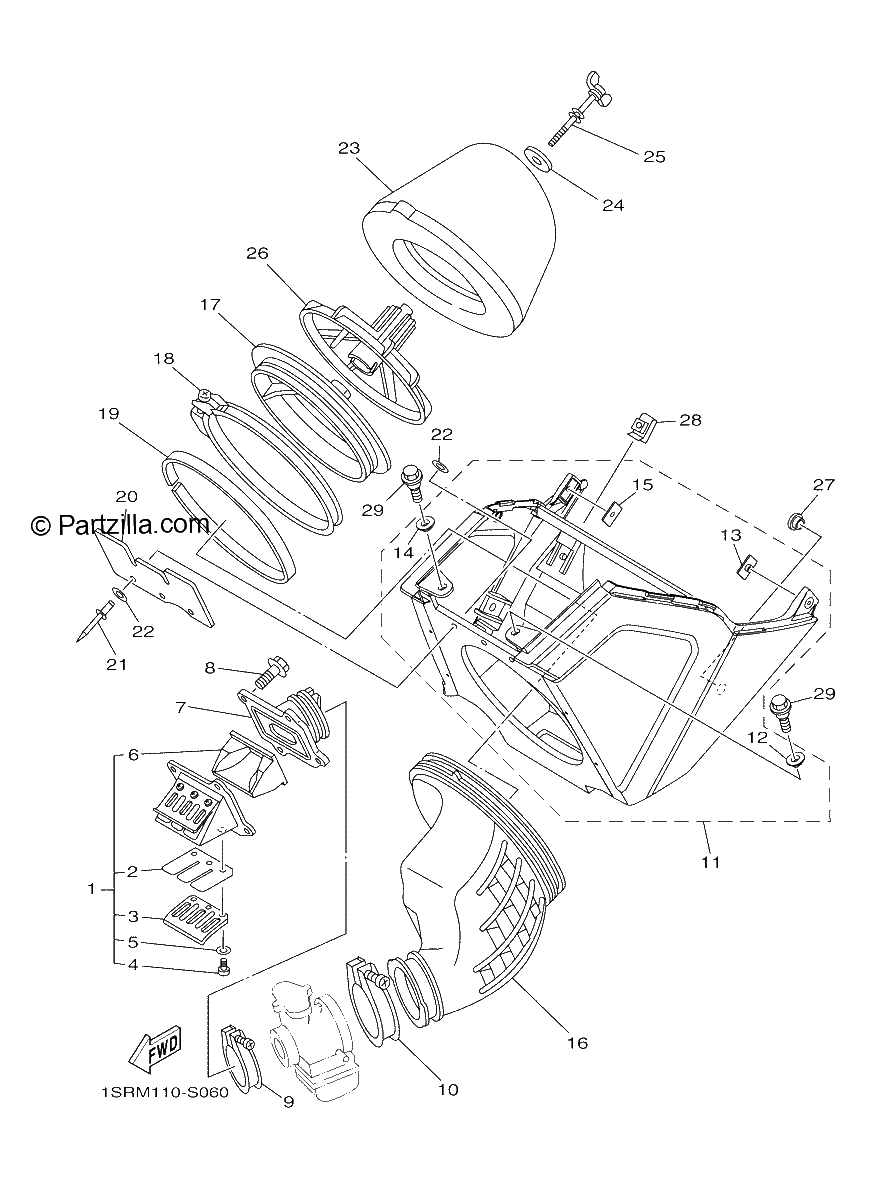

Diagrama de INTAKE

Repuestos

#1
1C3-13610-20-00
REED VALVE ASSY
$386.31¢193 156
1
#2
5UN-13613-00-00
REED, VALVE
$135.04¢67 519
1
#3
5MV-13616-10-00
STOPPER, REED VALVE
$8.58¢4 288
1
#4
98502-03006-00
. SCREW, PAN HEAD
$8.24¢4 119
1
#5
92902-03100-00
. WASHER
$7.34¢3 669
1
#6
1C3-13625-10-00
SPACER, REED VALVE
$53.49¢26 744
1
#7
1C3-13565-00-00
JOINT, CARBURETOR
$73.76¢36 881
1
#8
95022-06020-00
BOLT, FLANGE
$3.96¢1 981
1
#9
90450-54007-00
HOSE CLAMP ASSY
$14.64¢7 319
1
#10
90450-70002-00
HOSE CLAMP ASSY
$21.59¢10 794
1
#11
1SS-14401-00-00
AIR CLEANER CASE ASSY
$237.13¢118 563
1
#12
17D-14449-00-00
Collar
$8.03¢4 013
1
#13
5XE-21635-10-00
NUT, REAR FENDER
$15.11¢7 556
1
#14
17D-14449-00-00
Collar
$8.03¢4 013
1
#15
5XE-21635-10-00
NUT, REAR FENDER
$15.11¢7 556
1
#16
1C3-14453-11-00
JOINT, AIR CLEANER 1
$77.79¢38 894
1
#17
5NY-14459-00-00
HOLDER, GUIDE
$38.42¢19 213
1
#18
5NY-14455-20-00
BAND
$41.68¢20 838
1
#19
5NY-14442-00-00
SPACER
$24.33¢12 163
1
#20
5NY-14417-01-00
COVER 1
$16.39¢8 194
1
#21
90267-32070-00
RIVET, BLIND
$2.65¢1 325
1
#22
90201-03313-00
WASHER, PLATE
$7.63¢3 813
1
#23
4XM-14451-01-00
ELEMENT, AIR CLEANER
$44.63¢22 313
1
#24
90209-06096-00
WASHER
$7.81¢3 906
1
#25
90122-06005-00
BOLT, WING
$8.19¢4 094
1
#26
3JD-14458-01-00
GUIDE
$75.61¢37 806
1
#27
90480-10M28-00
GROMMET
$3.57¢1 787
1
#28
90183-06023-00
NUT,SPRING
$8.85¢4 425
1
#29
90105-06170-00
BOLT, FLANGE
$5.05¢2 525
1
