EXHAUST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

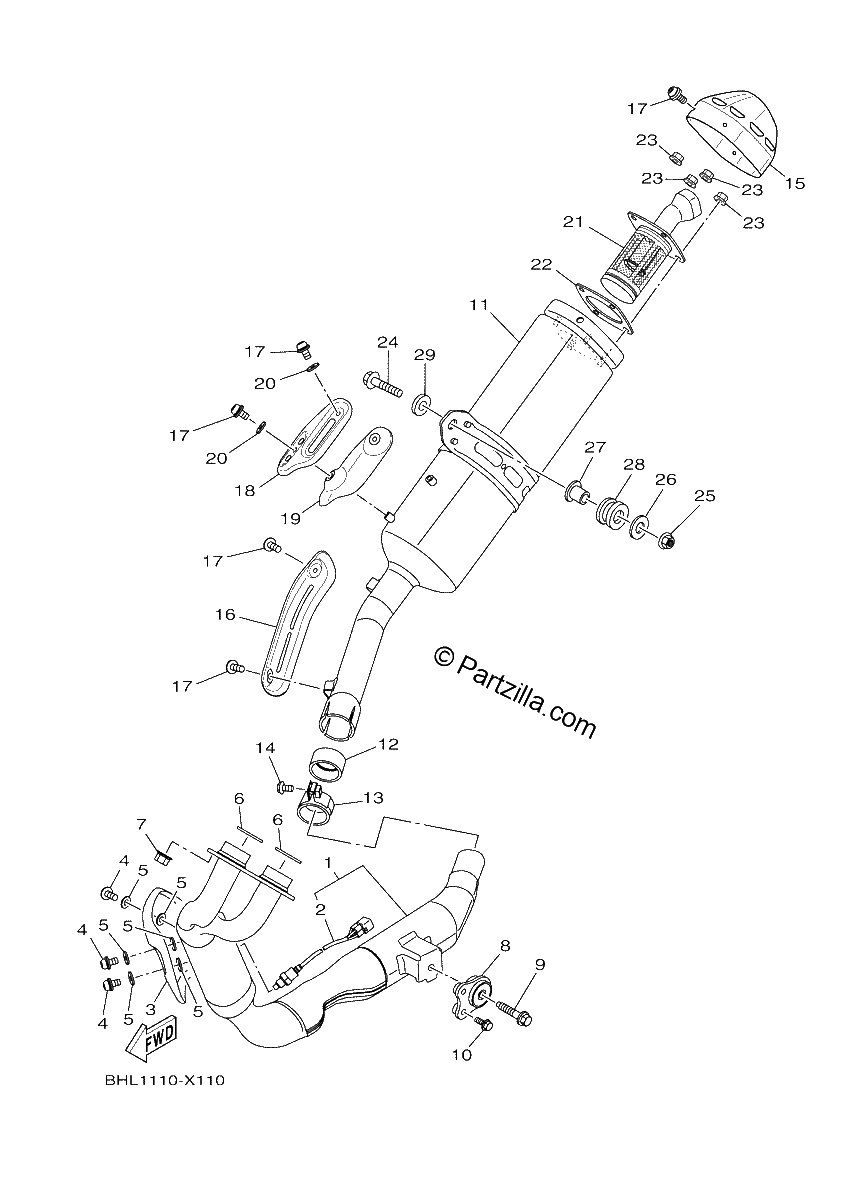

Diagrama de EXHAUST

Repuestos

#1
BHL-14610-00-00
EXHAUST PIPE ASSY 1
$1162.64¢581 319
1
#2
2CR-8592A-20-00
SENSOR, OXYGEN (replaces 2CR-8592A-10-00)
$255.13¢127 564
1
#3
BEH-E460B-00-00
PROTECTOR, MUFFLER
$127.63¢63 814
1
#4
90111-06187-00
BOLT, HEXAGON SOCKET BUTTON
$2.16¢1 081
1
#5
4BD-14766-00-00
WASHER,PROTECTER (replaces 4BD-E4766-00-00)
$6.01¢3 007
1
#6
3YF-14613-01-00
GASKET,EXST PIPE
$12.71¢6 354
1
#7
90179-08410-00
NUT
$5.51¢2 754
1
#8
BW3-21445-00-00
STAY, MUFFLER 1
$55.29¢27 646
1
#9
90105-08164-00
Bolt, Flange
$6.88¢3 439
1
#10
95814-06020-00
BOLT, FLANGE
$7.30¢3 651
1
#11
BHL-14711-01-00
MUFFLER 1
$964.84¢482 419
1
#12
B71-14755-00-00
GASKET, SILENCER
$14.66¢7 331
1
#13
5S7-14715-00-00
BAND, MUFFLER
$53.34¢26 668
1
#14
91314-08040-00
BOLT (3JP)
$5.75¢2 875
1
#15
BW3-E4799-00-00
CAP
$105.86¢52 929
1
#16
BW3-E471C-00-00
PROTECTOR ASSY 1
$90.48¢45 241
1
#17
90111-06060-00
BOLT HEX. SOCKET BUTTON
$4.22¢2 110
1
#18
BW3-E472C-00-00
PROTECTOR ASSY., 2
$92.24¢46 121
1
#19
BW3-E4738-00-00
PROTECTOR, MUFFLER 3
$91.83¢45 914
1
#20
4BD-14766-00-00
WASHER,PROTECTER (replaces 4BD-E4766-00-00)
$6.01¢3 007
1
#21
BAU-14780-00-00
SPARK ARRESTER ASSY
$227.39¢113 695
1
#22
BAU-14755-00-00
GASKET, SILENCER
$22.40¢11 201
1
#23
95780-06500-00
NUT, FLANGE
$2.16¢1 081
1
#24
90111-10007-00
BOLT, HEX. SOCKET BUTTON
$5.98¢2 990
1
#25
95604-10200-00
NUT, SELF-LOCKING
$8.75¢4 376
1
#26
90201-10043-00
WASHER, plate
$2.05¢1 023
1
#27
90387-10636-00
COLLAR
$12.81¢6 406
1
#28
36Y-27424-01-00
DAMPER, FOOTREST 2
$17.19¢8 596
1
#29
BW3-14779-00-00
COLLAR
$23.10¢11 552
1
